This project I use controller SY408 and program software LEDplayer3.

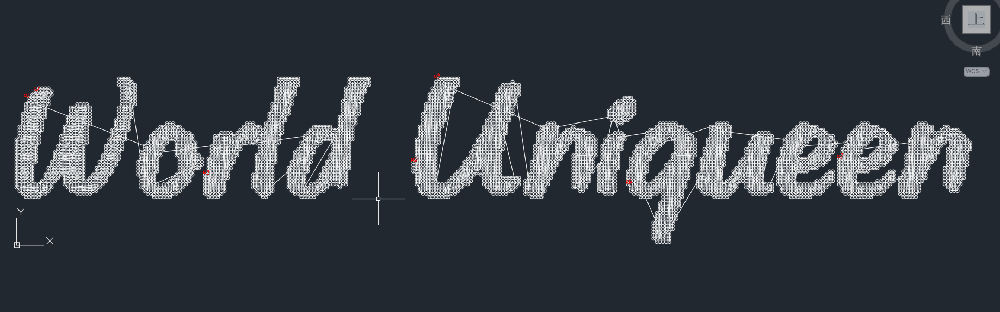

1. Make layout with AutodeskCAD，or if you can not use AutodeskCAD, you can use LEDedit to make led map, then output dxf file.

note: when you make the layout, make the edge LED at the head, like port 1, if over than port1, then use port2.

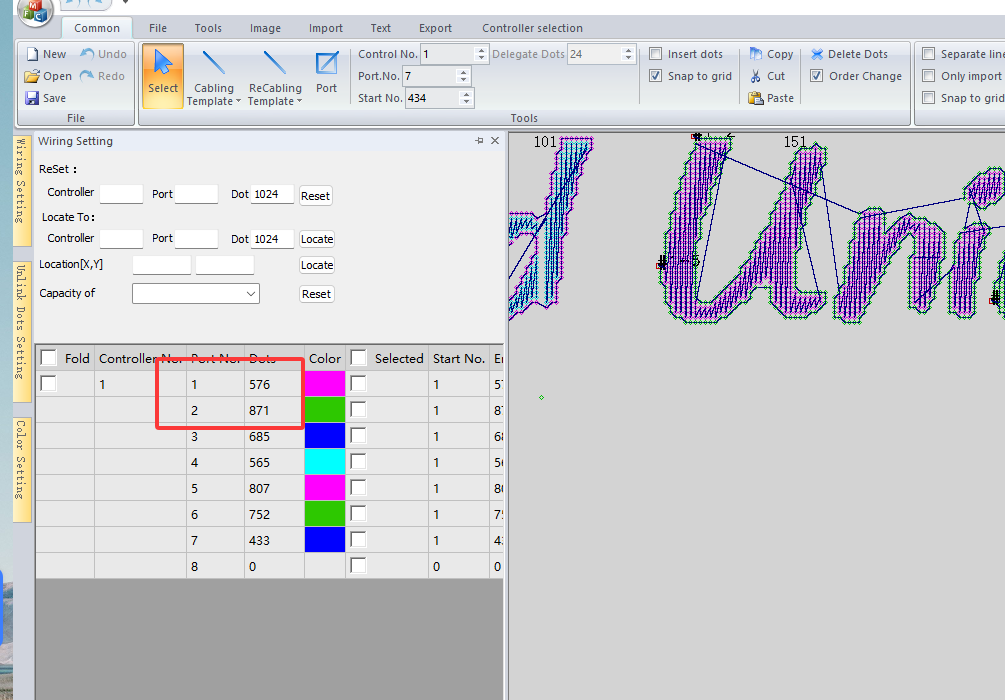

2. Create a new project and import the layout to LEDplayer3, check the LED quantity of border. like this project:

the edge take the first 2 ports,

port 1: 578 pixel

port 2: 871 pixel

total 1449 pixel

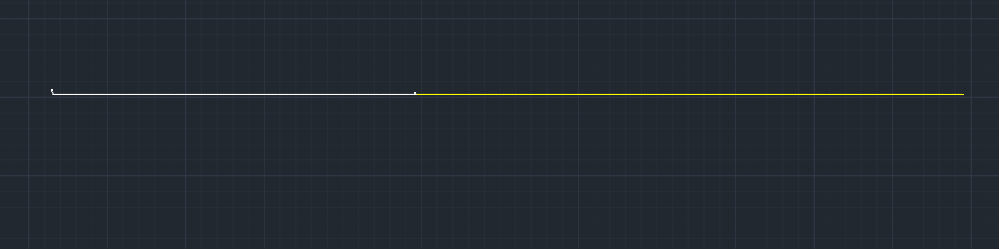

3.Make a new layout, with port1 578 pixel, port2 871 pixel, and all the LED continue in one line

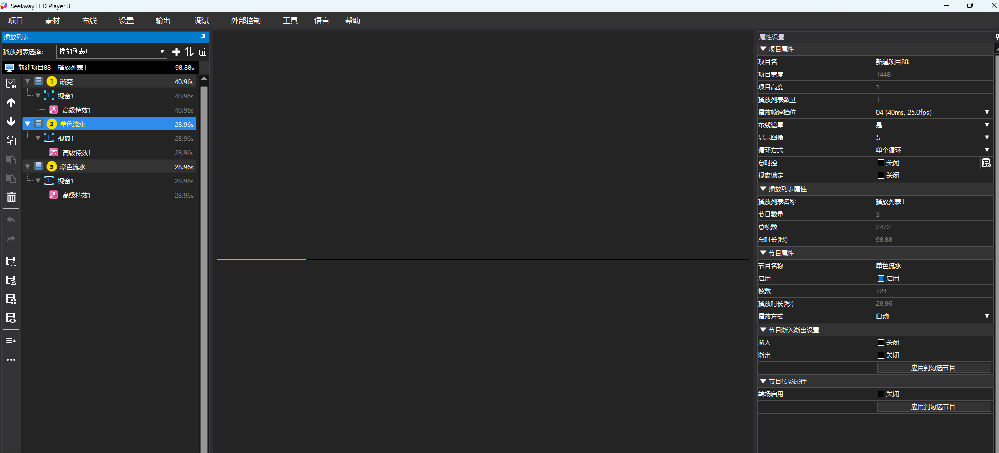

4. Create another new project, import the line layout, create effect to this project, like waterflow effect, we will use these effect to transfer to border waterflow effect.

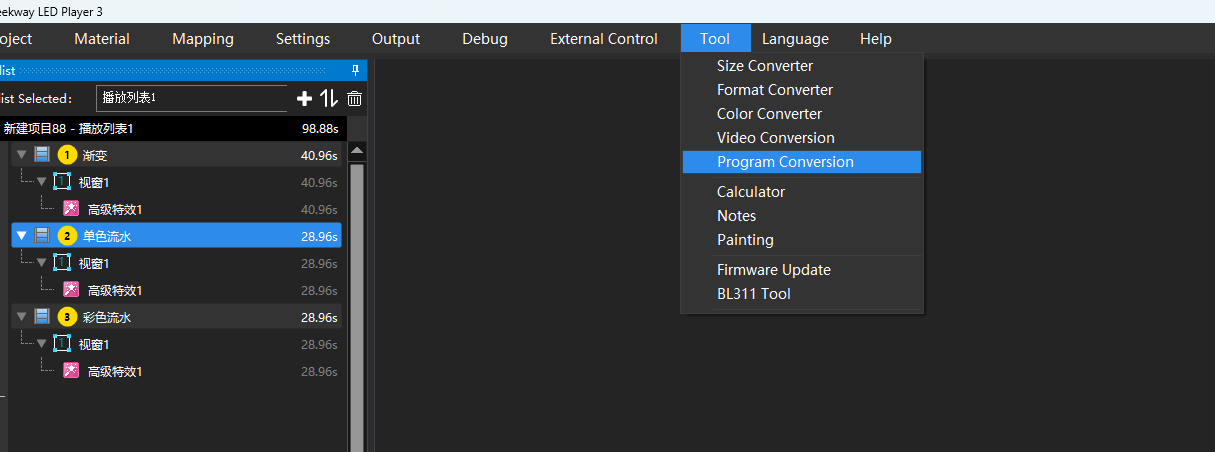

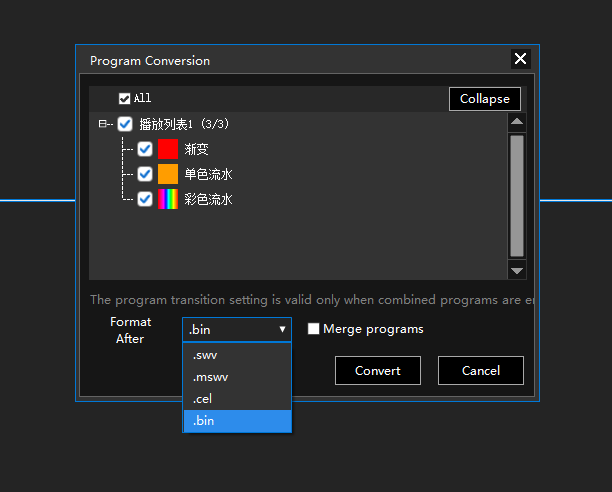

5. transfer these effect to *.bin file, we will use the *.bin files as effect file later.

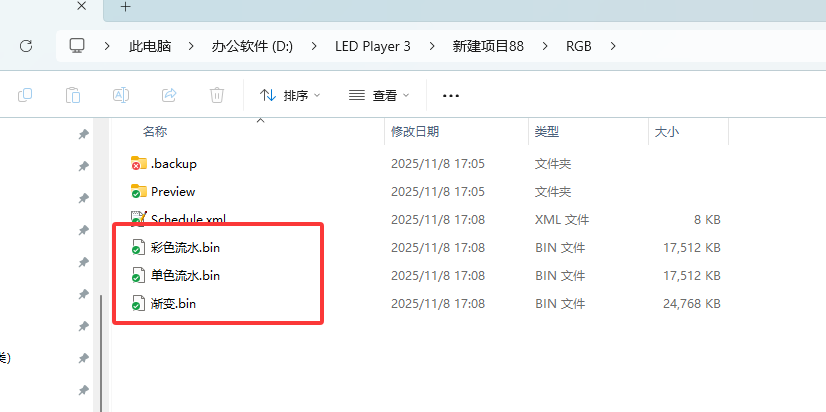

you can find the *.bin files in the project floder, RGB

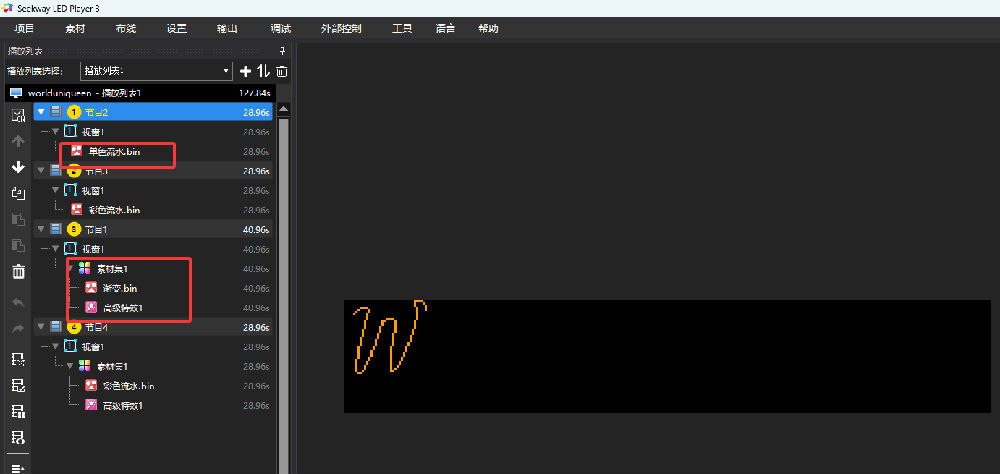

6. Open the first project with whole LEDs,create effect, and insert the *.bin file.

7. We can double click the *.bin file to add another layout, make them run together, to make mixed effect.
