The LED program software LEDplayer3 is free software for making LED pattern effect file, compatible with SY408， SY418, SN510， EN408, EN508， SW201, SW301U,etc.

Following I will show you have to make sample project.

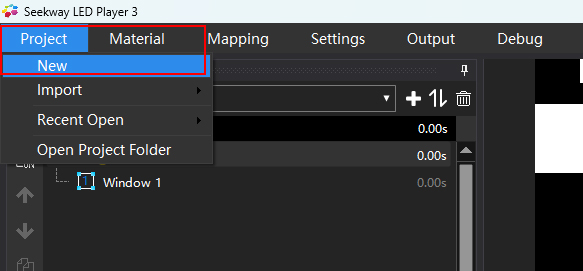

1. Create new project:

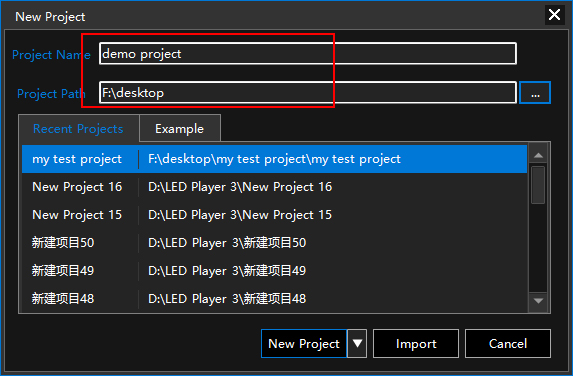

2.Set project name and store folder

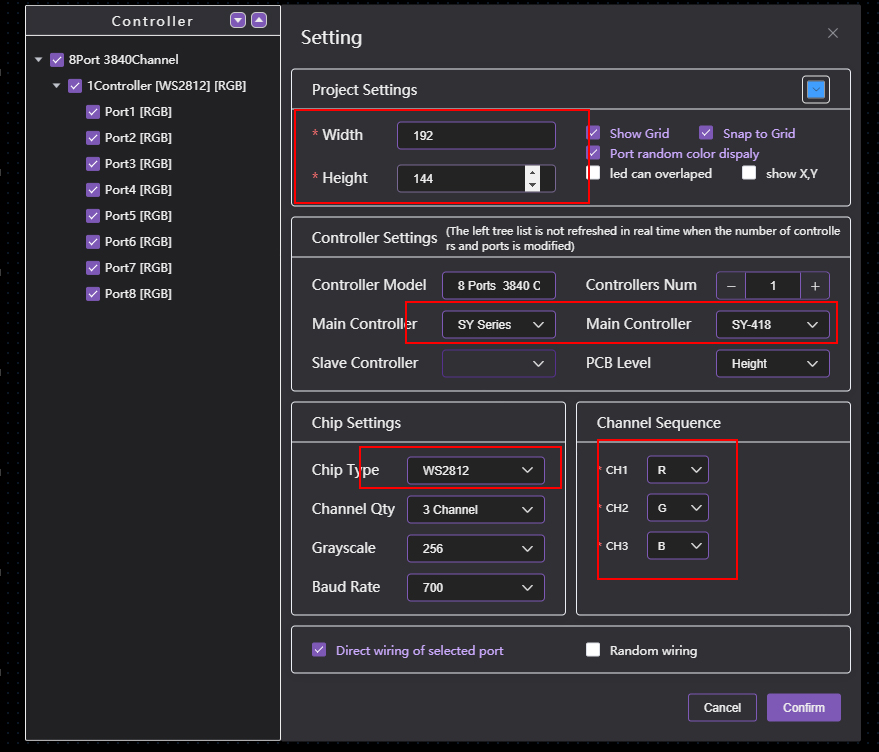

3. Set project max size, controller model, IC type and each channel color(color order)

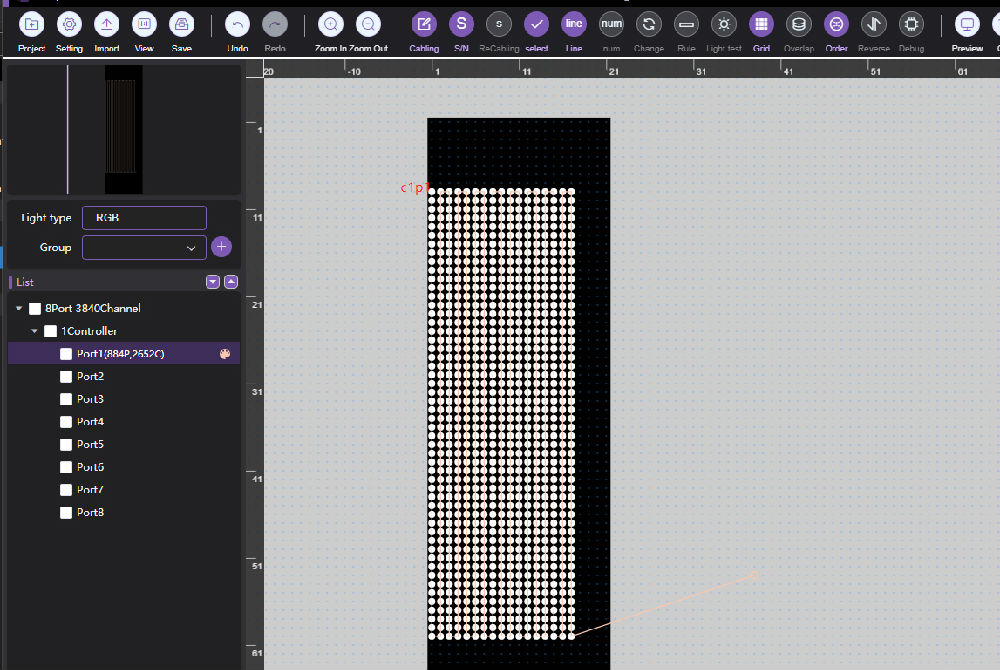

4. Make LED layout, and save it when close the maptool window

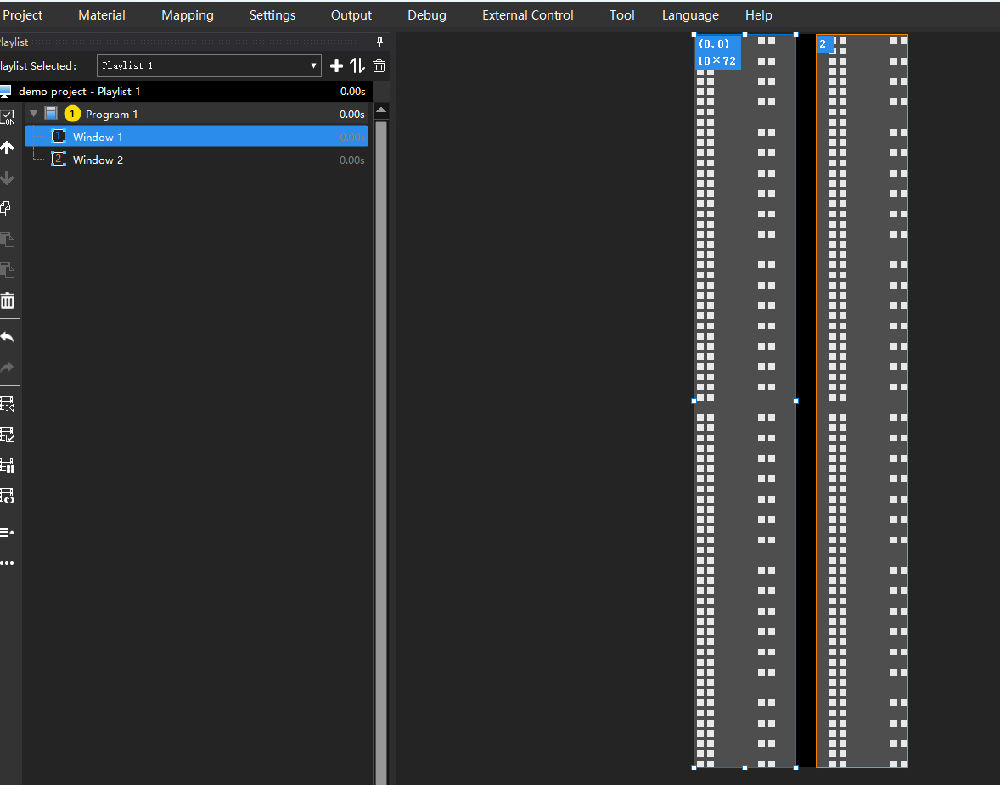

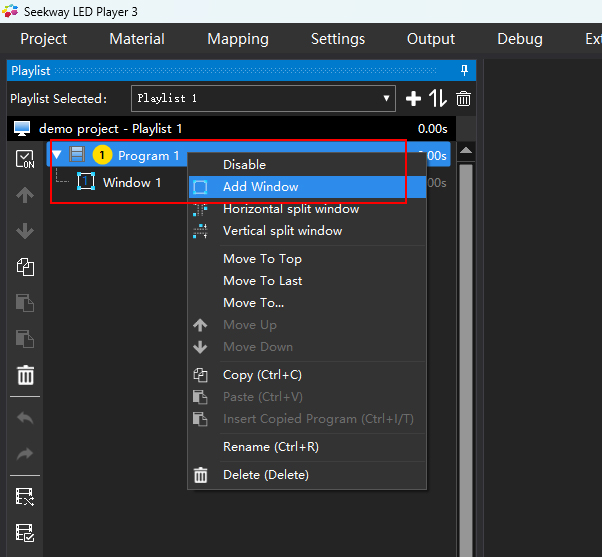

5. manage windows, if needed, you can right click project name to add more windows to separate your light, to display different pattern at the same time.

6.right click windows name to add effect for every windows.

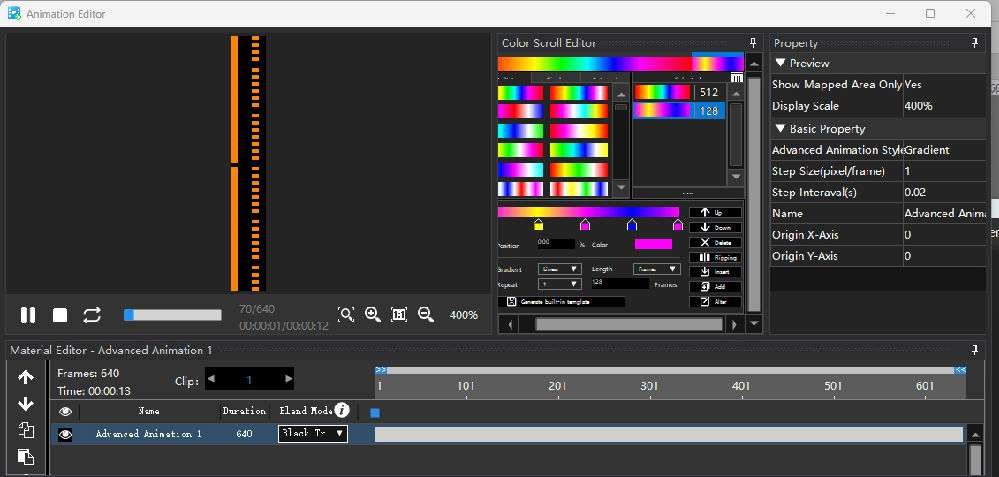

7. add patterns for selected windows, and save it when close the effect editing windows.

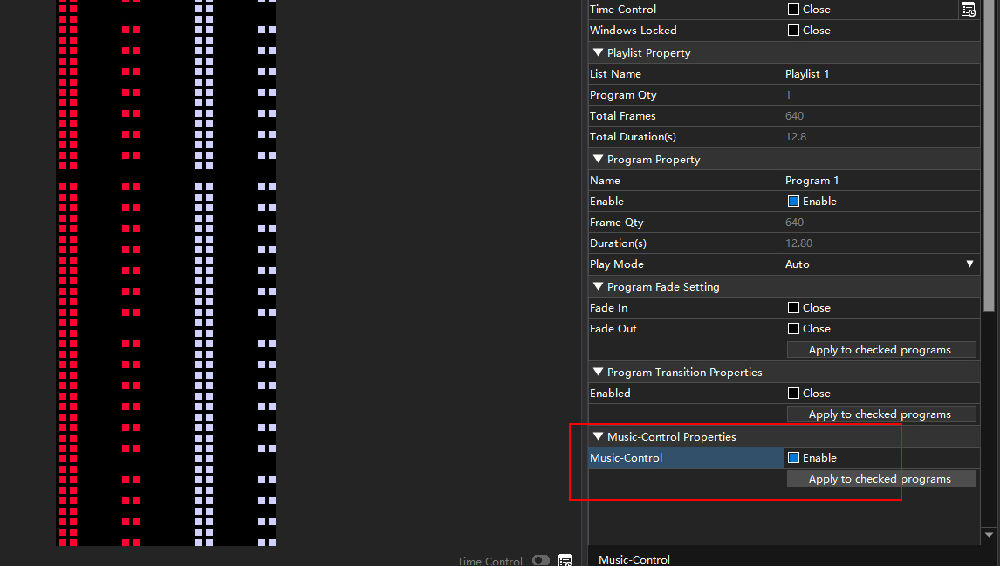

8. if you want to make the program auto play according to music rhythm, you should active the music control function at the bottom right, in the feature sheet.

9. you can alse insert built-in patterns quickly to your program list.

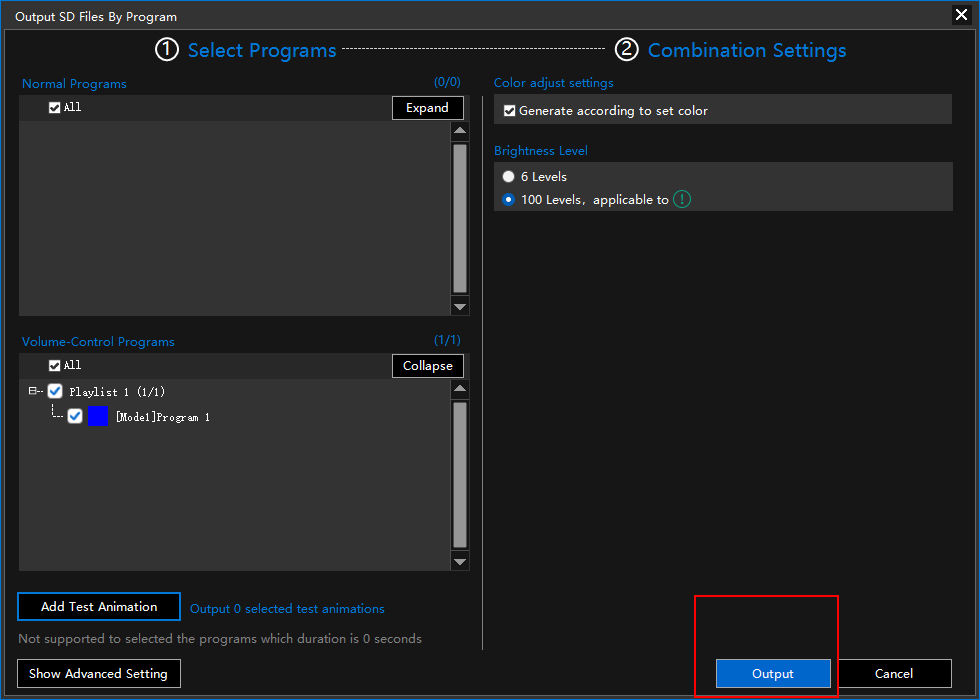

10. output SD card file, always keep the suggest options.

11. copy the file to SD card, if there is only one controller is used in your project, you can insert your SD card to computer, then click to copy the file by software:

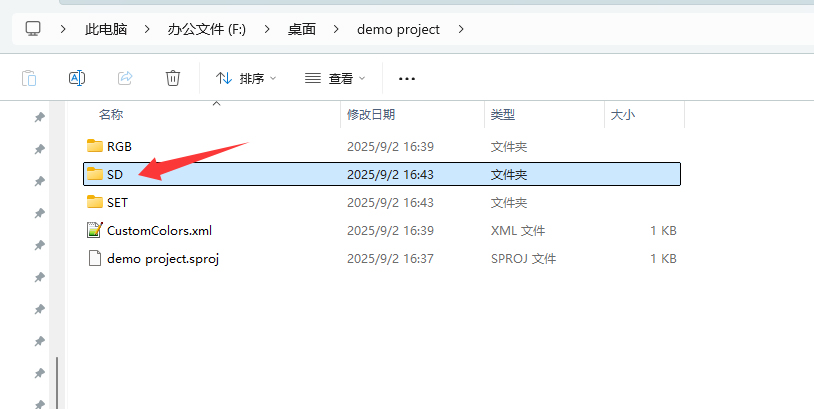

if you use more than one contrller, it should output more than one SD card file, please open project folder, and find SD card folder, and manually copy the SD card file to your SD card.

Every controller should have one SD card file.

* and make sure you format your SD card before you copy the file to it, every time!

it's all work to make SD card file with LEDplayer3, you may find more patterns in using it!
