Software needed:

LEDmagic

Autodesk CAD

Adobe Animate

the project:

it is double sides ad light box,

there is 146 dots outside and 68 dots inside,

one side use 2 ports, total 4 ports,

the signal input from center left, to clockwise,

effect is blue light flow from center top, to down, then merge at the center buttom,

inner light and outside come to the end at the same time,

then flash 3 times,

each flash keep 0.5 second.

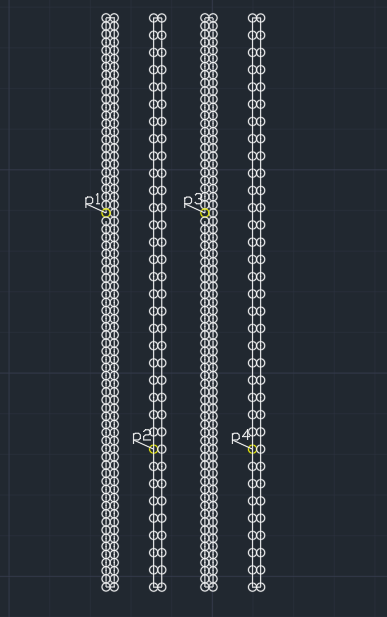

Fist we make layout file with Autodesk CAD,

as customer just need water flow effect, we make the lights in line shape.

and custtomer need outside light and inside light come to the end at the same time, outside light is loner than inside, so we make it higher density,

the save as *.dxf file.

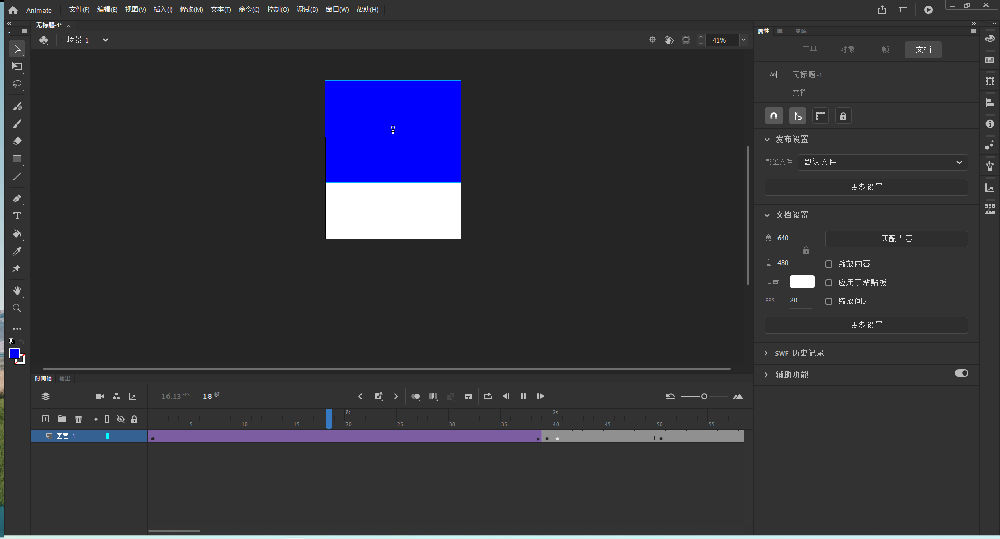

then we make the effect with Animate:

Output file to *.swf file.

now we get the main files:

Now we make program with LEDmagic,

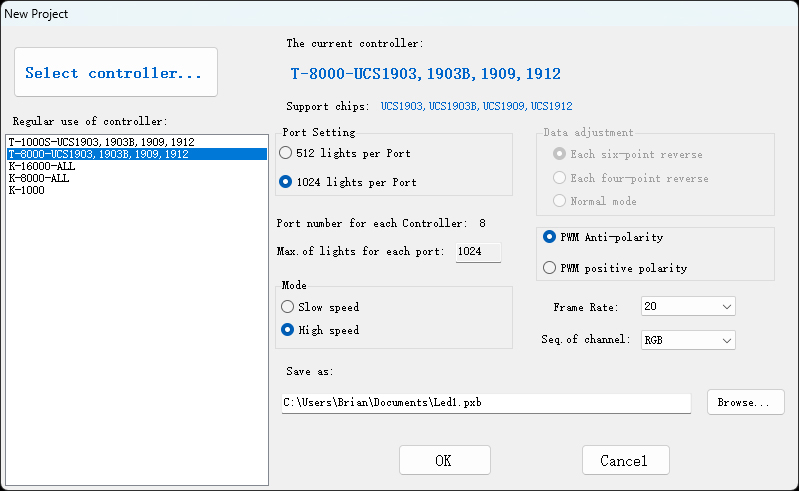

1. create new project ,choose controller type T-8000-UCS1903, set 1024 lights per port, and Seq. of channel(RGB order),

then set project save folder.

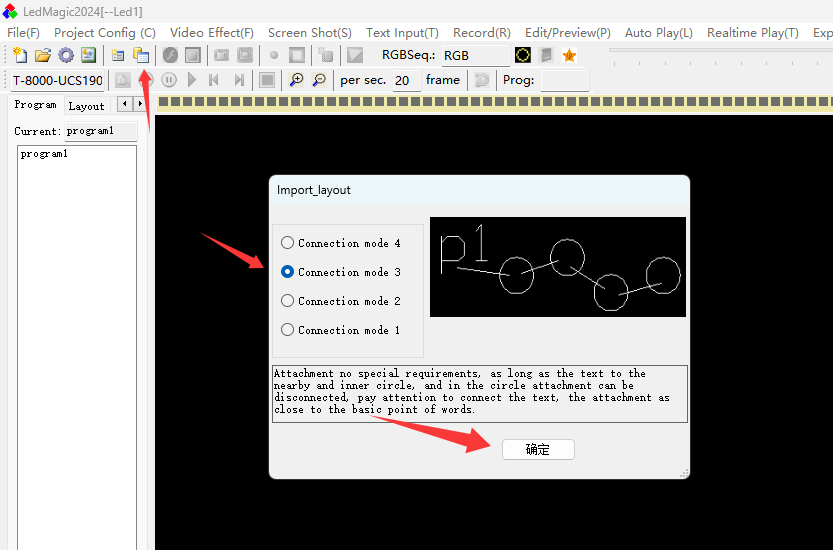

import layout file:

you can check the using port:

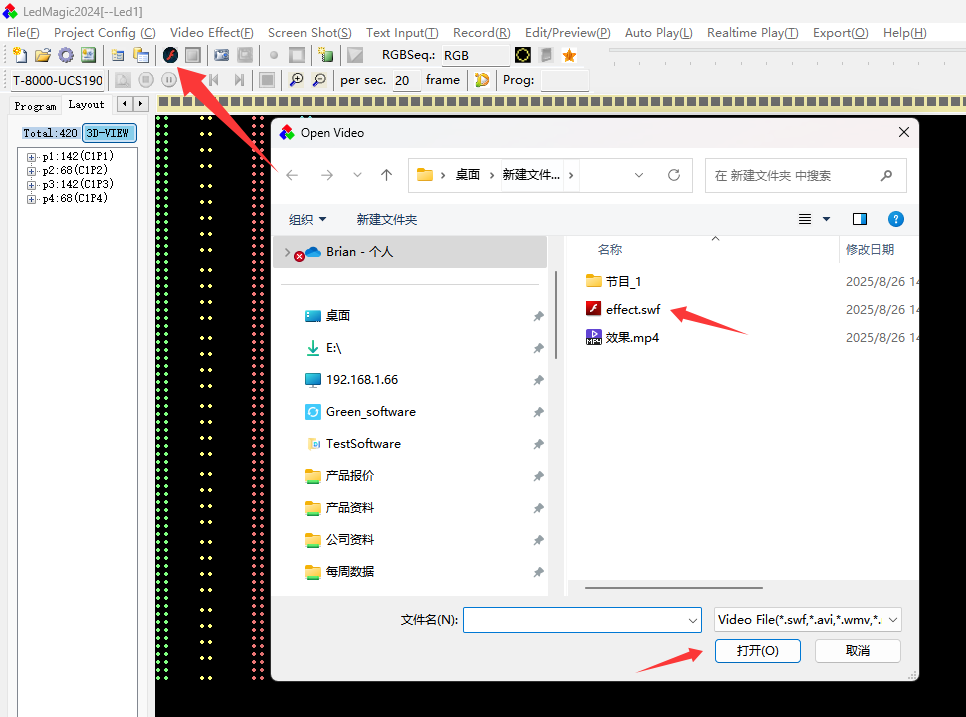

Import effect file *.swf:

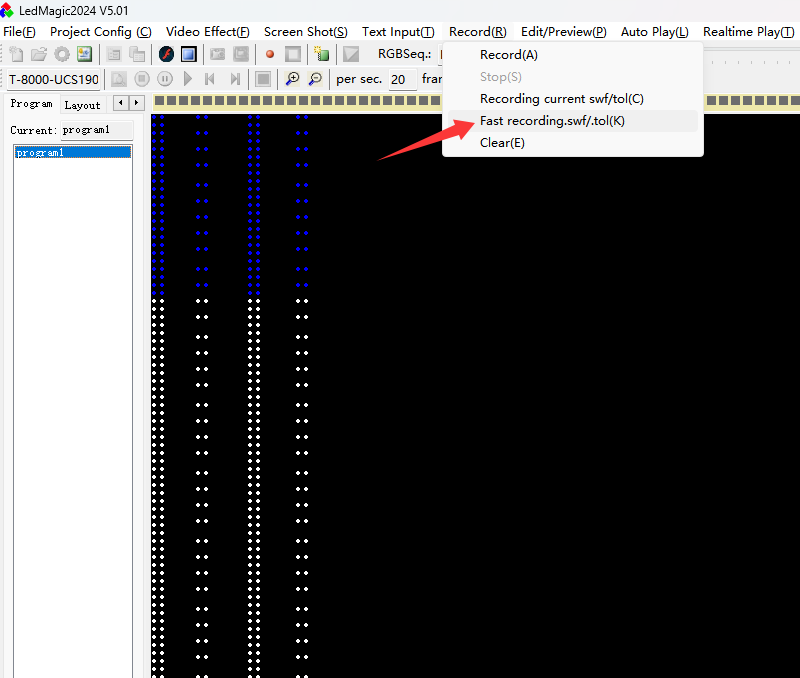

use fast recording function to record the effect file to software:

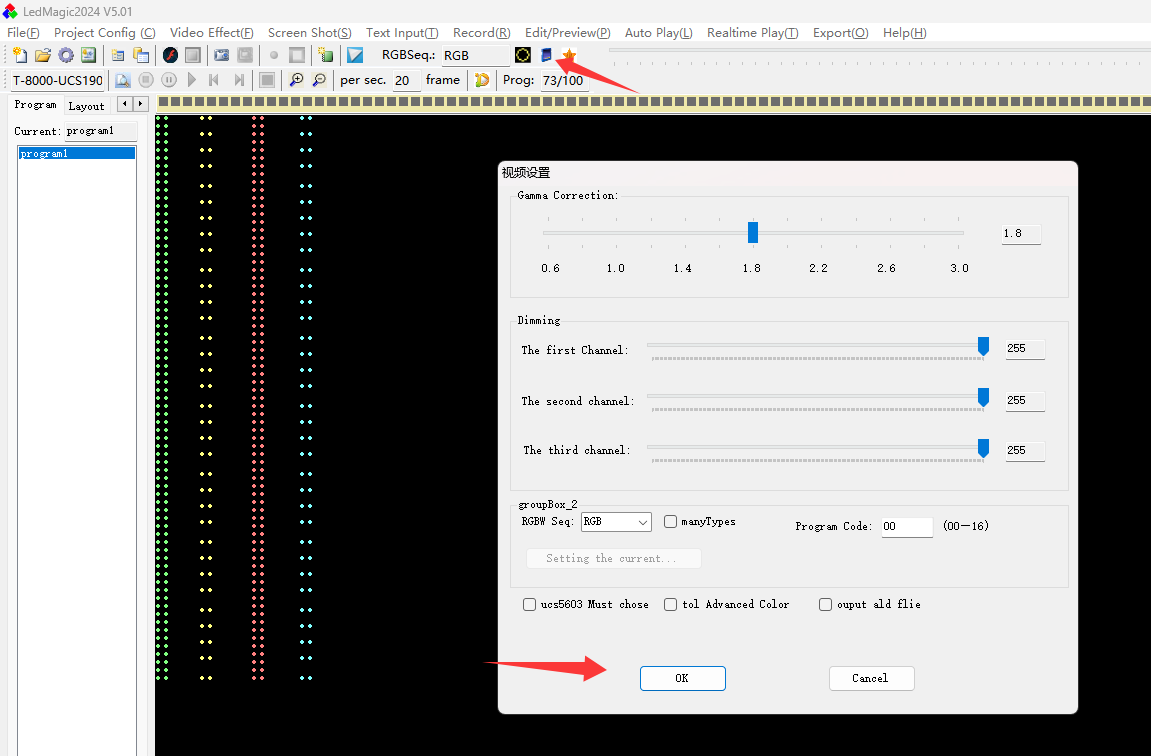

output SD card file:
