*This type controller may be looks same from many seller, but function or setting is not same, this guide is only suit for the controller from us, thanks.

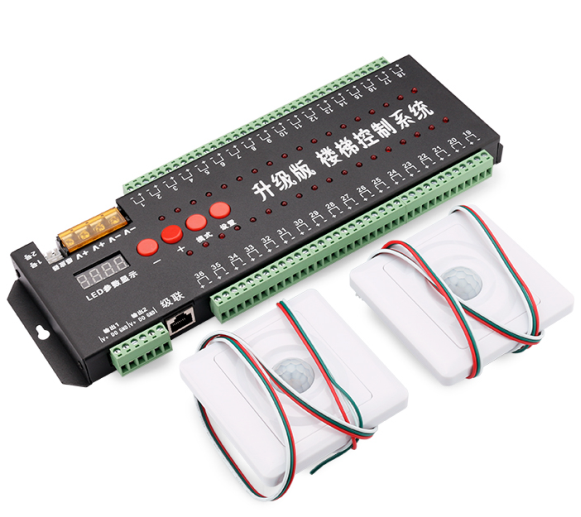

There is one main controller, and two metion sensor in the package.

Please connect the controller like bellow:

Connect the sensors to  white port ,then put one sensor on upstair, one on downstair,

Connect your LED light to 1-36 channels,

Connect power supply to power input port,
Set it as bellow, thanks.

The * in the below words instead of number,please know, thanks.

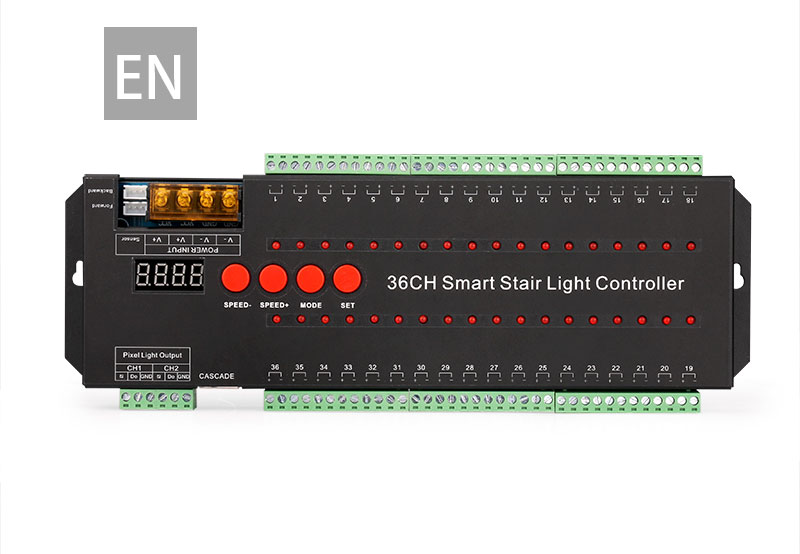

1.    When you power on the controller, it will display **-L, it is the speed of horse racing light, which shouldbe installed on the handrail or wall, you can press SPEED +, or SPEED – to adjustits running speed easily.

2.    If you want to change more effect,press set to choose options, please.

3.    When you press SET, it displayL***, it is the pixel of horse, press SPEED+/ SPEED- to adjust. If you use20IC/m (60LEDs/m) strip light, it can drive about 40m long.

4.    When it display LP**, it is colorof horse racing light, press SPEED+/ SPEED- to adjust, there is white- red-green- blue- yellow- purple- cyan, and auto changing available to choose.

5.    When it display LH**, it is speedof horse racing light, press SPEED+ /SPEED- to adjust.

6.    When it display F***, it is thestairs setting, press SPEED+ /SPEED- to adjust, make it same quantity to yourstairs.

7.    When it display FP**, it is thestair light lighting up mode, it is only one for now, can not be changed.

8.    When it display FH**, it isstair lighting up speed, press SPEED+ /SPEED- to adjust, the number rise, thespeed down.

9.    When it display E***, it is thedelay time after all light lighted up, it is not real living time, you can tryto adjust it by SPEED+ /SPEED-.

l  Horse racing light pixel(L***) * its running speed(LH**) = Stairsquantity(F***) * Its lighting up speed(FH**)

After all set, press SET to back to **-L,the controller will auto store all the setting you did, when power on again, itwill apply the settings.
