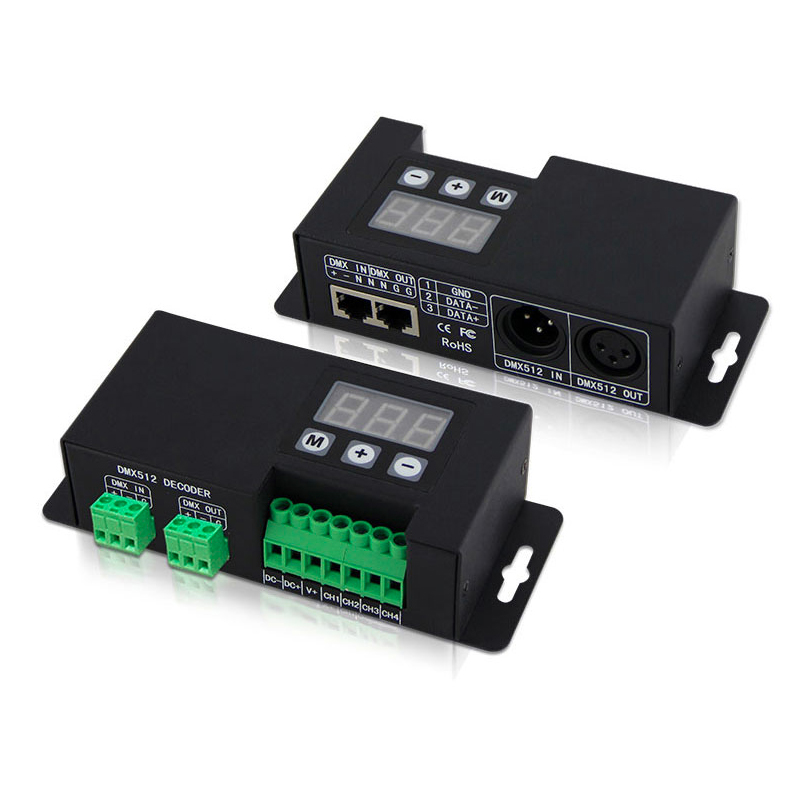

Welcome to use the DMX512 Constant Current Decoder which is developed only for constant current LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1~4 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.
Basic Features:
1. Automatically adapts input voltage DC12V-48V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address.
3. 4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stable without strobe flash.
4. Support master mode or slave mode;
5. 8 color changing modes and 10 speed scales in master mode.
6. Indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8. DMX signal lines are wrong protection.
9 . Multiple DMX512 signal interface.
Specifications:
Model | BC-854-350 | BC-854-700 |
Input voltage | DC12V-DC48V |
Max load current | 350mA/load X4 | 700mA/load X4 |
Max output power | 12V: 1-3pcs 1W LED 24V: 1-6pcs 1W LED 36V: 1-9pcs 1W LED 48V: 1-12pcs 1W LED | 12V: 1-3pcs 3W LED 24V: 1-6pcs 3W LED 36V: 1-9pcs 3W LED 48V: 1-12pcs 3W LED |
Grey Scale | 4096 levels×4 |
Input Signal | DMX512/1990 |
Output Signal | Constant Current PWM×4 |
Decode Channel | 4CH |
DMX512 socket | XLR-3R port/ RJ45 port/ terminal block |
Dimension | L157×W65×H40(mm) |
Weight (G.W) | 450g |
