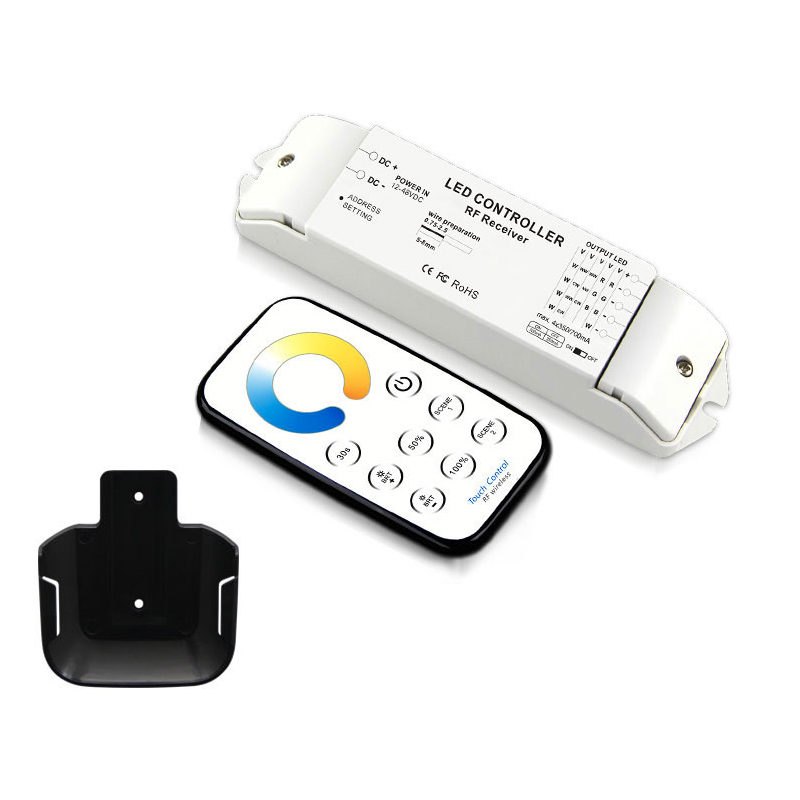

Welcome to use this LED Controller series, This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as: dimming, color temperature, RGB/RGBW etc; thus can satisfy the different demands of clients. T series have a simple fashion design, comfortable hand feeling, and user friendly.
Feature function:
1. Automatically adapt to LED light which works from DC12V-48V.
2. The receiver can compatible with our 5 different function remote control or 2.4G wireless controller to realize function such as dimming, RGB/RGBW and color temperature control.
3.10 strobe & fade change mode, with 4096 grey scales per channel, led lamp is more rich and vivid without flash.
Product parameter:
Model | Wireless Remote(T5) |
Working Voltage | 3V(CR2032) |
Working Frequency | 433.92MHz |
Remote Distance | 40m-50m |
Working Temp | -20-55℃ |
Dimensions | L106×W56×H9(mm) |
Weight(N.W.) | 40g |
Model | R4-CC-433M |
Working Voltage | DC12V-DC48V |
Output Current | 350/700mA×4CH |
Driving LEDs/ CH | 1~12pcs 1W(3W) LED |
Working Temp | -30℃-55℃ |
Dimension | L176xW46xH30(mm) |
Weight (G.W) | 137g |
Product parameter:
Model | Wireless Remote(T5) |
Working Voltage | 3V(CR2032) |
Working Frequency | 433.92MHz |
Remote Distance | 40m-50m |
Working Temp | -20-55℃ |
Dimensions | L106×W56×H9(mm) |
Weight(N.W.) | 40g |
Model | R4-CC-433M |
Working Voltage | DC12V-DC48V |
Output Current | 350/700mA×4CH |
Driving LEDs/ CH | 1~12pcs 1W(3W) LED |
Working Temp | -30℃-55℃ |
Dimension | L176xW46xH30(mm) |
Weight (G.W) | 137g |
