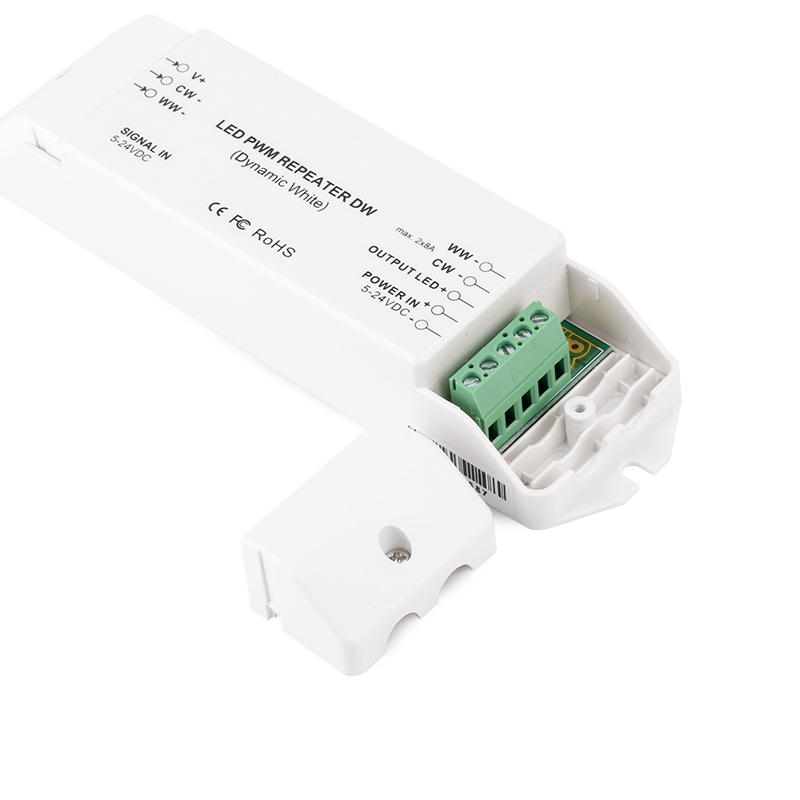

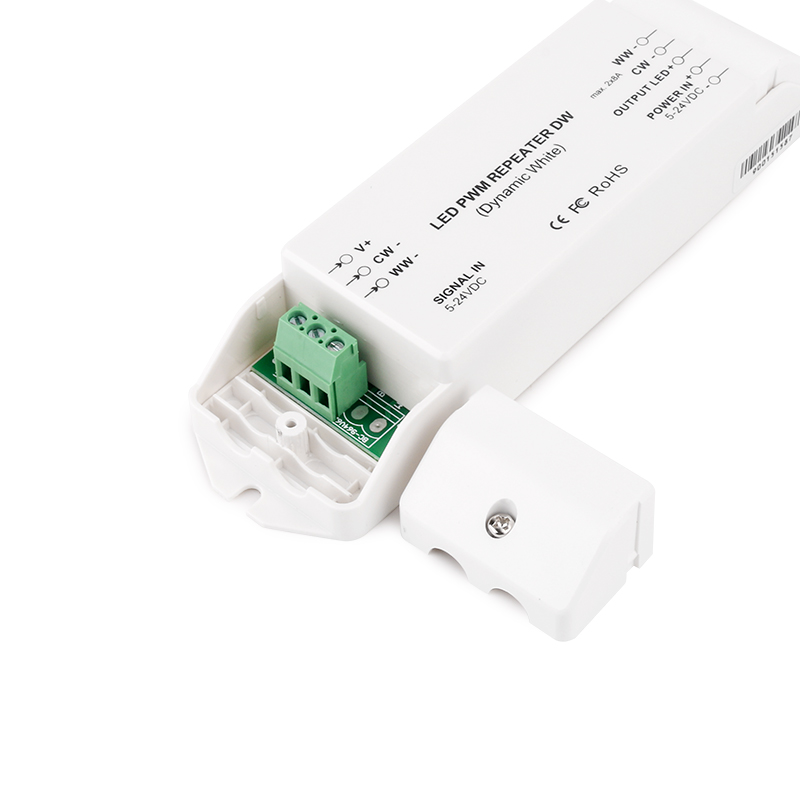

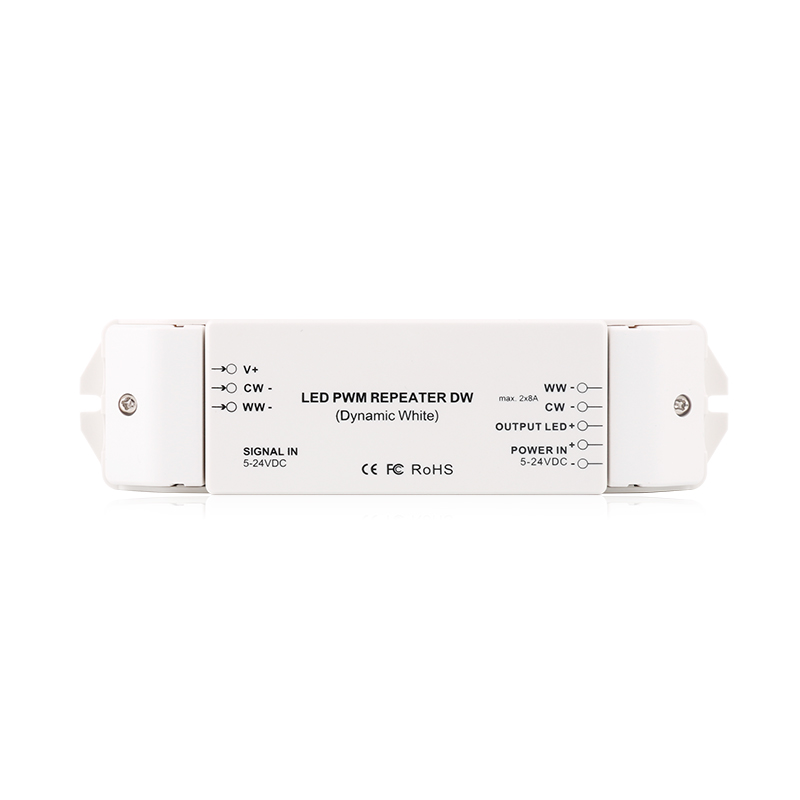

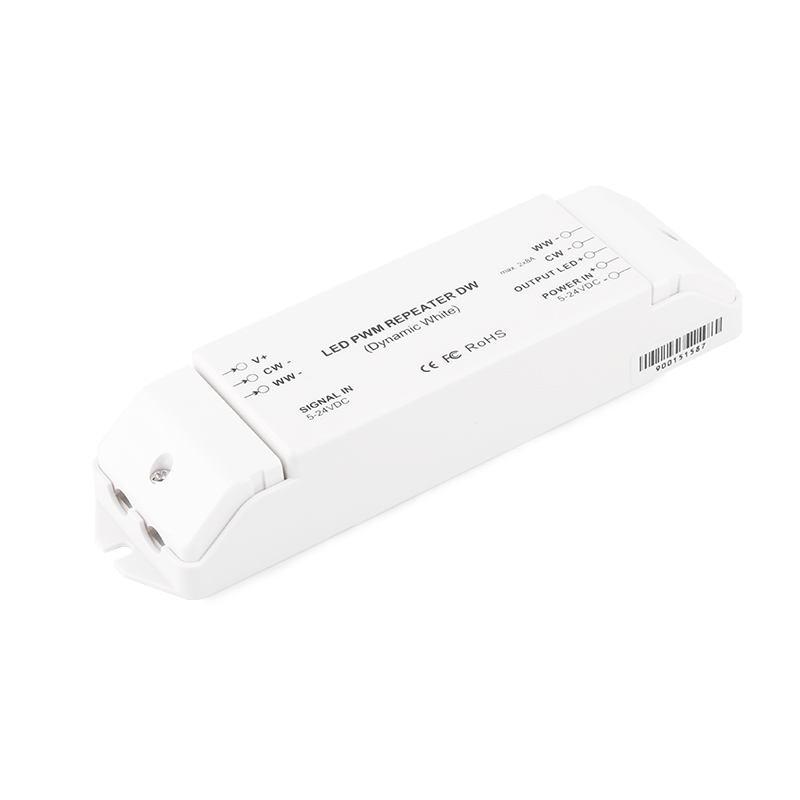

LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion, it accepts PWM control, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
Feature function:
1. Common anode input and output.
2. Sustain high frequency common anode PWM input signal.
3. Work with RGB controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.
4. Over current protection and short circuit protection.
5. 3000V optoelectronic isolation.
Model | WU-962 |
Input voltage | DC5V-DC24V |
Max Load Current | 8A/CH×2 |
Output signal | Constant voltage PWM |
Max output power | 80W(5V)192W(12V)384W(24V) |
Product Dimension | L175×W44×H30(mm) |
Package Size | L178×W48×H35(mm) |
Gross Weight | 120g
|
