DMX 512 4-Channel LED Timer Controller & Dimmer for LED Lights

Summary:

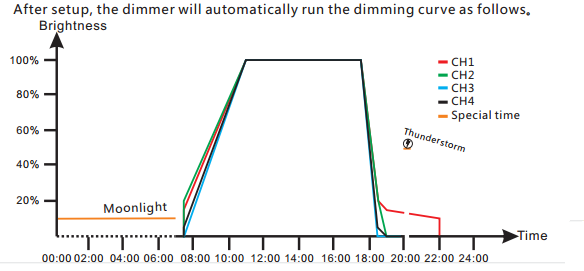

This timer dimmer series is 4CH output, it can adjust the brightness based on the set time. Users also can insert a variety of special lighting change effect, which can be customized or recorderd by the DMX console, simulating light change in the nature perfectly, suitable for commercial lighting, plant light and aquarium ligth ect.

Specifications:

Details:

Basic Features:

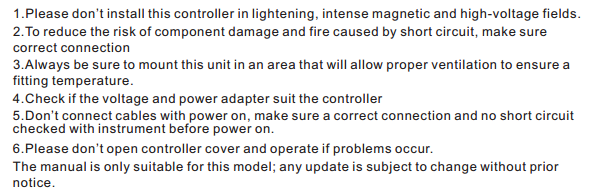

Safety Warnings:

Dimension:

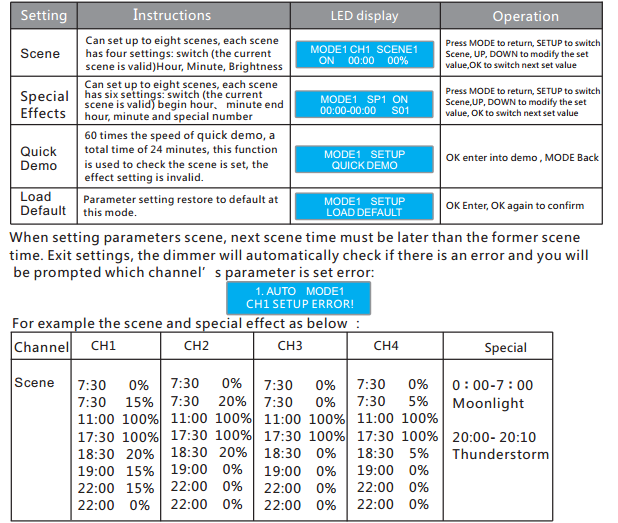

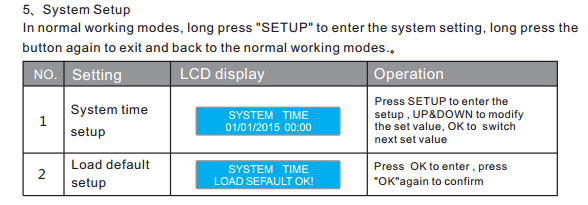

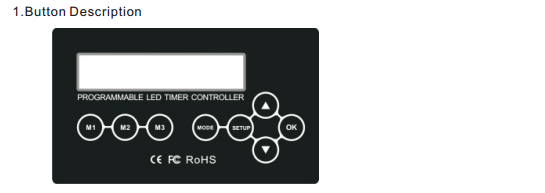

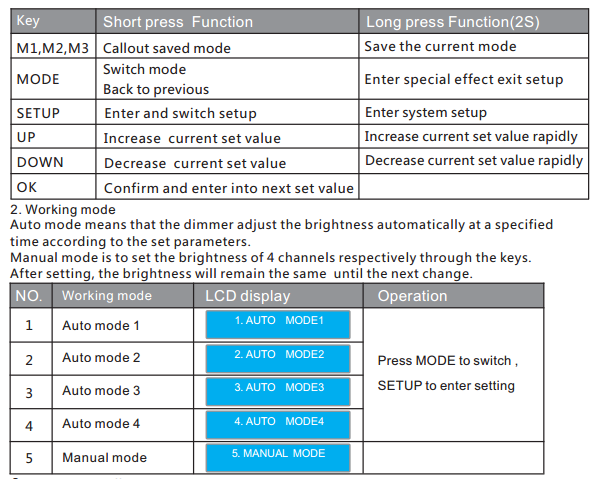

Operating instruction:

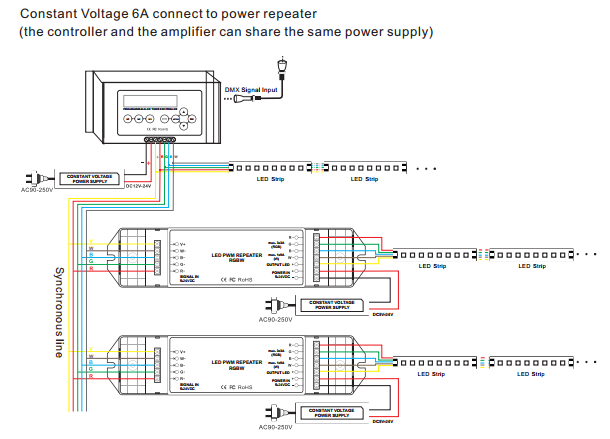

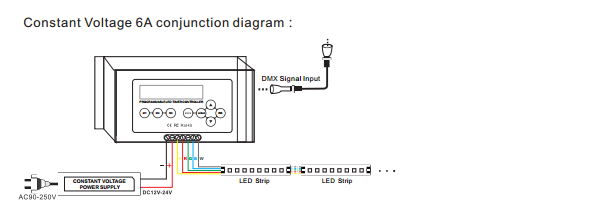

Conjunction Diagram:

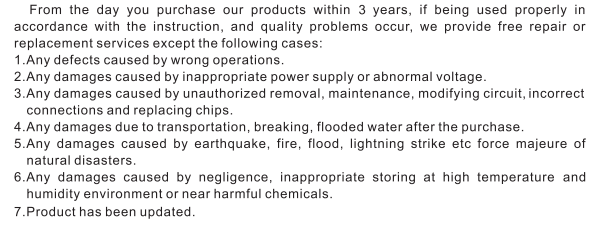

After-sales:

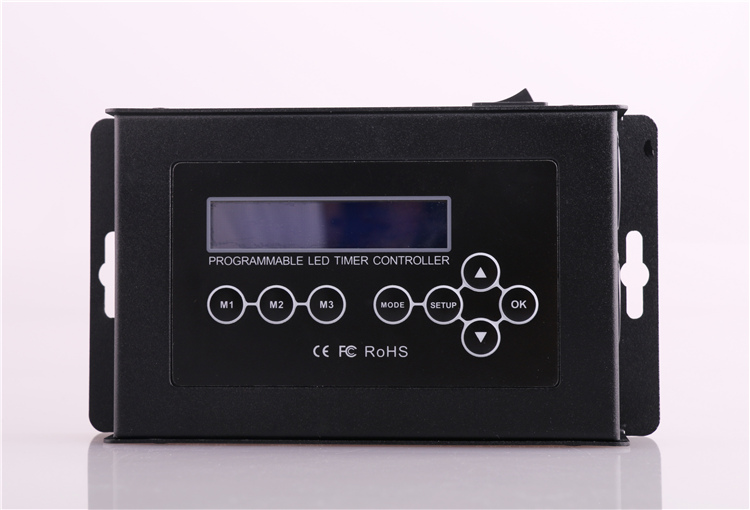

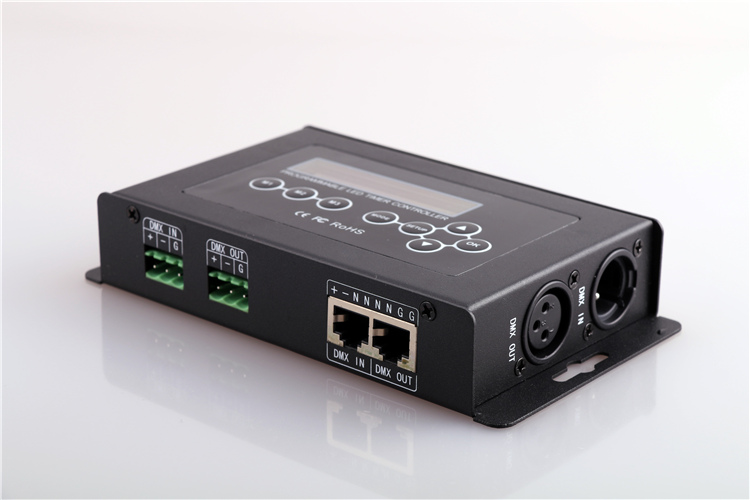

Photos for Product:

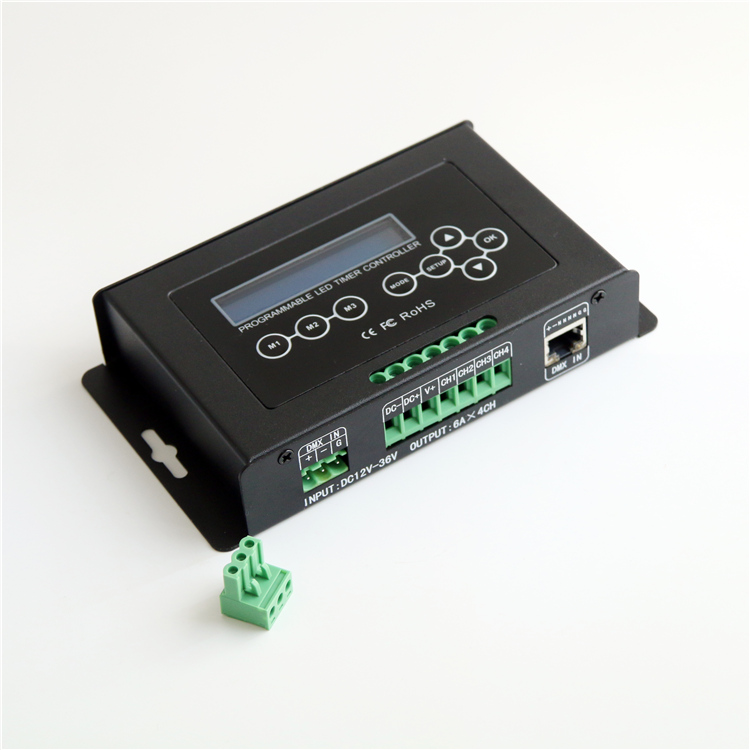

for: WU-322-6A

for:WU-322-DMX512

WU-322-6A

Max voltage: DC12-36V, 6A*4CH
Max Power: 288W(12V),576W(24V), 864W(36V)

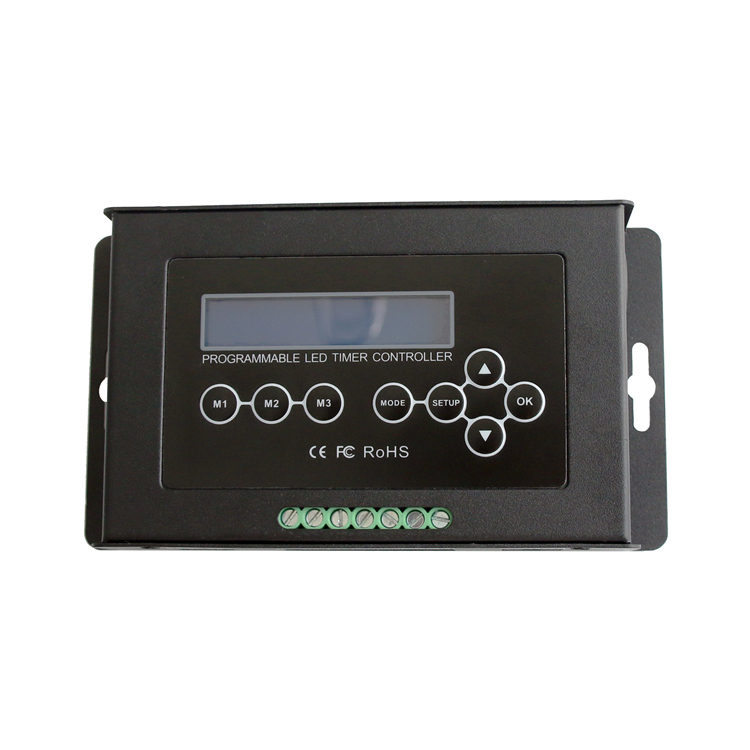

With LCD display, easy operation
Can set any time & any brightness
4 CH output, each channel can be timed dimming independently

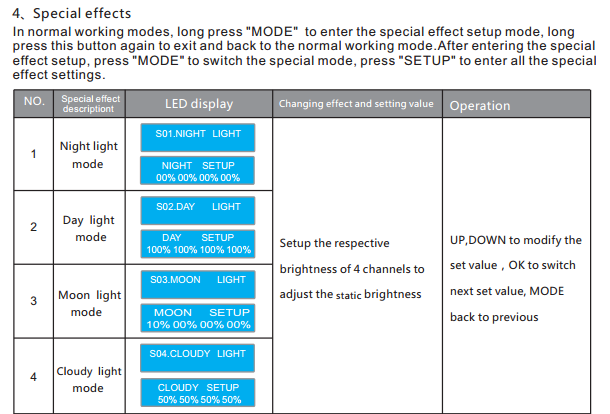

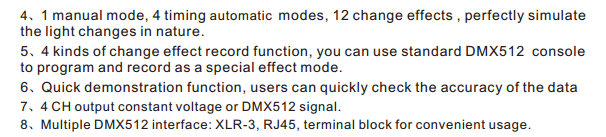

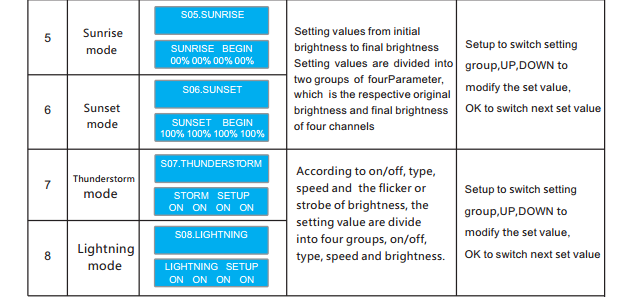

1 manual mode, 4 timing automatic modes, 12 change effects

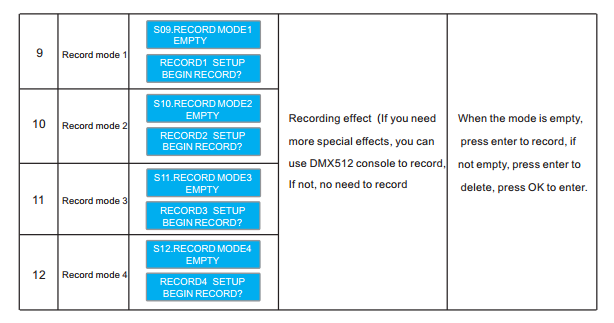

4 kinds of change effect record function

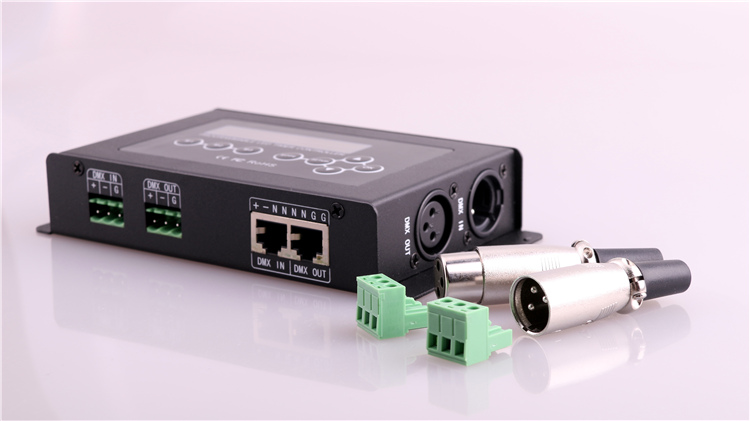

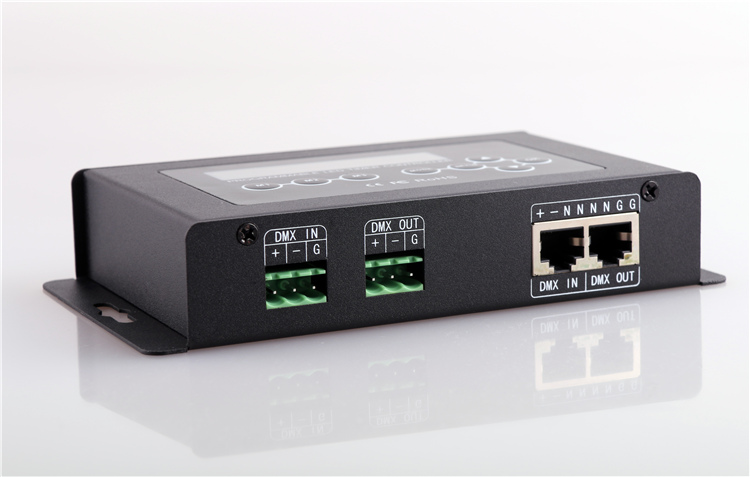

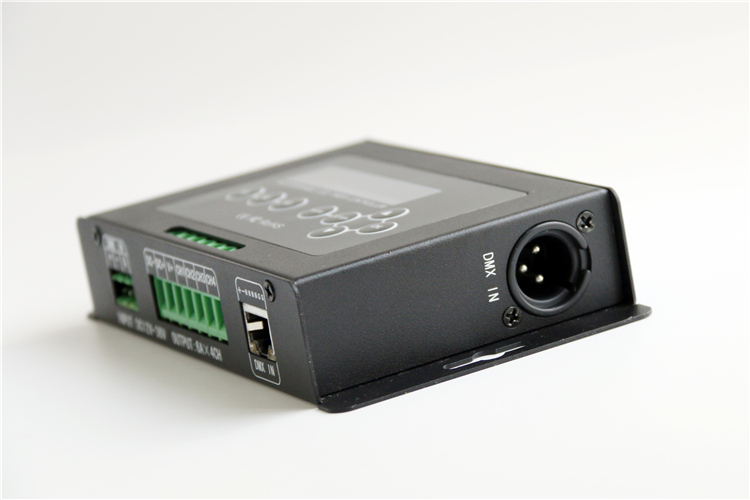

Multiple DMX512 interface: XLR-3, RJ45, terminal block
Product size: L161*W90*H30
Weight: 480g

WU-322-DMX512

Max voltage: DC9V (with adapter)
With LCD display, easy operation
Can set any time & any brightness
4 CH DMX512 output, can be timed dimming independently
1 manual mode, 4 timing automatic modes, 12 change effects
4 kinds of change effect record function
Multiple DMX512 interface: XLR-3, RJ45, terminal block
Product size: L161*W90*H30
Weight: 480g
