5-24V RF LED Remoter Single Color Mini Controller with DC Connector
This product is the accessory product for the LED Single Color Strip light RGB controller, used to control a variety of LED lighting as the light source brightness. With manual adjustment knob to adjust the lighting brightness, wiring convenient, simple and intuitive.
Model:R106-D
  • RF LED Remoter Single Color Mini Controller

    Overview:

    RF Controller adopts the advanced micro-control unit; it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, and glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change.

    Specifications:

    Working Voltage: 5-24V

    Power: 144W-12V, 288W-24V

    Current: 5A*1 CH

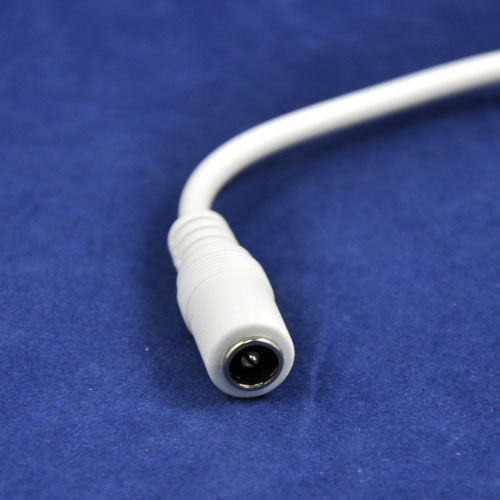

    Power Plug: DC Female

    Feature: 7 dynamic models, 10 class brightness variation, Working with Remote

    Application:

    1. The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it

    2. The 4 wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur.

    3. Connect the wires of the controller and LED fittings as per the instruction

    4. Don’t peel off the label on the controller in case any indication information will be missed

    5. The standard warranty is 2 years. Our company won’t be responsible for any damage of the Controller due to any wrong operation.

    Package included:

    1 X Mini RF with Remote LED Single Color Controller

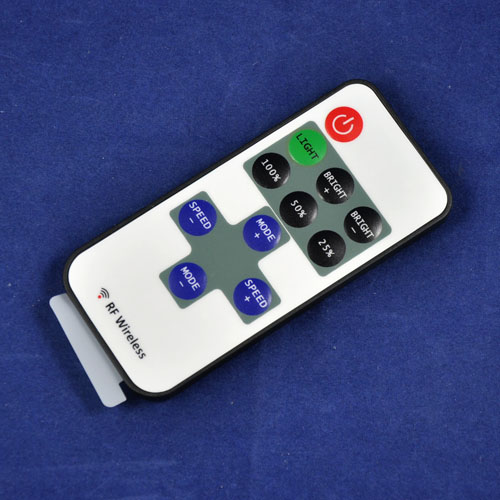

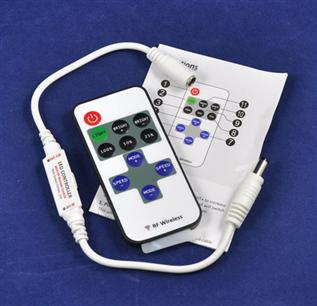

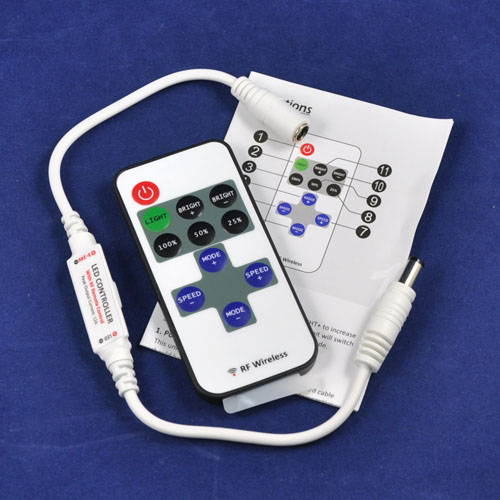

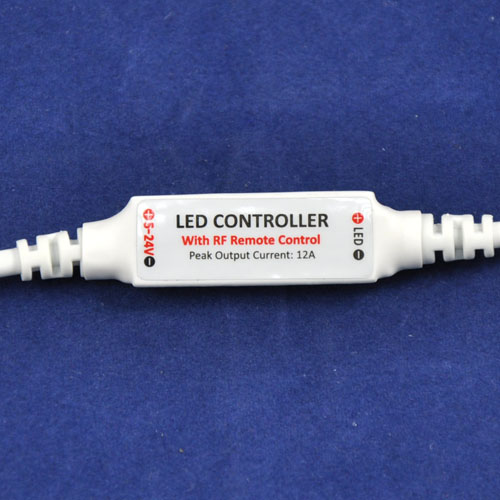

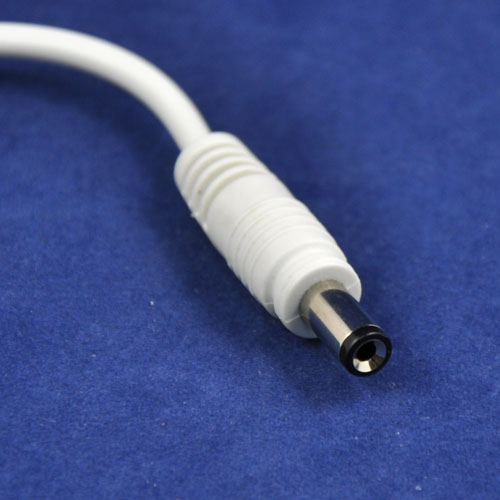

    Photos for refernce:

    Do you need any more help? Please leave message to us!
  • Working Voltage: 5-24V
    Power: 144W-12V, 288W-24V
    Current: 5A*1 CH
    Power Plug: DC Female
    Feature: 7 dynamic models, 10 class brightness

    variation, Working with Remote
