When the computer is connected online, multiple controllers can be cascaded, with a maximum support of 100,000 points (within the total number of points, the maximum number of controllers is 128).

2. The controller can flexibly choose to automatically perform ID addressing or manually set the ID, which is convenient and reliable.

3. 2-channel signal output (data independent), suitable for large, medium and small-sized projects or long-distance transmission.

4. Control various conventional chip LED guardrail tube screens, point light source screens, high-power wall washing lights, etc. SW single-chip microcomputer: D**S, D**J;

Single line: TM180*-400K/800K, UCS19**, UCS29**, TLS3001(1Mhz), SM167**;

DMX512: SW-D, SW-U, UCS512A/B/C0/C4, DMX512AP/SM512, SM16512, market standard DMX512; Resume from breakpoints: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.

5. According to the on-site layout of DMX lamps, the addressing of the lamps can be achieved.

6. Professional effect creation software is included as a bonus, allowing users to create any effect they like.

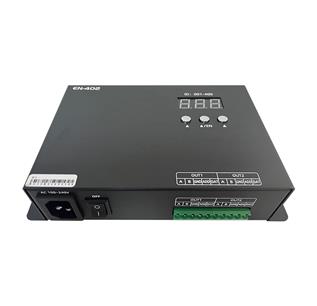

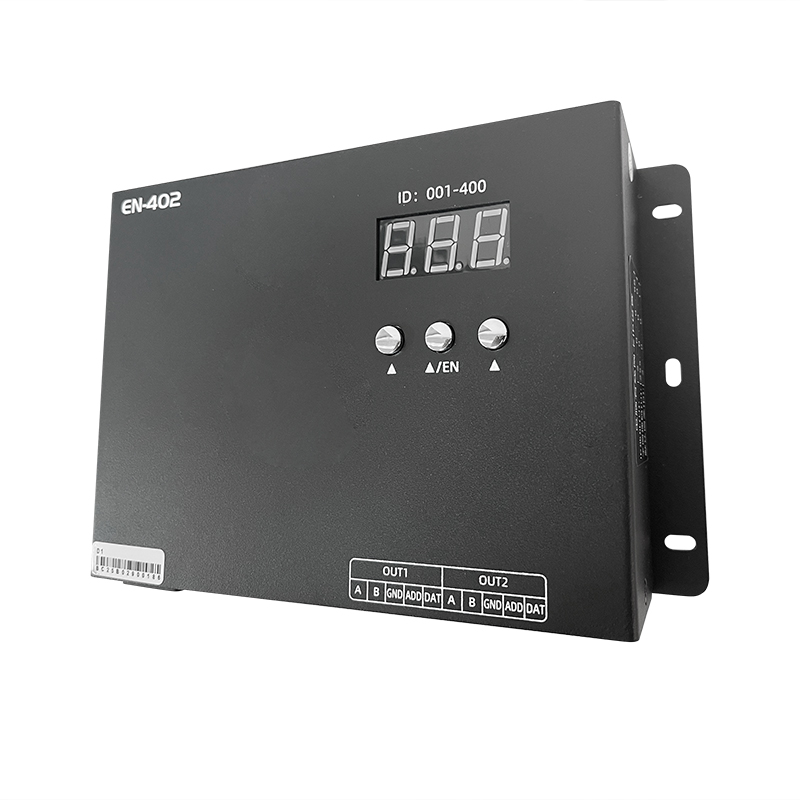

EN402 is a two-port controller. When used in conjunction with the main control SN410, it is highly suitable for linear projects such as bridge lighting beautification and building guardrails. During the design process, EN402 can be directly connected to a computer for convenient preview of lighting effects. After programming is completed, the project files can be saved to SN410 to achieve offline operation. It is an economical system. A convenient lighting control system solution.

Product Specification: 220L×142W×43.6H (mm)

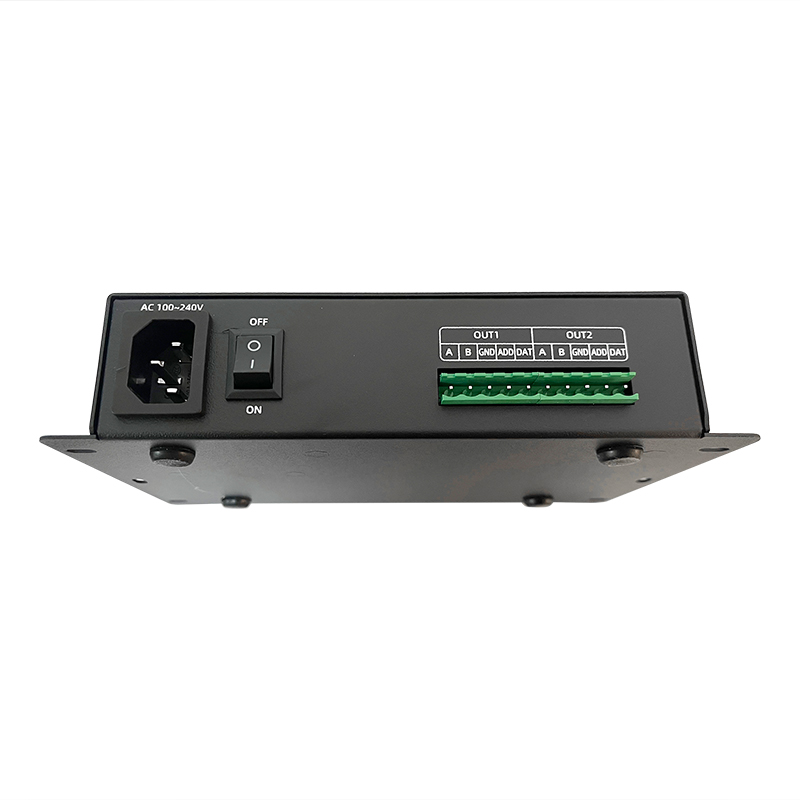

Input voltage: AC100-240V

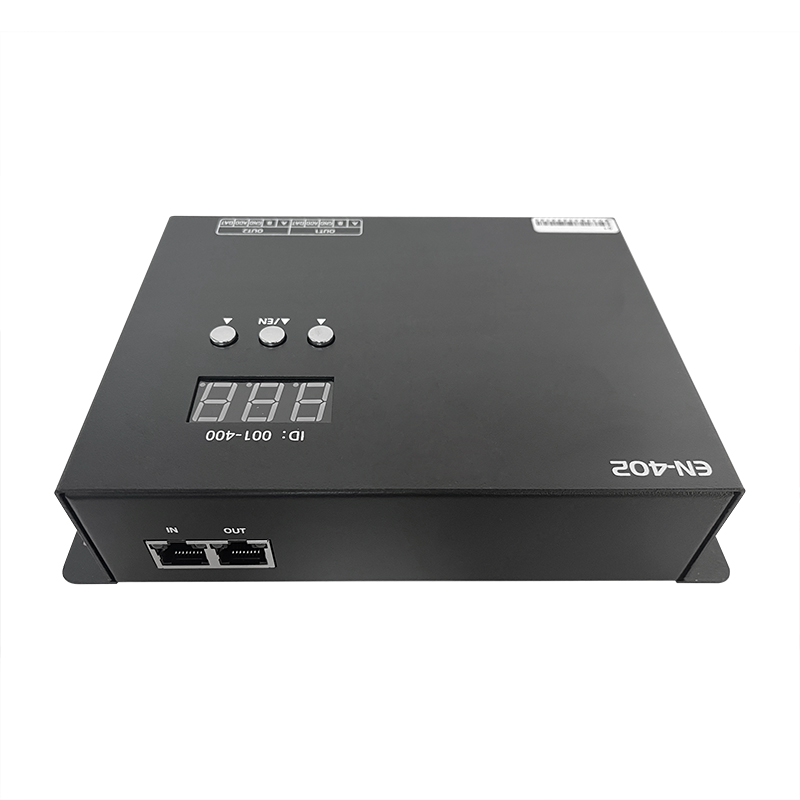

Input signal: SW Ethernet protocol

Output ports: TTL level signal & RS-485 ×2 channels (the remaining 6 channels are automatically copied)

Drive points: SW single-chip machine lamps: 960 points × 2 channels;

Single-line lamps: 1024 points ×2 channels;

Standard DMX512 luminaires: 168 points ×2 channels;

Extended DMX luminaires: 336 points ×2 channels;

Resume from breakpoint: 960 points ×2 channels.

Output power: 5W

Operating temperature: -15℃ to 60℃

Relative humidity: ≤50% RH

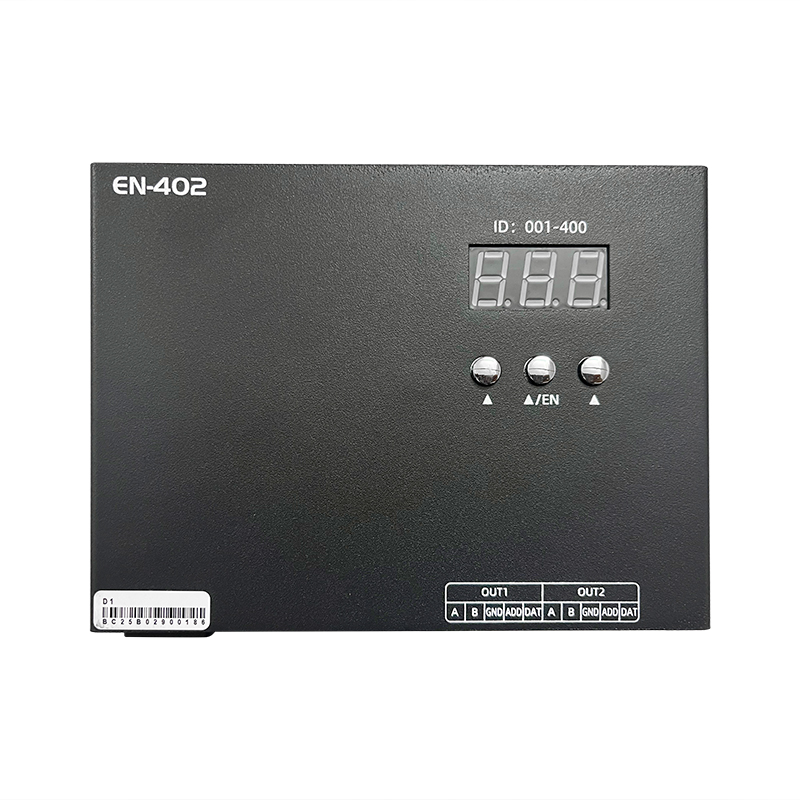

Cascading mode: When in the "00" state, the controller automatically writes the ID (with a maximum controllable quantity of 128 units). When it is not in the "00" state, the ID of the controller is the corresponding value (the maximum controllable quantity is 99 units).

Transmission distance: National standard Category 5e unshielded network cables (oxygen-free copper, diameter over 0.51mm, twisted pairs tightly, resistance less than 10 ohms /300 meters) are adopted. The distance between controllers can be up to 100 meters. For long distances, "fiber optic converters" can be selected, reaching up to 5 kilometers (only applicable between PC computers and controllers).

Protection grade: IP0 (not dust-proof, not water-proof

Usage environment: Please install in a dry indoor environment, avoiding dust, moisture and rain

Product weight: 1000g (N.W.850g)
