1. Unique data processing methods make it easy to develop solutions for complex display screens.

2. Can be connected to a computer or SN510 independently, supporting up to 100W channels or cascading 154 control boxes.

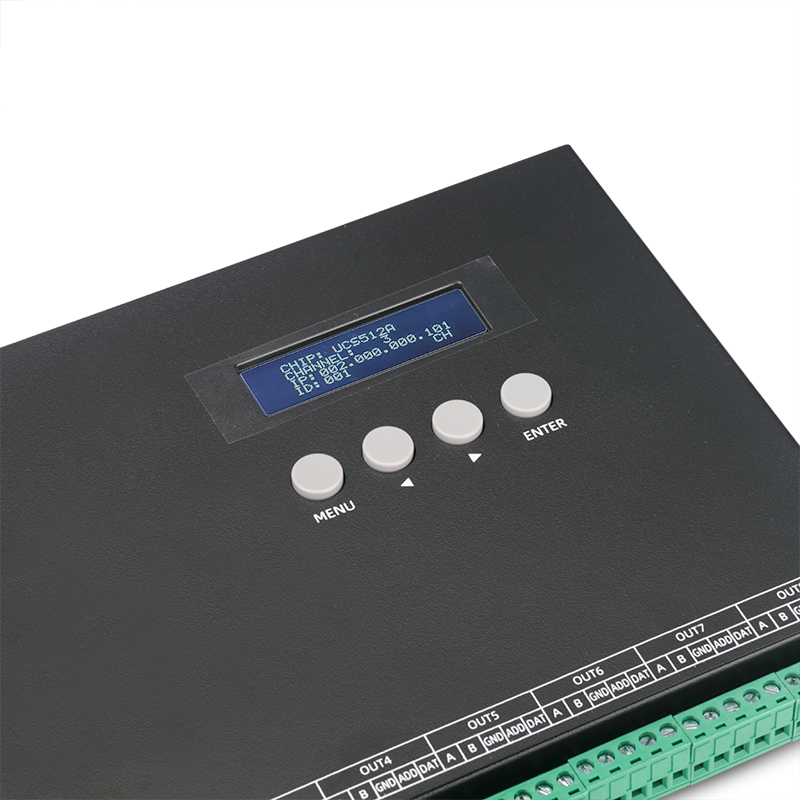

3. Intelligently set the corresponding ID address via the control box's buttons, ensuring stable and reliable operation. 4. 8-channel signal output (data independent), controls various conventional chip-based LED guardrail tube screens, point light screens, high-power wall washers, and more.

SW MCUs: D**S, D**J;

Single-line: TM180*-400K/800K, UCS19**, UCS29**, TLS3001 (1MHz), SM167**;

DMX512: Compatible with various SW/UCS/SM/TM DMX chips, as well as standard DMX512 (see the "Supported Chips" section for addressing);

Resumable download: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S;

65536 grayscale: UCS8903, UCS8904, UCS9812, SM16813.

5. Includes professional effects creation software, allowing users to create custom effects. 6. Data and hardware encryption can be implemented when used with customized hardware to ensure project security.

Input Voltage: AC100-240V

Input Signal: SW Ethernet Protocol

Output Ports: TTL Level Signal & RS-485 x 8

Drive Points: SW Microcontroller Lighting: 2880 channels x 8;

Single-Line Lighting: 3072 channels x 8;

Standard DMX512 Lighting: 512 channels x 8; Extended DMX Lighting: 1024 channels x 8;

Breakpoint Resumable Transmission: 2160 channels x 8;

65536 Grayscale: 2160 channels x 8.

Output Power: 5W

Operating Temperature: -15°C to 60°C

Relative Humidity: ≤50% RH

Cascade Mode: Parallel (Manual Addressing)

Protection Rating: IP20 (Protection against human fingers and objects larger than 12.5mm in diameter. No special protection against water or moisture.)

Usage Environment:

1. Do not install this control box in an environment with magnetic fields, high voltage, high temperature, or high humidity.

2. To reduce the risk of fire and damage caused by short circuits, ensure a secure ground connection.

3. Ensure the use of an AC100-240V power supply and ensure the polarity of the transformer and control box are the same when connecting to ensure the proper supply voltage.

4. The control system is not waterproof. Please protect it from rain and water during installation.

Net Weight: 1500g
