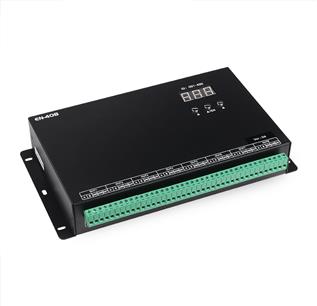

EN408 is online controller, it output 8CH signal, can contol up to 8192 RGB pixel, many EN408 can be connected in series to control more pixel.
It has not SD card, can not store project files, should work with PC or master controller.

It supports access and control by LED Player software, and has unique data processing methods for complex display screens, making it easy to develop solutions.

It can be connected to a computer or SN separately for use, supporting a maximum of 100W channels or cascading 400 control boxes.

8-way independent signal data output, controlling various conventional chip LED guardrail tube screens, point light source screens, high-power wall washers, etc.

support almost common pixel light control IC:

Single line: TM180*-400K/800K, UCS19**, UCS29**, WS2811/12, TLS3001(1Mhz), SM167**, SM16823E, SM16824E;

DMX512: SW-D, SW-U, UCS512A/B/C0/C4/D/E0/EH/G4/G6, DMX512AP/SM512, SM16500P/511/512, SM17500P/512P/522P, SM17512/522, SM18522P/PH, Hi512A0/A4/A6/AD/AE, TM512AB3/AL1/ACx/AD, QED512P, GS8511/512/513/515

Commercial standard DMX512 (see the "Supported Chips" section for addressing).

Resumable download: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S;

65536 grayscale: UCS8903, UCS8904, UCS9812, SM16813.

Comes with professional effects production software LED Player, users can create any effects.

Housing Material: Iron

Net Weight: 1 kg

Input Voltage: AC100-240V

Input Signal: SW Ethernet Protocol

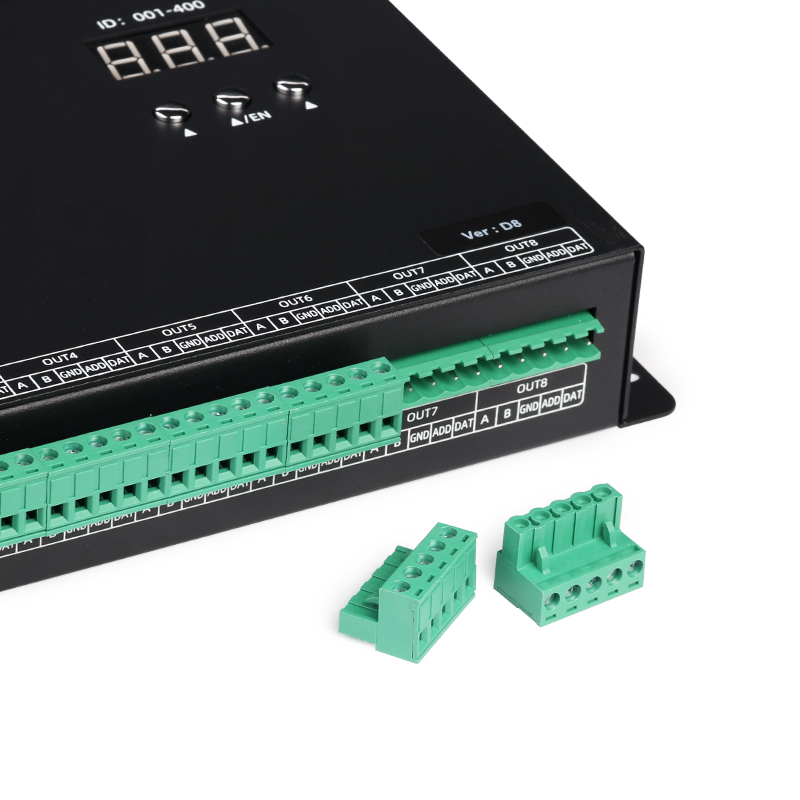

Output Ports: EN-408: TTL Level Signal & RS-485 x 8

Drive Points: LED Player Software Supported Number of Lights:

SW Microcontroller Lighting: 2880 channels x 8; Single-Line Lighting: 3072 channels x 8;

Standard DMX512 Lighting: 512 channels x 8; Extended DMX Lighting: 1024 channels x 8;

Breakpoint Resumable Download: 2160 channels x 8; 65536 Grayscale: 2160 channels x 8

Output Power: 5W

Cascade Mode: Parallel (Manual Addressing)

Protection Rating:

IP20 (Protection against human fingers and objects larger than 12.5mm in diameter. No special protection against water or moisture.)

Usage Environment:

1. Do not install this control box in an environment subject to magnetic forces, high voltage, high temperature, or high humidity.

2. To reduce the risk of fire and damage caused by short circuits, ensure a secure ground connection.

3. Ensure the use of an AC100-240V power supply and ensure the polarity of the transformer and control box are aligned to ensure the proper supply voltage.

4. The control system is not waterproof. Ensure it is rainproof and waterproof during installation.
