1. Supports control of various DMX lamps and TTL lamps.

2. Supports multiple writing methods: regular address writing, one-click address writing, and quick address writing.

3. Supports calibration for various DMX chips and TTL lamps.

4. Built-in multiple test effects.

The maximum addressing limit is 4096 channels.

6. The addressing function and control function can be switched without re-powering.

7. It has a memory function and can send the last set code parameters with one click.

8. When only an SD card is inserted, the one-click code writing function can be used. The default starting address is 0001 and cannot be changed.

9. Support interactive drive (IW-6E10/IW-3D04/IW9D10/IN-6E05) for parameter and effect writing functions.

10. SD cards with a maximum capacity of 32GB (effect files with a maximum capacity of 3.5GB) are supported. The LED Player software is compatible with version 3.2.7 or above. The SW-201-A1 comes standard with a 128MB SD card, while the SW-201-CL-A1 comes standard without an SD card. Customers can choose to expand by themselves.

Dimensions: L100*W64*H23.5mm

Net weight of the product: 0.25Kg

Material: Aluminum alloy

Input voltage: Micro USB DC 5V (can be powered by a mobile power bank), DC 12V-24V input

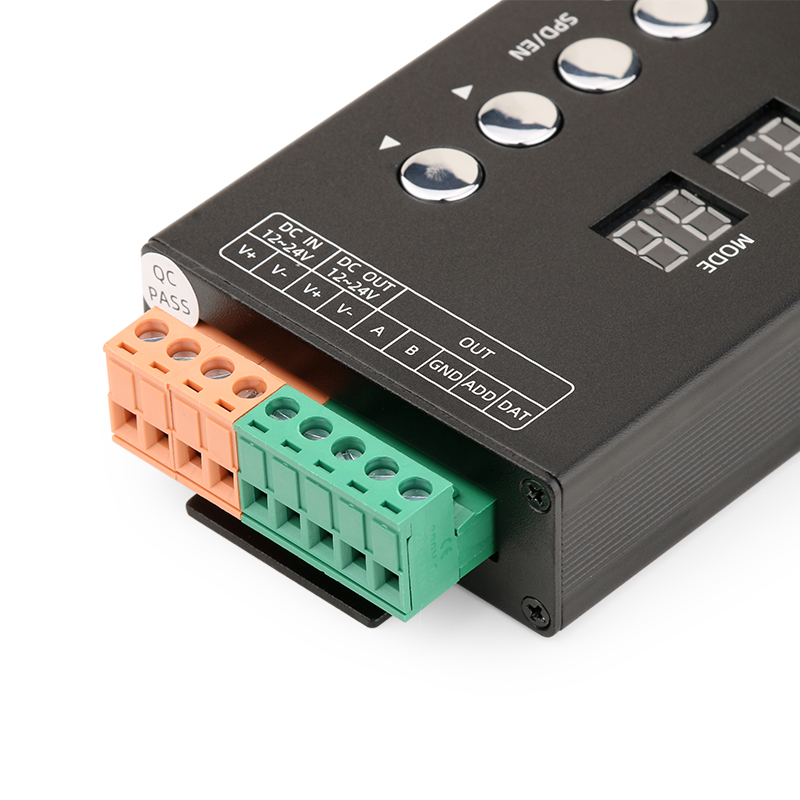

Output port: TTL level signal & RS-485 ×1 channel, DC 12-24V output

Driver points: SPI single-wire lamp: 3072 channels × 1 channel; Standard DMX512 lamp: 512× 1 channel; Expansion DMX lighting fixtures: 1024× 1 channels;

Output power: < 3W

Operating temperature: -15℃ to 60℃

Relative humidity: ≤50% RH

Protection grade

IP20 (Prevents human fingers from touching the internal components of the electrical appliance, prevents foreign objects with a diameter greater than 12.5mm from entering, and has no special protection against water or moisture.)
