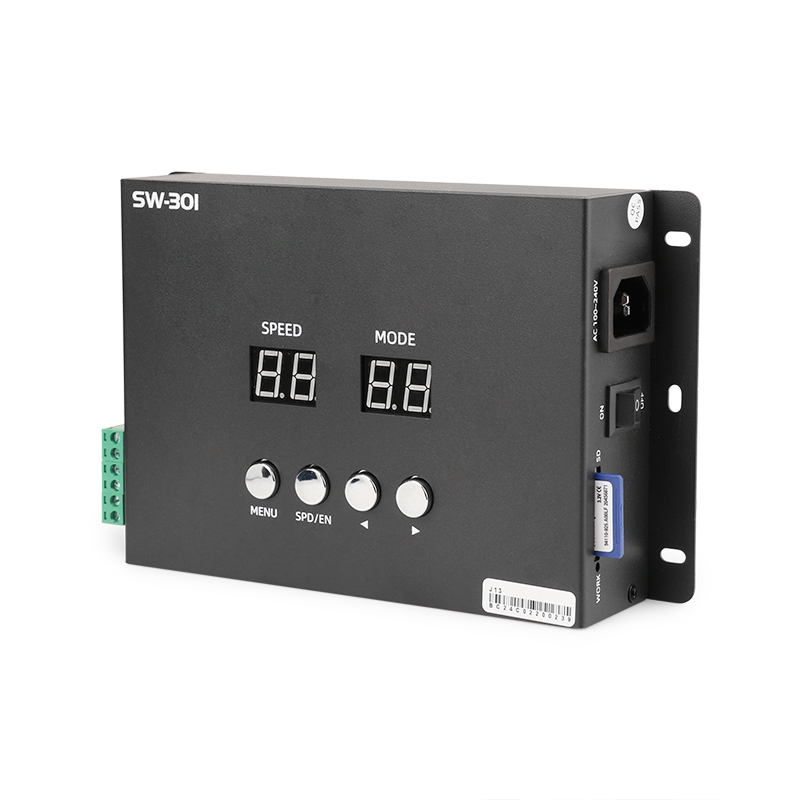

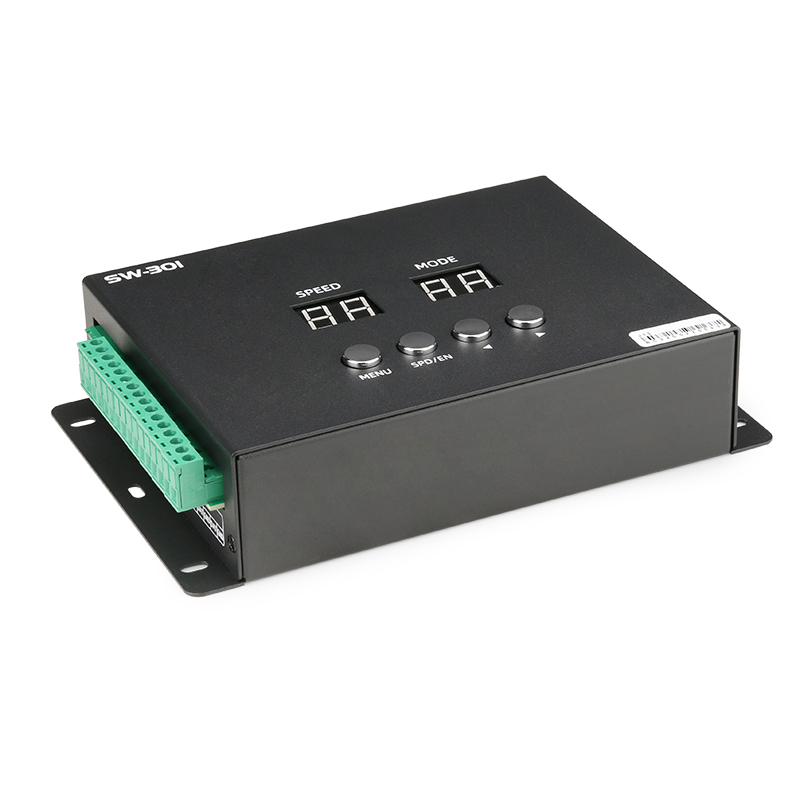

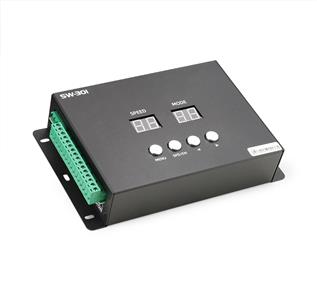

The SW-301 controller is suitable for various LED guardrail tubes or point light source building contours.

Single-line lamps: TM180*-400K/800K, UCS19**, UCS29**, TM1913, WS2811/12, SM167**; DMX512 luminaires: SW-D series; WM series, WT series, DM series

2. Effects can be selected automatically or manually, and the speed is adjustable.

3. The controller is equipped with 1804 built-in effect. When the SD card malfunctions, the controller can automatically switch to the built-in mode for normal operation.

4. Professional effect creation software is included as a bonus. Users can create any effect by themselves and insert it into the SD card for use.

Feature:

1. Supports control of multiple SPI single-wire lamps.

Lianxin Technology: UCS1903N, UCS1903B, UCS1904, UCS1909B, UCS1912, UCS2903, UCS2904B

UCS2909, UCS2912, UCS5603A, UCS5603B, UCS8903, UCS8904, UCS9812

Tianwei: TM1804, TM1809, TM1812, TM1913, TM1914/TM1914A, TM1934D, TM1803

TM1814, TM1903, TM1908, TM1923, TM512DH

Mingwei: SM16703P, SM16709P, SM16712P, SM16704PB, SM16813P, SM16711, SM16714P

SM16824E, SM16823E, SM15155E, SM16714PHT, SM16912P

Junlue: GS8206, GS8205, GS8219, GS8208

Huacai Wei: WS2811, WS2812, WS2818

Lexin: LX1003, LX3203

Bai Cheng Guang: P9883

New model: XT1506S

Others: LPD1889, SK6812, FW1935, GW6312, MT1806, MT16703

2. Built-in multiple test effects.

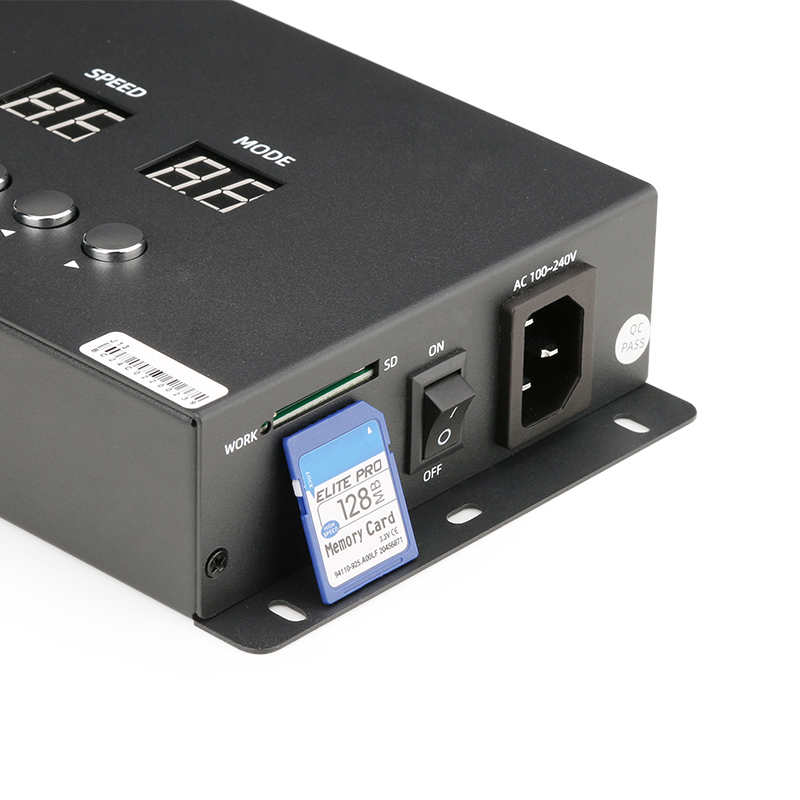

3. SD cards with a maximum capacity of 32GB (effect files with a maximum capacity of 3.5GB) are supported. The LED Player software is compatible with version 3.2.10.2 or above.

Shell material: Aluminum alloy

Input voltage: AC 100V to 240V

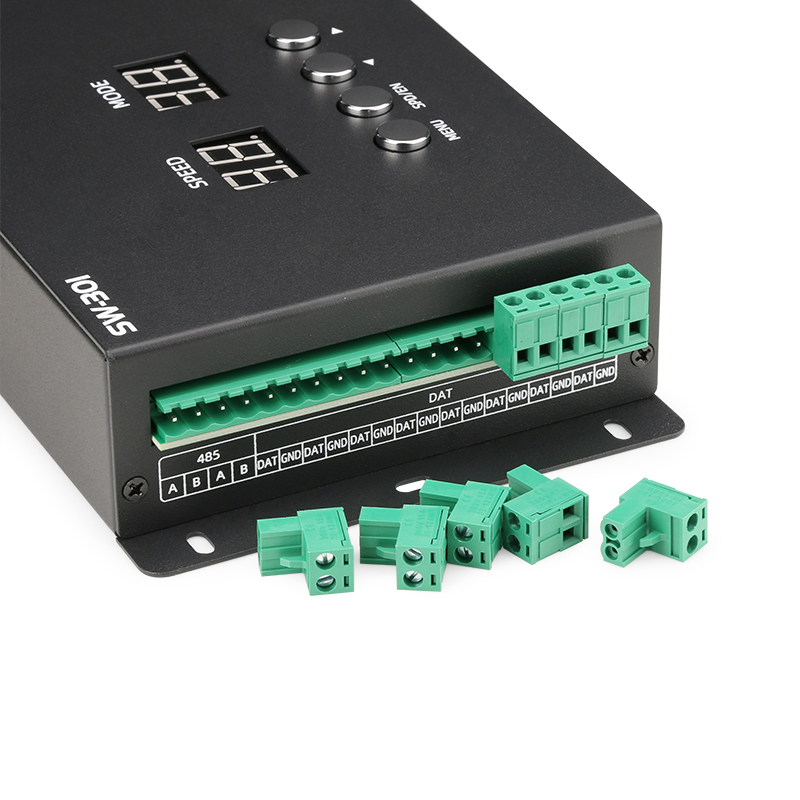

Output ports: RS-485×2 channels (2 channels with the same data), TTL×8 channels (8 channels with the same data)

Drive points: SPI single-wire luminaire: 3072 channels

Output power: < 3W

Operating temperature: -15℃ to 60℃

Relative humidity: ≤50% RH

Protection grade: IP20 (Prevents human fingers from touching the internal parts of the electrical appliance, prevents foreign objects with a diameter greater than 12.5mm from entering, and is resistant to water.

Or there is no special protection against moisture."

Operating environment: 1. Do not install this control box in an environment with magnetic force, high pressure, high temperature or high humidity.

2. To reduce the risk of fire and damage to components caused by short circuits, please ground them safely.

3. Please confirm the use of an AC100-240V power supply and ensure that the polarity of the transformer and the control box is the same when connected.

To ensure an appropriate power supply voltage;

4. The control system does not have a waterproof function. Please pay attention to rain and water protection during installation.

Function Guidance: P-3: Three-way single-wire SPI lamp

Net weight of the product: 0.6 kilograms

Dimensions: L192*W122*H45
