1. Supports control of multiple DMX lamps.

2. Support multiple writing methods: regular addressing, one-click addressing, and quick addressing; The maximum addressing limit is 4096 channels.

3. Support calibration for various DMX chip lamps.

4. Built-in multiple test effects.

5. The addressing function and control function can be switched without re-powering. It also has a memory function and can send the last set code with one click

Parameters.

6. When only an SD card is inserted, the one-click code writing function can be used. The default starting address is 0001 and cannot be changed.

7. Support interactive drive (IW-6E10/IW-3D04/IW9D10/IN-6E05) for parameter and effect writing functions.

8. SD cards with a maximum capacity of 32GB (effect files with a maximum capacity of 3.5GB) are supported. The LED Player software is compatible with version 3.2.7 or above.

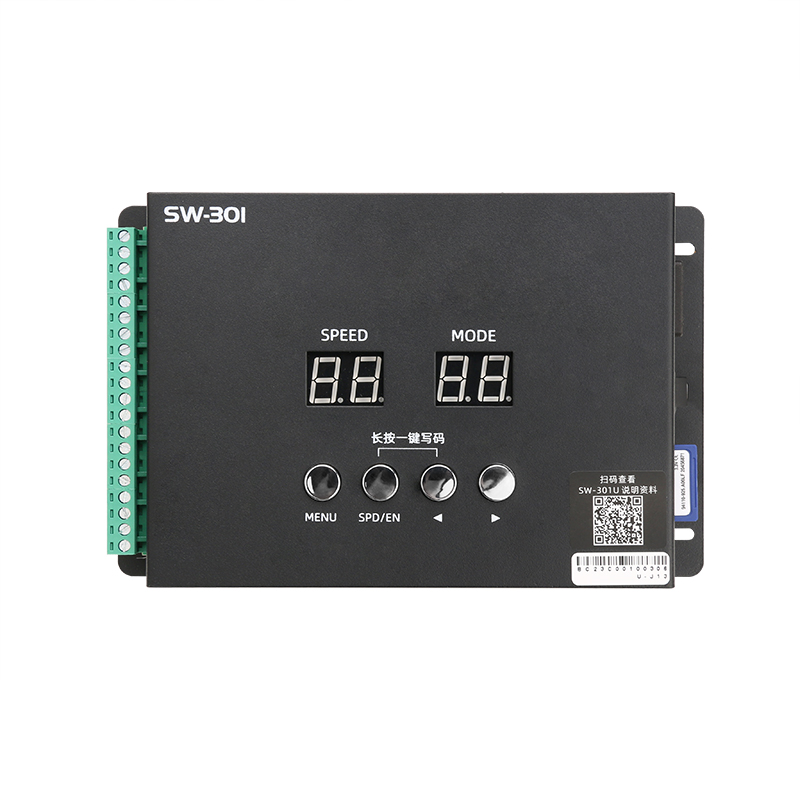

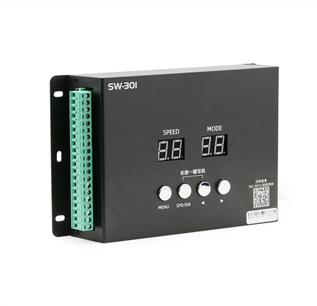

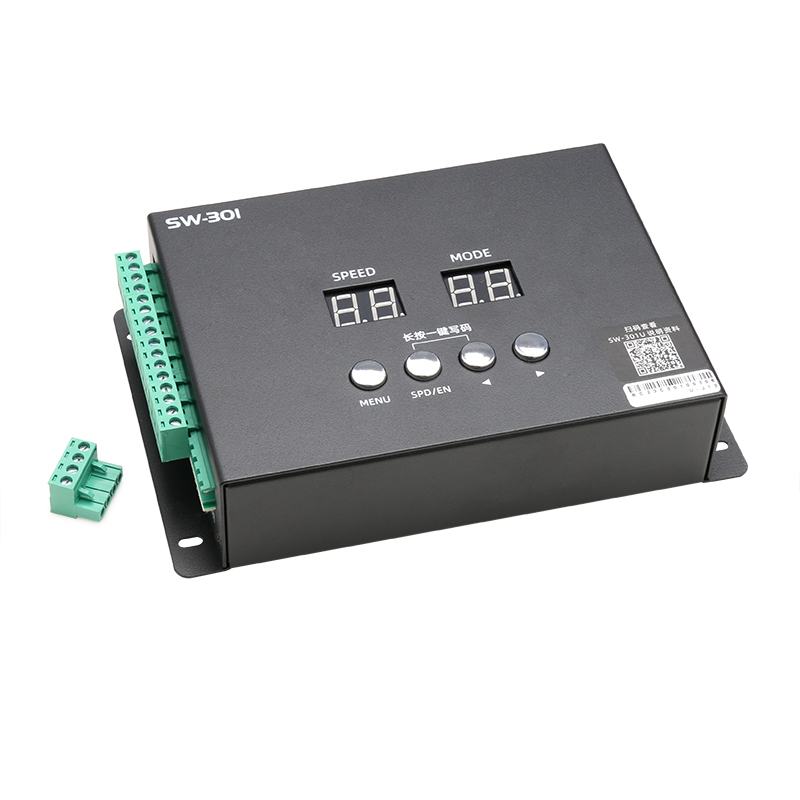

Product Specification: 192L×122W×45H (mm)

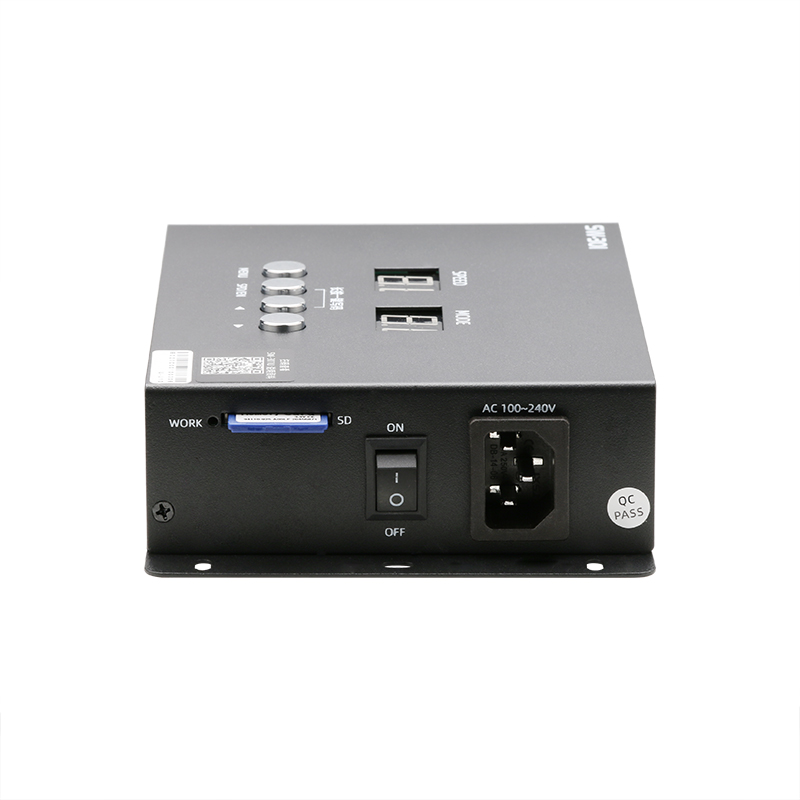

Input voltage: AC 100V to 240V

Output port: RS-485×5 channels (5 channels have the same data)

Drive points: Standard DMX512 lamps: 168 points per single channel

Extended DMX512 luminaires: 336 points per single channel

Output power: < 3W

Operating temperature: -15℃ to 60℃, relative humidity: ≤50% RH

Protection grade: IP0 (not dust-proof, not water-proof

Usage environment: Please install in a dry indoor environment, avoiding dust, moisture, rain and direct sunlight.

SD card capacity: Less than 256M

Product weight: 710g (N.W.600g)
