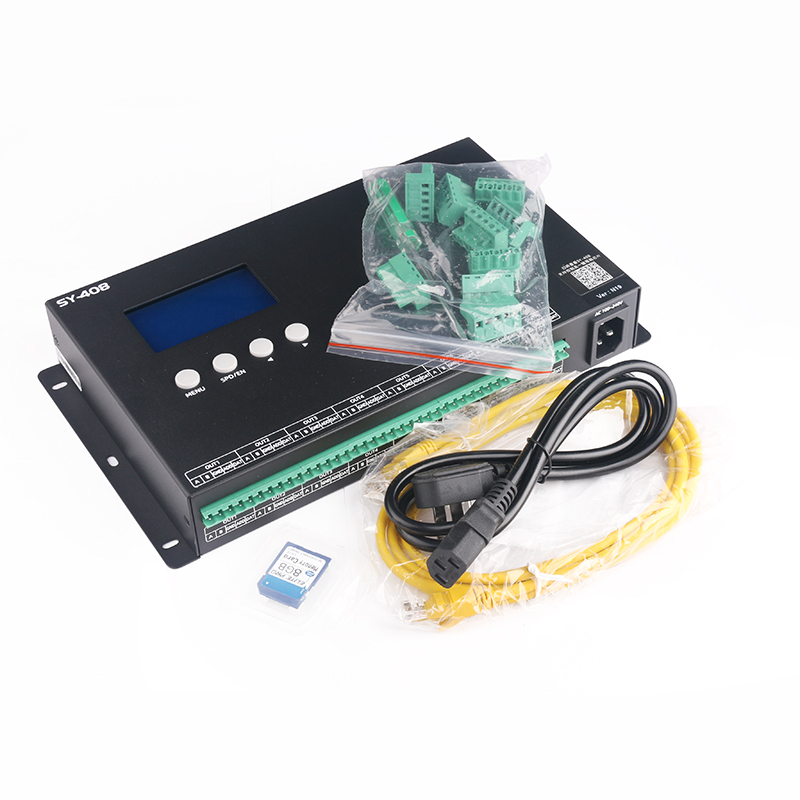

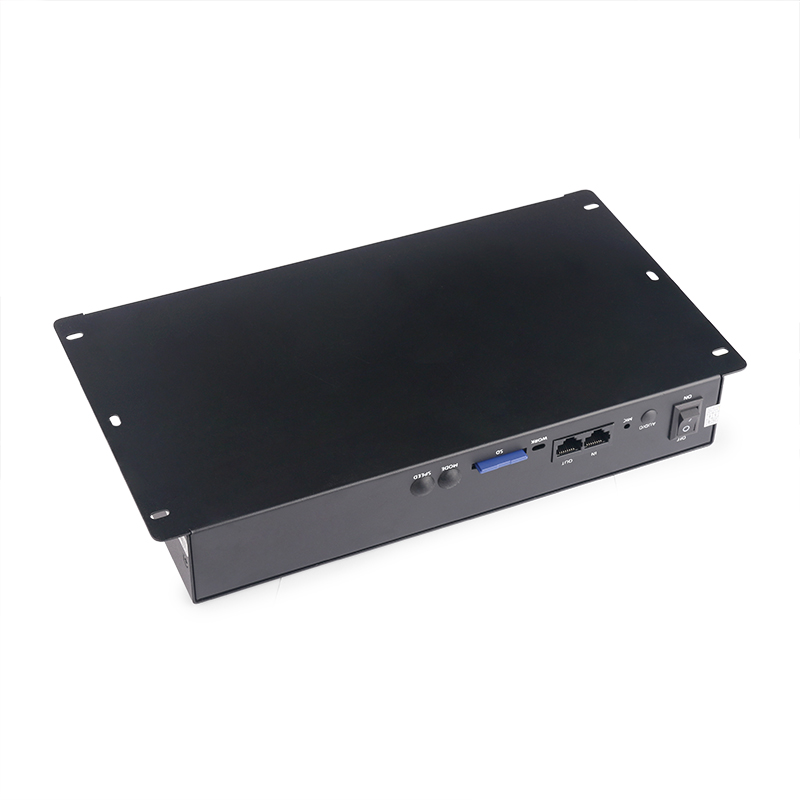

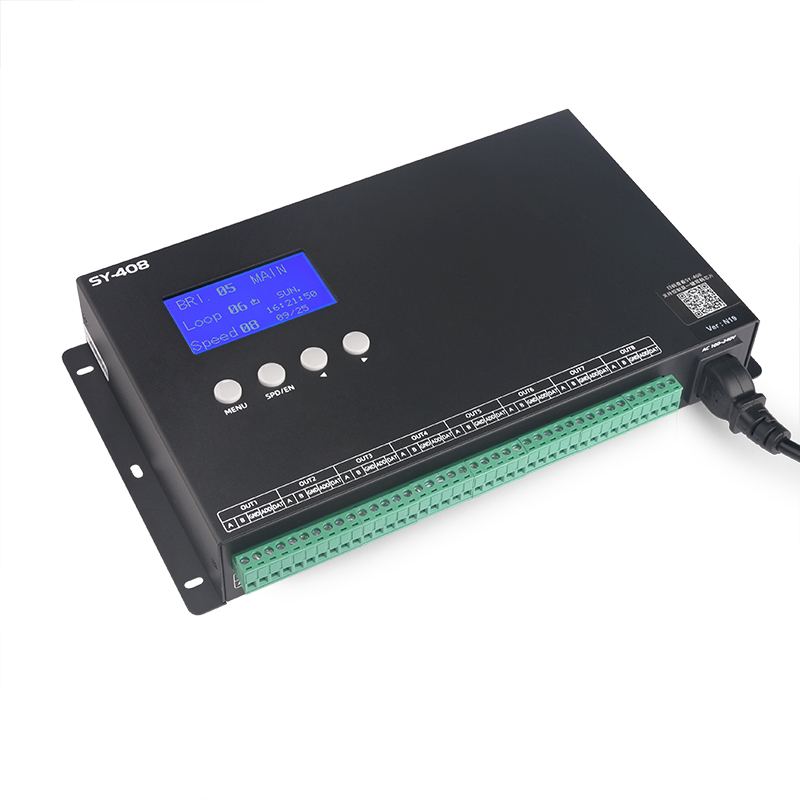

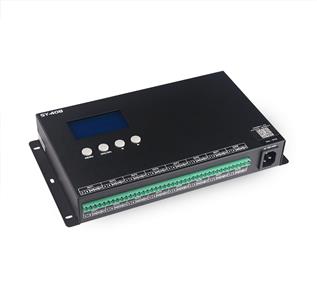

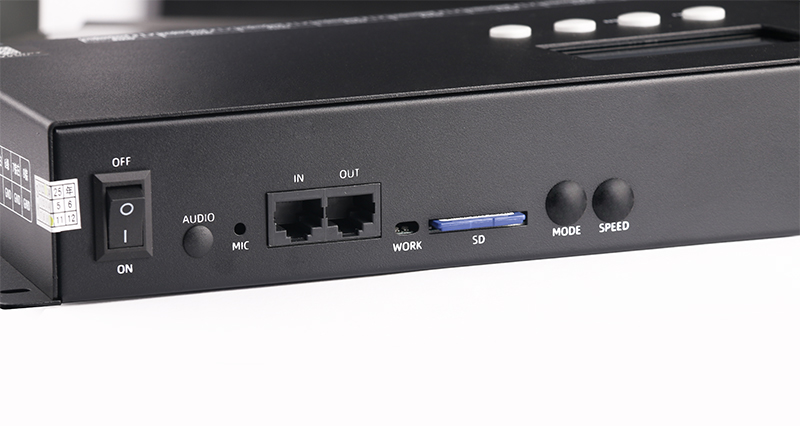

SY-408 is powerfull 8CH output SD card programmable LED pixel light controller,

support almost single wire SPI control IC like 1903, 2811, 16703 etc,

support almost common DMX control IC, like UCS512, TM512, and common DMX512 decoder, etc.

It work with SD card, offline mode,

Programmed by free programming software LEDplayer 3,

The SD card multi-functional controller can realize various solutions such as remote control via mobile phone WIFI/GSM,GPS satellite synchronization, and 4G/GPRS city-wide lighting control

It supports additional functions such as encryption, time control, audio control, voice control, and DMX512 signal input

Supports cascading, and the software intelligently splits the SD card files of each controller

Power input: AC100-240V

Data input: SD card (8G)

Output ports: TTL level signal & RS-485 ×8 channels

Capacity of each unit: 10,240 points (1280×8)

Maximum power: 5W

Operating temperature: -15℃ to 60℃

Shell material: Aluminum alloy

Weight: G.W.1400g (N.W.1200g)

Dimensions (mm) : 285L×156W×45H

Support IC:

· Single-line chips: Compatible chips such as TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2912, WS2811, BS0901, etc

· Two-wire chip: Civic D series single-chip microcomputer with self-checking chip

· Three-line chips: Compatible chips such as DMX512, UCS512, LPD6803, LPD8803, LPD8806, D705A, UCS6909, UCS6912, P9813, etc

· Four-wire chips: Compatible chips such as DM134/135, IBM5024/5026, 3130, TT6016, 595, etc
