FUNCTION OVERVIEW

1. 8-channel output signal (data-independent). Apply to large project and long distance transmission.

Support several controllers cascade using.

2. Control variety of regular chips in LED digital tube screen, LED pixel light screen, and etc.

SW Single chip: D**S, D**J.

SPI: TM180*-400K/800K, UCS19**, UCS29**, WS2811/12, SM167**, SM15155E, SM16912P, UCS2603, TM1903, TM1908, SM16714PHT, MT16703, FW1935, FL16703A, HW1002A, RT7908A, KW2303A, FW1903.

DMX512: SW-D, SW-U, UCS512A/B/C0/C4/D/E0/EH/G4/G6/H/H4/H4L/KL, DMX512AP/SM512, SM16500P/511/512, SM16522P/PS, SM17500P/512P/522P, SM17512/522, SM18512P/PK, SM18522P/PH, SM19522PS, Hi512A0/A4/A6AD/AE/B4L, TM512AB3/AL1/ACx/AD/AE, QED512P, GS8512/513/515/516/516B, GS8523/24/25/26, standard DMX512

lighting fixture on the market.

Breakpoint resume: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.

3. Audio control, sound control, cascade sync, time control ,GPS satellite sync and bluetooth applet are optional as additional functions.

4. Specialized software of making animation is included, user can make their own effects.

5. The load capacity of different lighting fixtures is different. (If no specific requirement of frame frequency, load capacity of each channel can be increased independently, and user must conduct the test by yourself.)

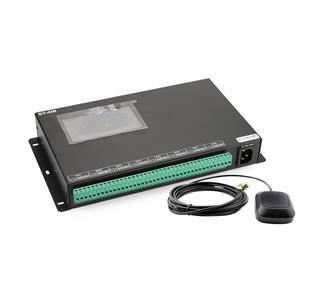

GPS ANTENNA NOTES

User can also purchase GPS marine antenna with standard SMA interface according to on-site engineering requirement. The longer the antenna is, the more difficult to search satellite.

Notes:

a) GPS Antenna should be installed in open space to guarantee view angle within 30 degree, there is no big shades (such as trees, iron towers, buildings etc.). GPS Antenna should be more than 2m away from the metal objects which size is bigger than 20cm.

b) Due to the satellite appearing on the equator more than other places, it preferably put the GPS antenna in the south of location for the north hemisphere.

c) Please don’t put GPS antenna around other transmitting and receiving equipment to avoid radiation of other transmitting antenna facing to GPS antenna. Please keep them 2m away with each other.

Cover material: Iron

Input voltage: AC 100V～240V

Output signal: TTL & RS-485 * 8 channels Pixel driven: Single chip: 960 pixels ×8 channels, Single-wire: 1024 pixels ×8 channels,

standard DMX512: 168 pixels ×8 channels, extensible DMX: 336 pixels ×8

channels,

Breakpoint resume: 960 pixels ×8 channels.

Output power: ＜3W

Working temperature: -15℃～60℃

Relative humidity: ≤50% RH

IP grade: IP20 (Prevent people from touching the components inside electrical appliance,

prevent object which diameter is more than 12.5mm from getting in, no special protection to water or moisture.)

Working environment: 1. Please do not install the controller in magnetic, high pressure, high temperature or seriously wet environment.

2. Please do connect the earth safely in order to reduce risks of fire and damage which cause by short circuit.

3. Please ensure AC100-240V power supply is used, and same polarity is connected between transformer and controller in order to guarantee the proper supply voltage.

4. No waterproof function in the control system, please pay attention on rainproof and waterproof during installing.

Net weight: 2.05 kg

Size: L285*W156*H45
