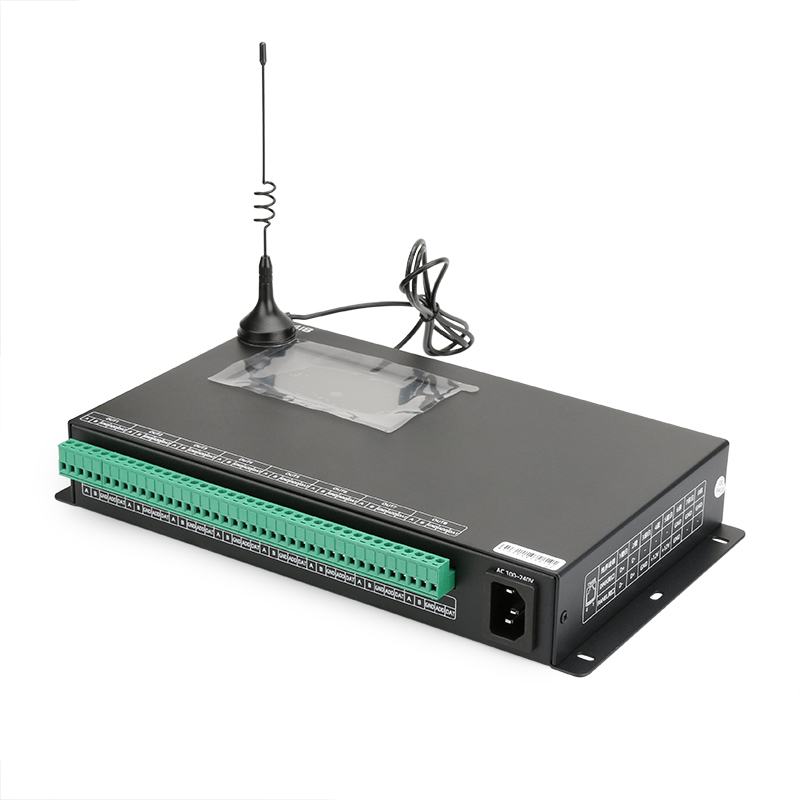

SY418 series controller are powerfull SD card programmable pixel light controller,

It has 8CH output , support DMX and common SPI.

it can control up to 1024 pixel per channel, total more than 8,000 pixel, and many SY418 can be connected together to get more pixel suppport,

programmed by free windows software LEDplayer3,

has common picture/video mode, and musican mode,

it can control light auto just brightness or playing speed according to vioce around,

it also has timer function, can control light to run selected mode at the select time.

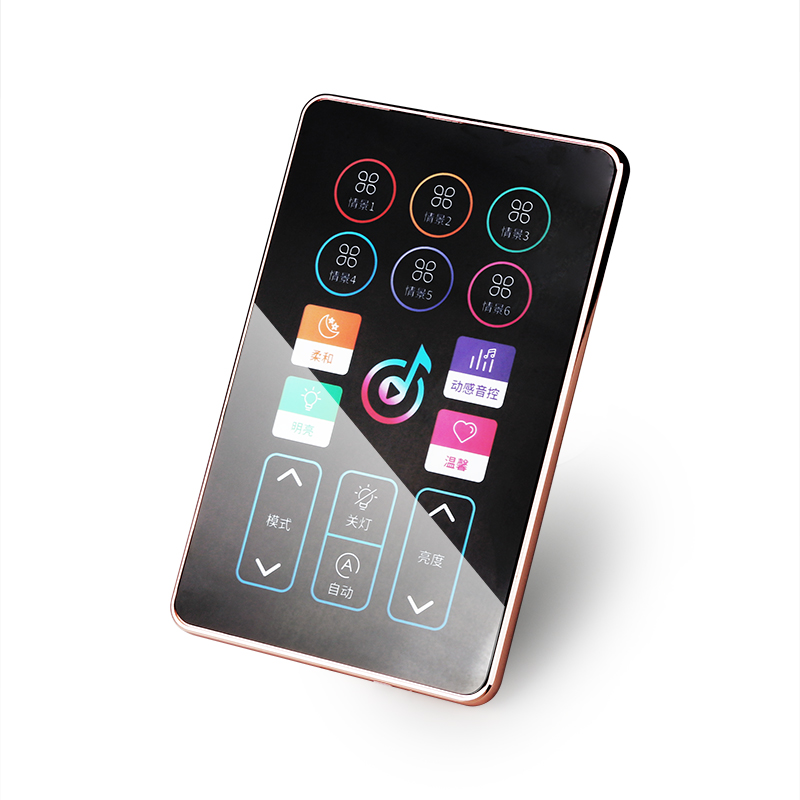

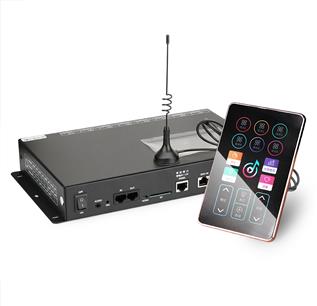

with this wall touch panel, the panel almost take place of the screen on the controller, you can easy chagg mode, brightness, speed on the panel.

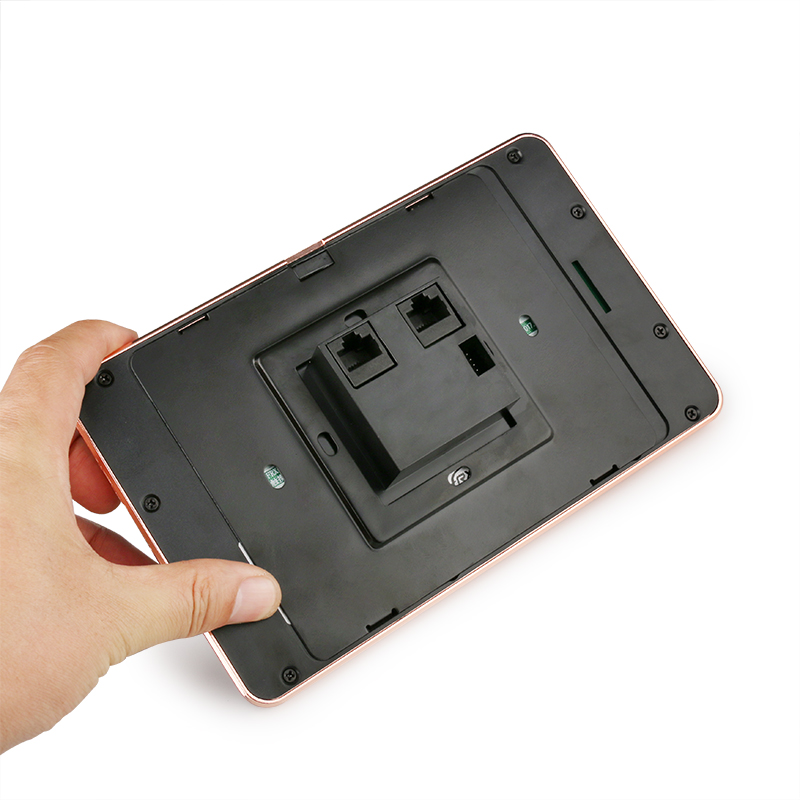

only one RJ45 is needed between main controller and touch panel,

the touch panel is power by main controller, and send data to main controller at the same time.

Cover material: Iron

Input voltage: AC 100V～240V

Output signal: TTL & RS-485 * 8 channels Pixel driven: Single chip: 960 pixels ×8 channels, Single-wire: 1024 pixels ×8 channels,

standard DMX512: 168 pixels ×8 channels, extensible DMX: 336 pixels ×8

channels,

Breakpoint resume: 960 pixels ×8 channels.

Output power: ＜3W

Working temperature: -15℃～60℃

Relative humidity: ≤50% RH

IP grade: IP20 (Prevent people from touching the components inside electrical appliance,

prevent object which diameter is more than 12.5mm from getting in, no special protection to water or moisture.)

Working environment: 1. Please do not install the controller in magnetic, high pressure, high temperature or seriously wet environment.

2. Please do connect the earth safely in order to reduce risks of fire and damage which cause by short circuit.

3. Please ensure AC100-240V power supply is used, and same polarity is connected between transformer and controller in order to guarantee the proper supply voltage.

4. No waterproof function in the control system, please pay attention on rainproof and waterproof during installing.

Net weight: 2.05 kg

Size: L285*W156*H45
