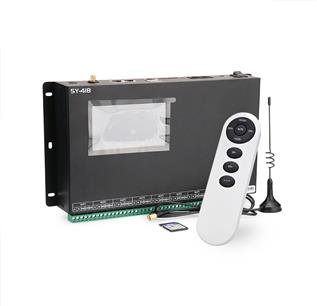

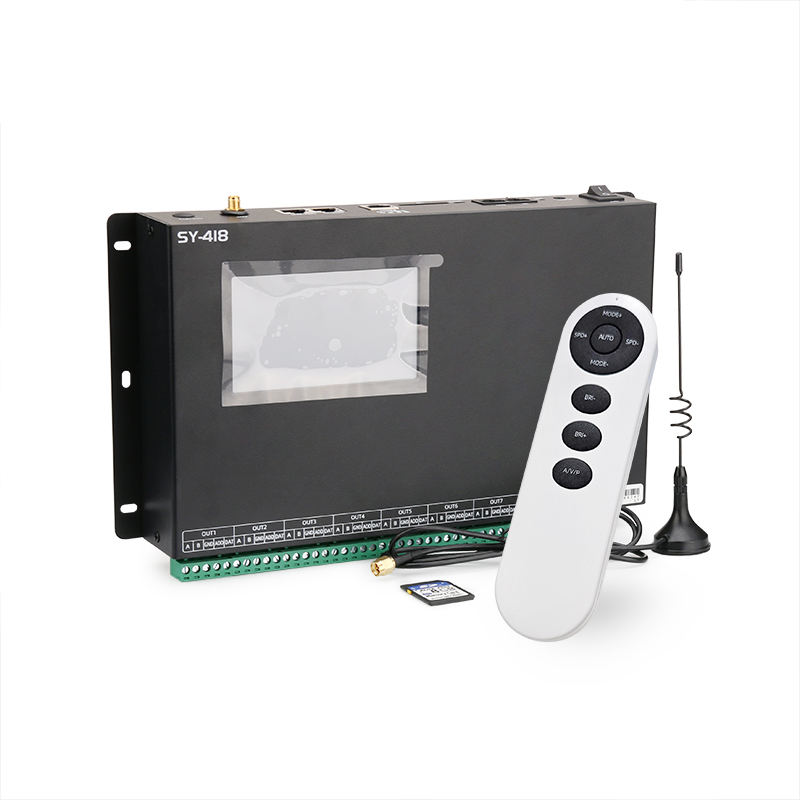

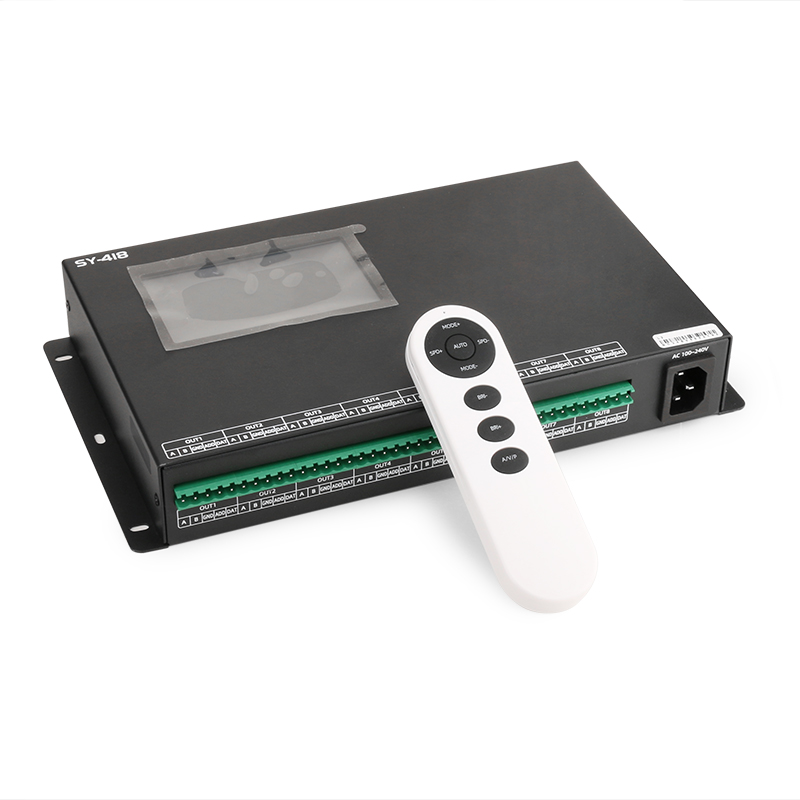

The SY418 is a programmable 8-channel multi-color lighting controller that supports single-color, dual-color, RGB, RGBW, and other lighting fixtures.

It supports common single-wire control ICs such as the 1903, 2811, and 16703.

It also supports common DMX differential ICs such as the UCS512, TM512, and SP18512.

It uses the free included effects editing software and runs on Windows 7/8/10/11.

The controller supports voice control, automatically adjusting the lighting's zero-degree and speed based on the rhythm of sound.

The controller has a built-in Bluetooth module for remote control via a remote control or Bluetooth app.

Cover material: Iron

Input voltage: AC 100V～240V

Output signal: TTL & RS-485 * 8 channels Pixel driven: Single chip: 960 pixels ×8 channels, Single-wire: 1024 pixels ×8 channels,

standard DMX512: 168 pixels ×8 channels, extensible DMX: 336 pixels ×8

channels,

Breakpoint resume: 960 pixels ×8 channels.

Output power: ＜3W

Working temperature: -15℃～60℃

Relative humidity: ≤50% RH

IP grade: IP20 (Prevent people from touching the components inside electrical appliance,

prevent object which diameter is more than 12.5mm from getting in, no special protection to water or moisture.)

Working environment: 1. Please do not install the controller in magnetic, high pressure, high temperature or seriously wet environment.

2. Please do connect the earth safely in order to reduce risks of fire and damage which cause by short circuit.

3. Please ensure AC100-240V power supply is used, and same polarity is connected between transformer and controller in order to guarantee the proper supply voltage.

4. No waterproof function in the control system, please pay attention on rainproof and waterproof during installing.

Net weight: 2.05 kg

Size: L285*W156*H45

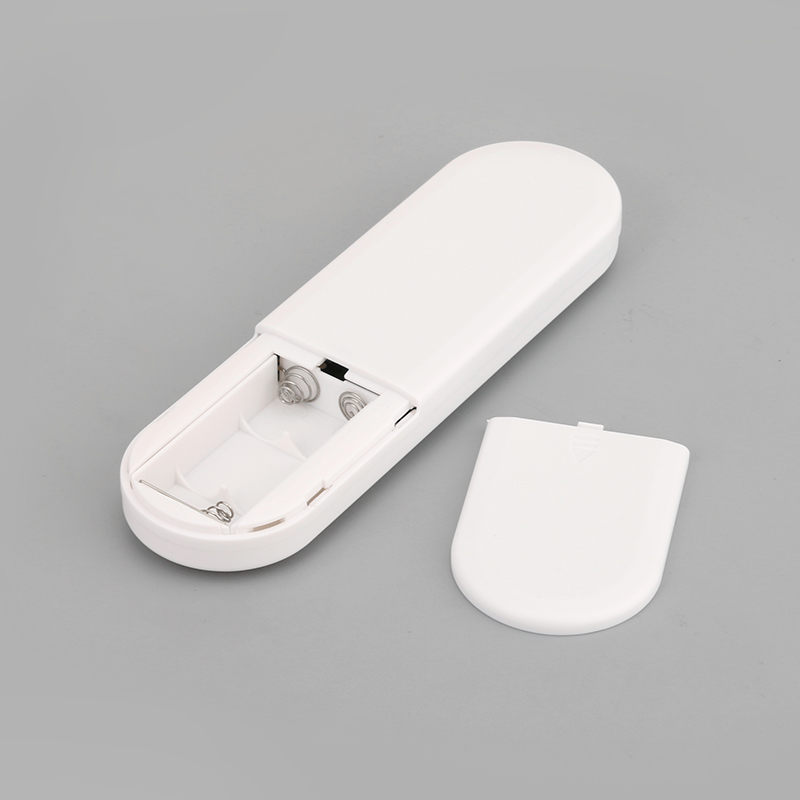

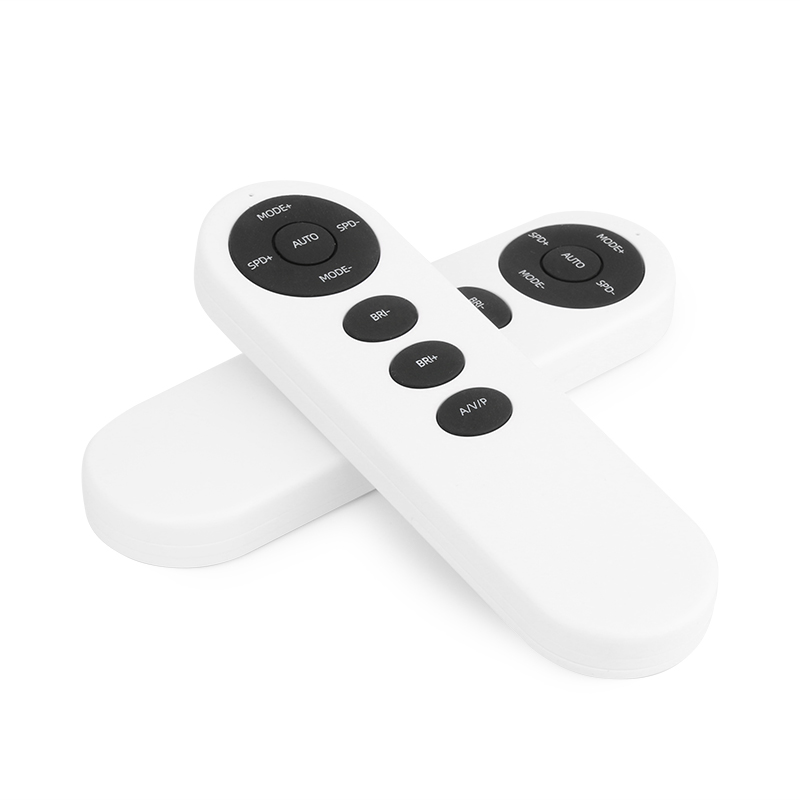

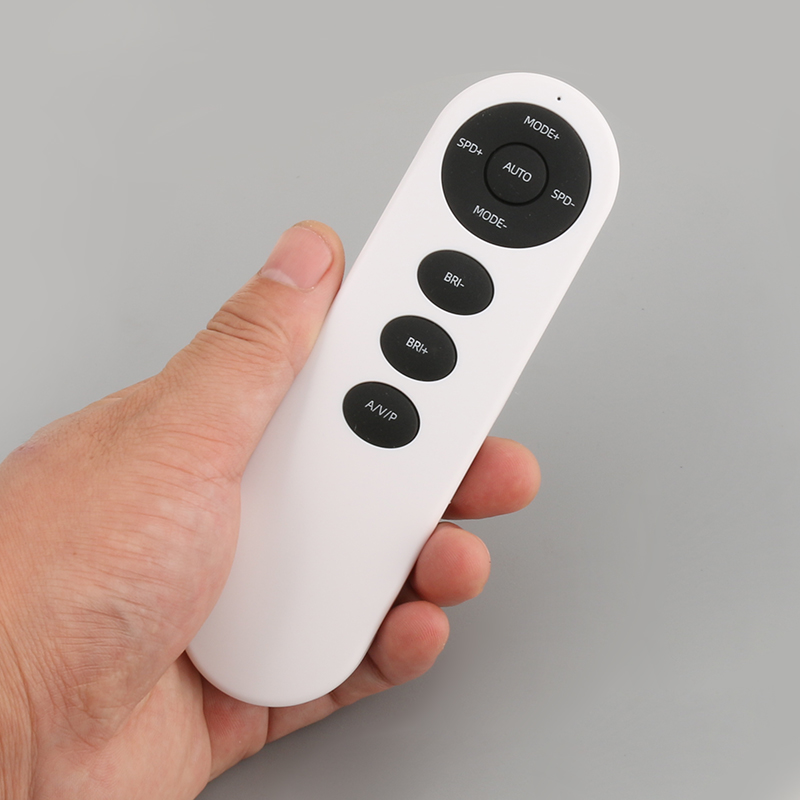

remote:

power: AAA dry batteries
