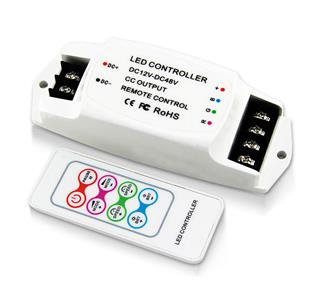

Constant Current RGB Controller（BC-361-CC）

PRODUCTS

Constant Current series Your current location is: Home> Products

1. Automatically adapt to LED light which works from DC12V-48V. 2. on-off controller function. 3. 3 channels RGB full color control, 350MA or 700MA output. 4. 17 fantastic modes such as color smooth, color skipping, horserace, strobe, etc. 5. Can choose a changing speed and brightness in a certain mode independently. 6. Can stop at static single color, speed & brightness adjustable at pause status. 7. In disorder station can reset to factory setting. 8. Working with power repeater to expand power output unlimitedly. 9. Power loss memory function.

Model：WU-BC-361-CC

This Constant Current Multi-function RGB Controller is a universal RGB controller for entire color changing, which adopted high-performance microchip and the most advanced PWM (Pulse-Width Modulation) controlling technology at present. It can control all 4-pin 3-loop LED RGB full color lights. This series with RF remote controller and it is available only within the valid range.

Feature function:

1. Automatically adapt to LED light which works from DC12V-48V.

2. on-off controller function.

3. 3 channels RGB full color control, 350MA or 700MA output.

4. 17 fantastic modes such as color smooth, color skipping, horserace, strobe, etc.

5. Can choose a changing speed and brightness in a certain mode independently.

6. Can stop at static single color, speed & brightness adjustable at pause status.

7. In disorder station can reset to factory setting.

8. Working with power repeater to expand power output unlimitedly.

9. Power loss memory function.

Product parameter：

Model	BC-361-350	BC-361-700
Input voltage	DC12V-DC48V	DC12V-DC48V
Max current load	350MA/CH×3	700MA/CH×3
Driving LEDs/ CH	12V: 1-3pcs 1W LED 24V: 1-6pcs 1W LED 36V: 1-9pcs 1W LED 48V: 1-12pcs 1W LED	12V: 1-3pcs 3W LED 24V: 1-6pcs 3W LED 36V: 1-9pcs 3W LED 48V: 1-12pcs 3W LED
Scale levels	4096 level/CH×3	4096 level/CH×3
Product Dimension	L125xW45xH36(mm)	L125xW45xH36(mm)
Weight (G.W)	145g	145g
Remote control distance	30m with obstacles; 60m without obstacles	30m with obstacles; 60m without obstacles
Control type	Common Anode	Common Anode

Do you need any more help? Please leave message to us!

Product parameter：

Model	BC-361-350	BC-361-700
Input voltage	DC12V-DC48V	DC12V-DC48V
Max current load	350MA/CH×3	700MA/CH×3
Driving LEDs/ CH	12V: 1-3pcs 1W LED 24V: 1-6pcs 1W LED 36V: 1-9pcs 1W LED 48V: 1-12pcs 1W LED	12V: 1-3pcs 3W LED 24V: 1-6pcs 3W LED 36V: 1-9pcs 3W LED 48V: 1-12pcs 3W LED
Scale levels	4096 level/CH×3	4096 level/CH×3
Product Dimension	L125xW45xH36(mm)	L125xW45xH36(mm)
Weight (G.W)	145g	145g
Remote control distance	30m with obstacles; 60m without obstacles	30m with obstacles; 60m without obstacles
Control type	Common Anode	Common Anode

Do you need any more help? Please leave message to us!
