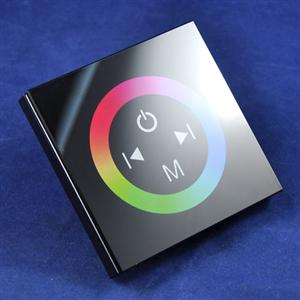

Touch Panel Full-color Controller ,DC12V -24V ,288W ,3CH ,retail ,wholesale
Summarization
Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12-24V
● output: 3 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H37 mm
● packing size: L90 Χ W90 Χ H40 mm
● net weight: 125g
● gross weight: 185g
● static power consumption: <1w<><1w<>
● output current: <4A( each channel )
● output power: 12V<144w,24v<288w
● working temperature: -20-60 ℃
● supply voltage: DC12-24V
● output: 3 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H37 mm
● packing size: L90 Χ W90 Χ H40 mm
● net weight: 125g
● gross weight: 185g
● static power consumption: <1W
● output current: <4A( each channel )
● output power: 12V<144W,24V<288W
● place of origin : Guang Dong ,China
● brand name : worlduniqueen
