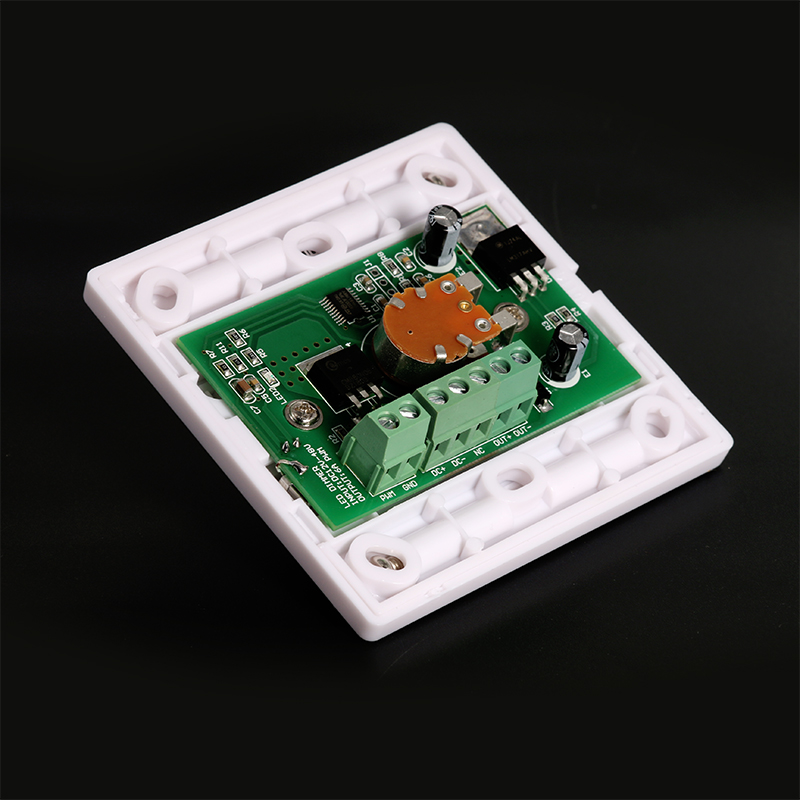

An intelligent dimmer specially designed for LED lighting, it adopted the most advanced PWM (pulse-width-modulation) digital brightness-adjusting technology that enables you adjust the brightness with the infinite knob and also can adjust the brightness far away with the IR wireless controller. It is suitable for installation of commercial and household 86-style socket, you can install it visibly outside the wall or invisibly inside the wall, it can meet different brightness requirements at different time with the dimmer, also it can extend the LED life tenure and save energy, suitable to dim hi-power or low-power LED lamps.
Feature function:

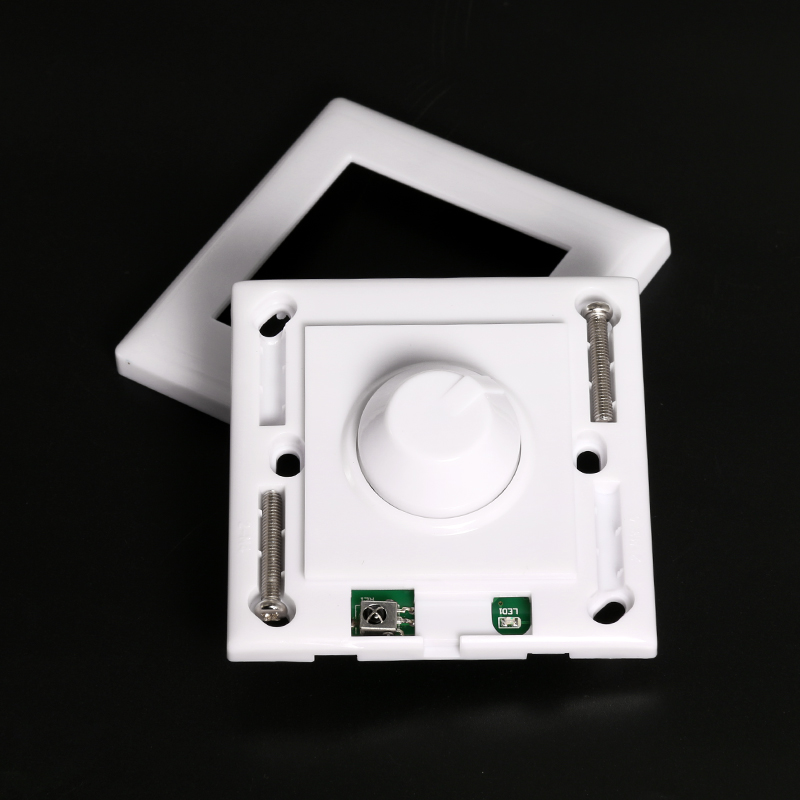

1. Standard 86-style socket, easy to install.

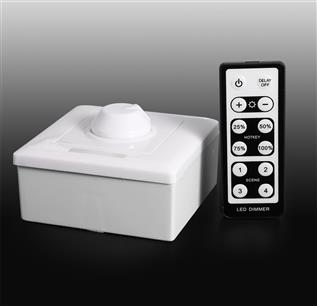

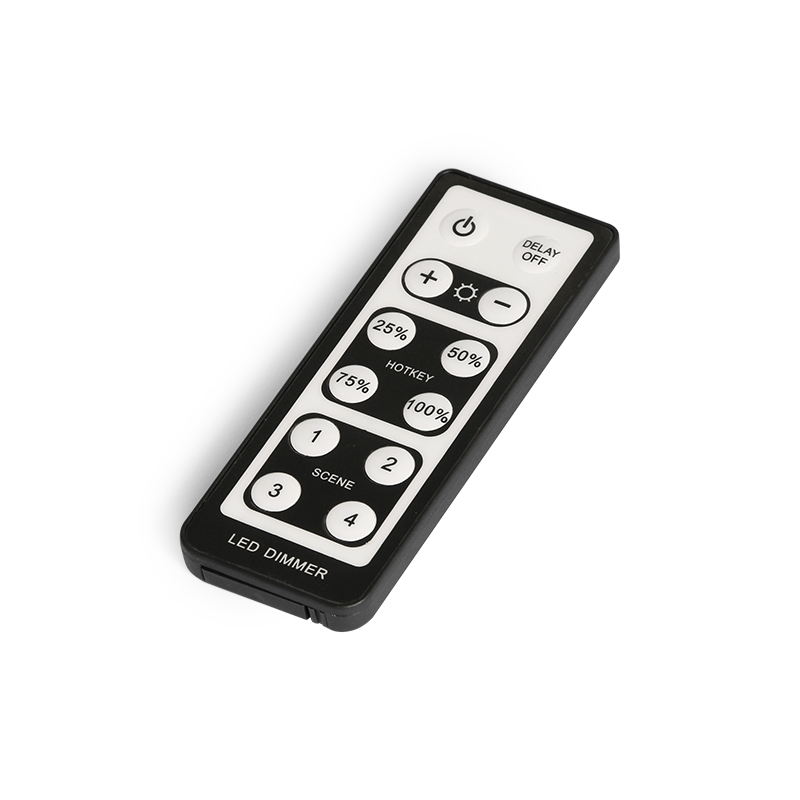

2. Infinite knob style dimming and wireless IR remote dimming, easy to operate.
3. Real 0~100% brightness adjust, 4096 scale levels. Comfort to human eye visual characteristic. Lamplight soft and stable, without flickers, welcome to compare.
4. Welcome to compare;
5. Delay OFF button, fluorescent indicator, users friendly.25%, 50%, 75%, 100%,
4. Brightness shortcuts.
6. Automatically adapt to DC12-48V working voltage.
7. Can be equipped with power repeater to expand power.
8. Power loss memory function.
Model | BC-320-6A |
Input power | DC12V-DC48V |
Output signal | Constant voltage PWM |
Max load current | 6A |
Output power | 72W/144W/216W/288W(12V/24V//36V/48V) |
Dimming range | 0~100% |
Grey step | 4096 levels |
Switch size | L87×W87(mm) |
Package size | L96×W91×H61(mm) |
