AC85-265V RGB DMX Touch Panel Dimming Multi-Zone Controller

PRODUCTS

Wall 86/120 Type Controller Your current location is: Home> Products

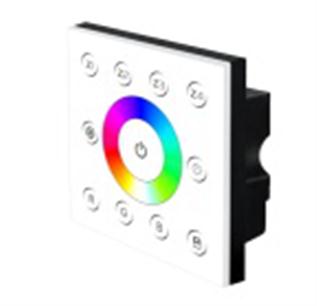

Wall Mounted Multi-Zone RGB DMX512 Touch Panel Controller for LED Light

The product can provide a secure, facilitate and low-cost solution for LED lighting projects. It has a simple fashion design, comfortable hand feeling, and user friendly. Also, it has superior materials and exquisite workmanship, can bring more convenience.

Model：WU-P7X

Multi-Zone RGB DMX512 Touch Panel Controller for LED Light
Summary:
Touch panel dimmer is a new high-end controller and it is beautiful and fashionable in appearance. Can be wall mounted installation. It is used for controlling a variety of lamp which source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, panel lights etc., it has many advantages such as convenient to connect, easy to use and can satisfy the need of customers.
Specifications:
Input voltage
AC85-265V
Output signal
DMX512 12 channel
Dimming range
5%-100%
Working temperature
-20℃～55℃
Product dimension
L86*W88*36mm
Weight
230g
Details:
Photo for reference:

Do you need any more help? Please leave message to us!
Input voltage: AC85-265V
Output signal: DMX512 12 channel
Dimming range: 5%-100%
Working temperature: -20℃～55℃
Product dimension: L86*W88*36mm
Weight: 230g

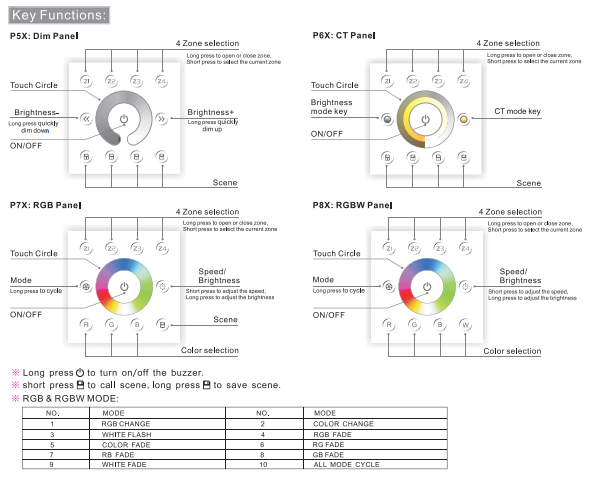

10 modes of light change
