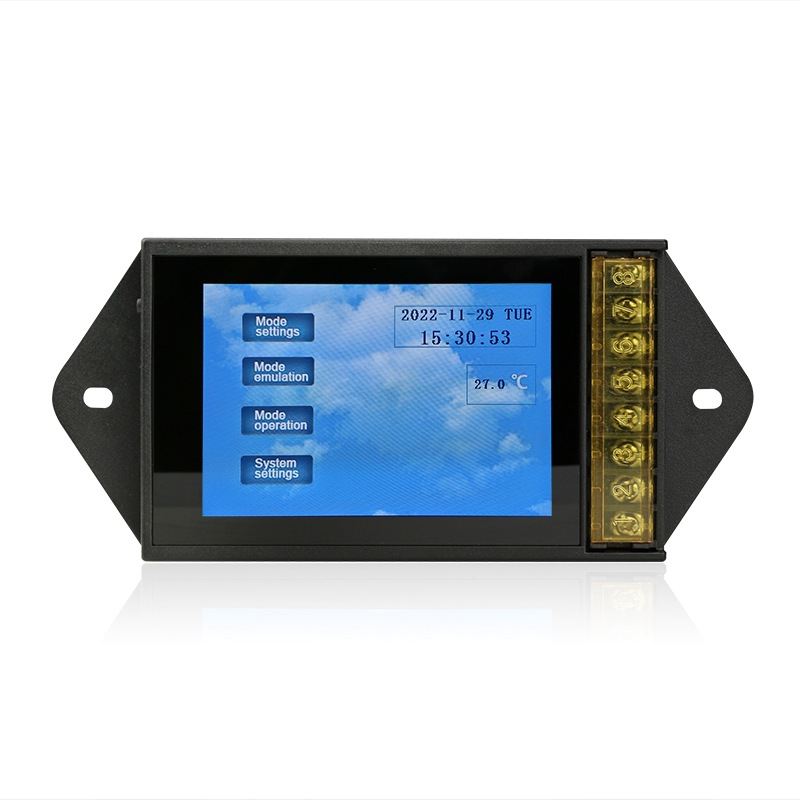

Touch screen full color Programmable Timer controller
Touch screen full color Programmable Timer controller
Model：NL502

  • Product description

    Touching the full-color programmable time controller can make the load output change with time.Customers can customize the schedule mode they want through the display screen,edit, preview, delete schedules and other functions. The time controller cancontrol the change of up to five load LEDs. The adjustment of lighting changescan be applied to plant lights, light box advertisements, stage sets, homedecoration, etc





    Do you need any more help? Please leave message to us!

  • Technical parameters

    1 Working temperature：-20-60℃

    2 Supply voltage：DC12-24V

    3 static power：< 1W

    4 net weight：210g

    5 gross Weight：350g

    6 External dimension：150MM*70MM*21MM

    7 Packing dimension：185MM*180MM*54.8MM

    8 Output: 5 channels

    9 Max load current：20A

    10 Connecting Mode：Common anode

    11 the controller output frequency of 600 hz
