DC12-24V 3 Channels 18A RF LED RGB Music-Audio Controller w/ RF Remote
Features:
1. Controlled by radio-frequency capacitive touch, effective control distance up to 20 m
2. Used convenient at night with LED backlight
3. With 3.5MM audio,non-interfered music mode works better
4. Color changing is more exquisite with PWM
5. With Dual channel output, the maximum power is 432W
6. Easier to white mode with intelligent switch
7. 20 classic modes changing follow your heart
8. 15 music modes make every moment rhythmical
9. Available for all sorts of constant voltage RGB lamps,such as RGB strip,soft strip,RGB panel lights,RGB light modules etc

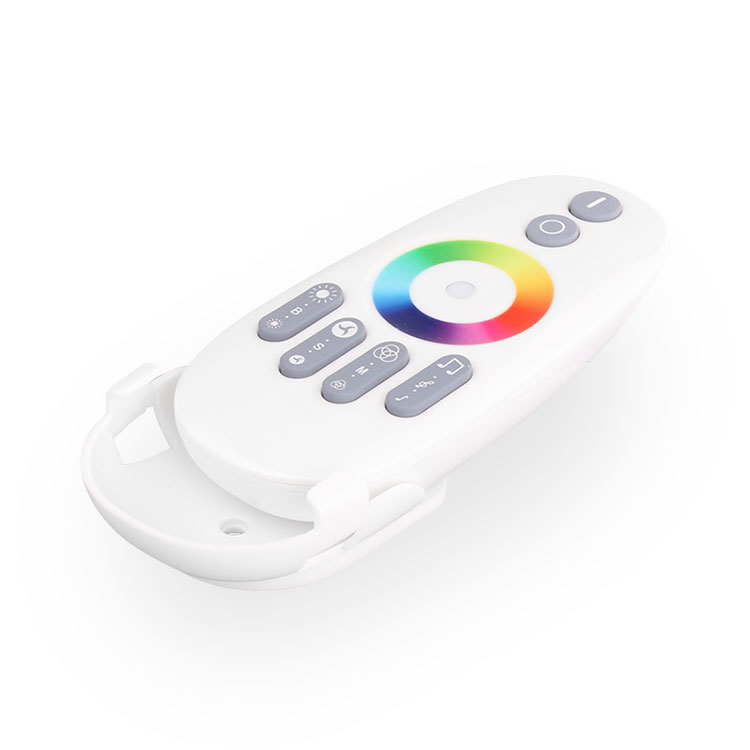

10. Remote with special fixed seat,convenient for users
Specifications:
Working voltage | DC12-24V |
Working temperature | -20-60°C |
Output current | Max 18A |
Sound control | 70dB |
Battery for the remote | AAA*2 |
Remote standby power | 0.08mW |
Remote operate power | 6mW |
Remote distance | 20m |

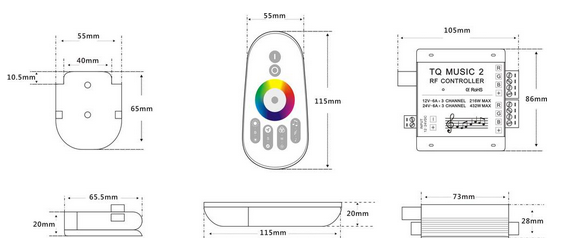

External dimension:
Typical Application:

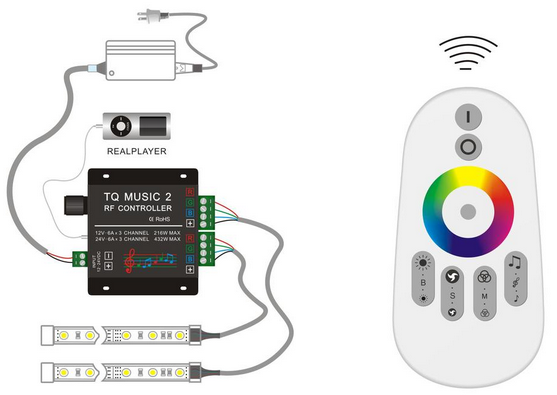

1.Connect 2 group RGB LED Strip Light

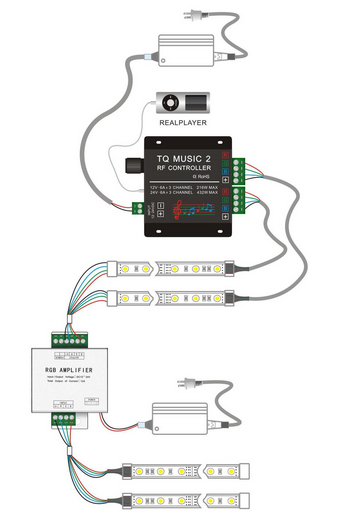

2. Connect more than 2 rolls RGB led strip light

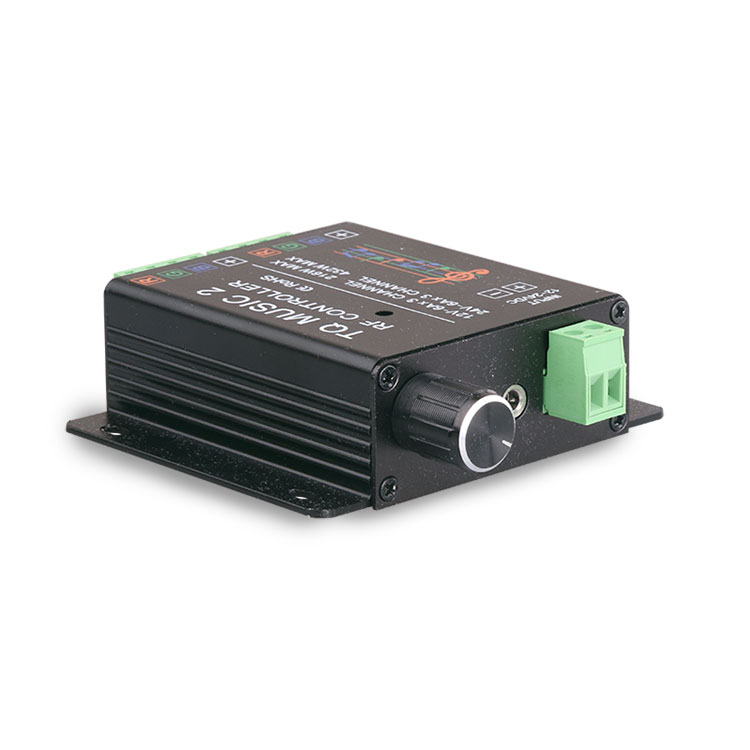

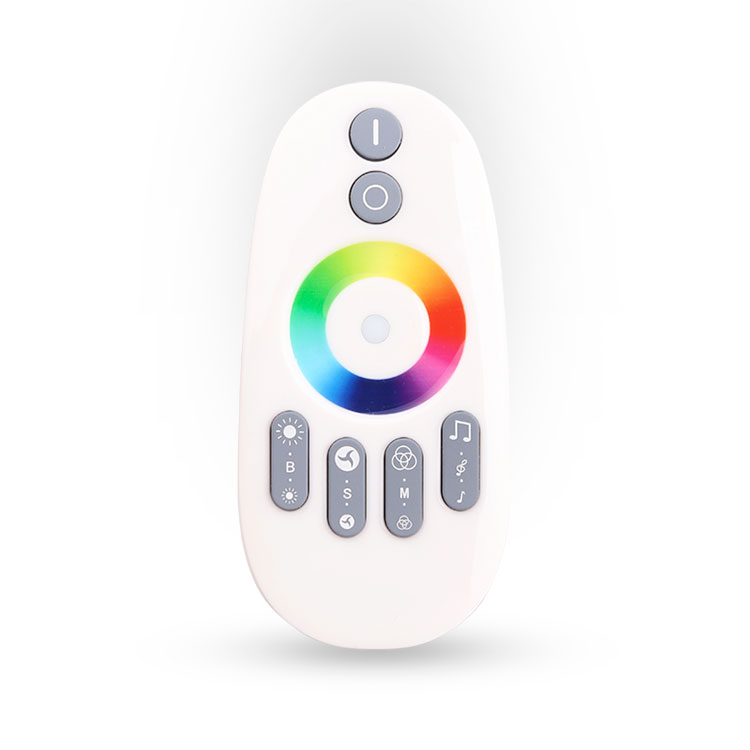

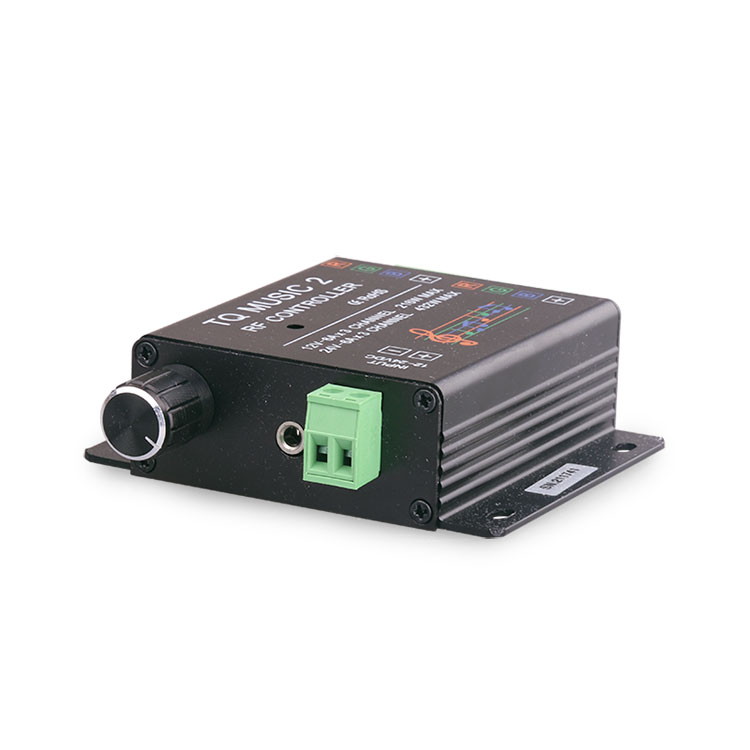

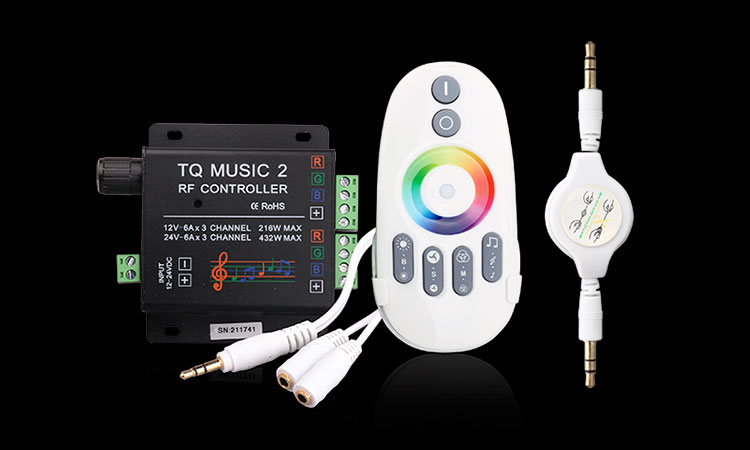

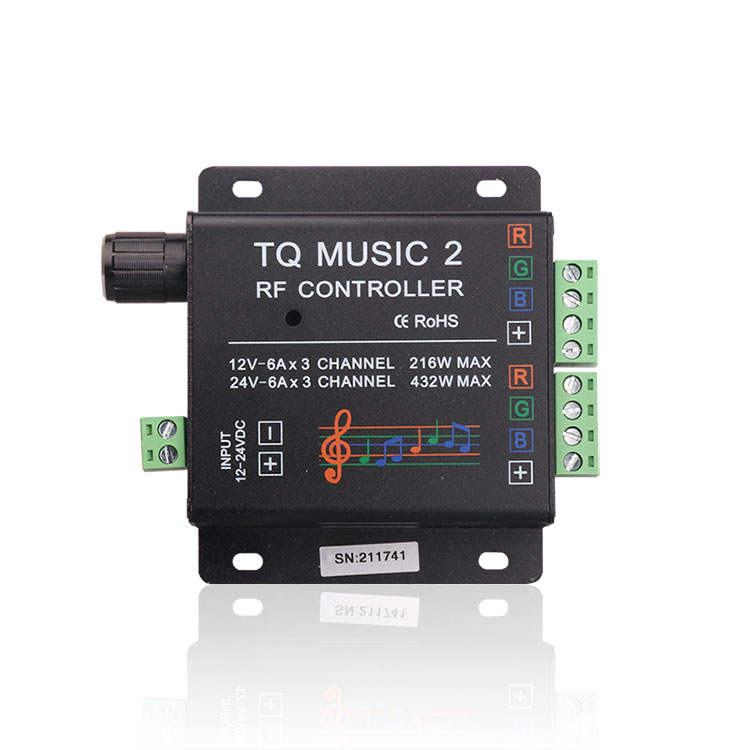

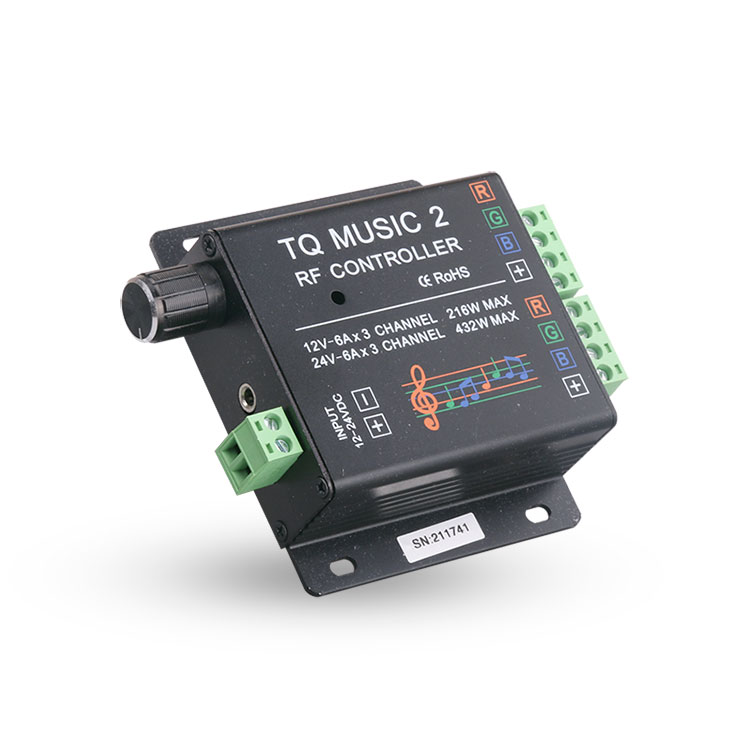

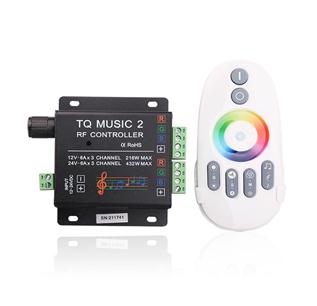

Photos for Product:
