Product Summarization
This controller is a WiFi to DMX controller independently developed by our company. Its main functions are dimming of 512 channels, setting and calling of scenes and simple dynamic modes on the mobile APP panel, and lighting control for bars, stages, venues and other places in some small areas. External DMX signal can also be connected to switch between internal and external DMX through the switch on the controller. The main features of the product are as follows:
Technical Feature
1. Music mode, 170 RGB pixels of microphone or audio signal jump with the music;
2. 512 channels slide dimming, you can also select the overall brightness dimming of the channel
brightness;
3. 512 channel static brightness scene editing and calling;
4. 512 channel dynamic mode editing and calling;

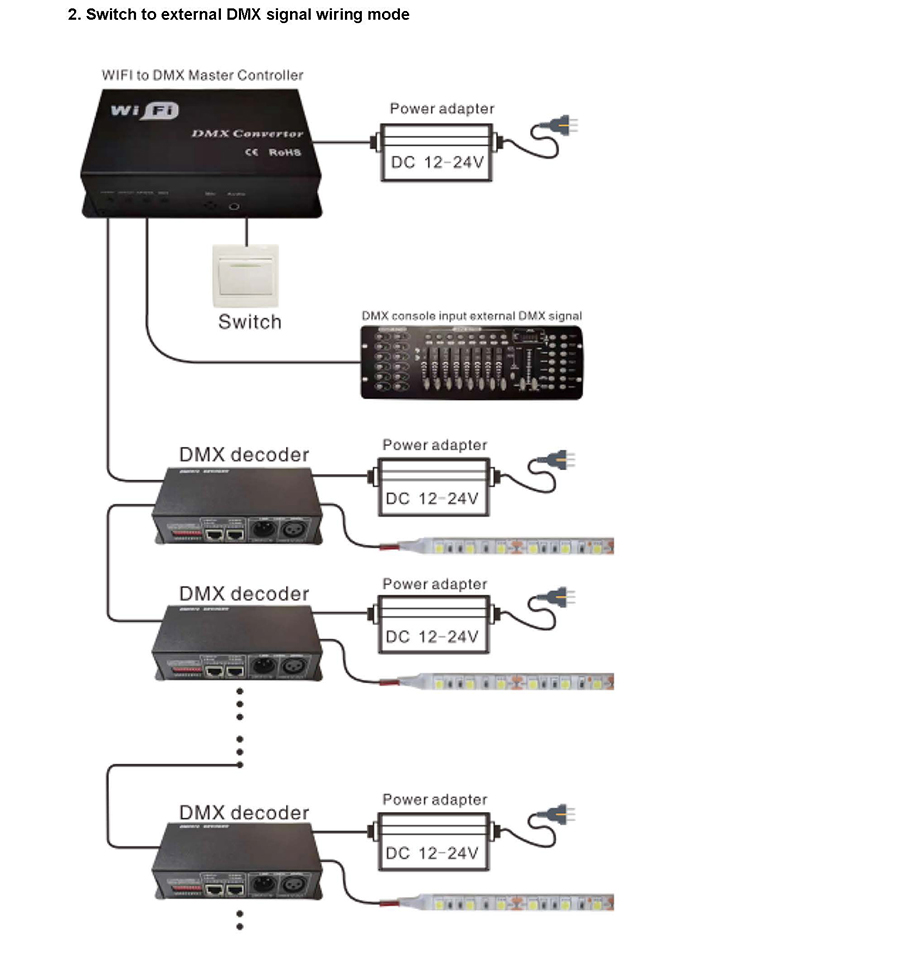

5. To switch the output signal, switch the internal and external DMX signal through the switch interface;
6. Switch between the direct connection and routing modes of the mobile phone and the controller;
Software technical parameters
1.1Control software：
1. Name: DMX512
2. Runtime platform: IOS and Android system
3. Language: Automatically switch between Chinese and English according to the mobile phone software language system
4. Category: communications
5. Other: Free, no plug-ins
Controller technical parameters
1. Working voltage: DC12V-24V
2. Working temperature: -20-60℃
3. Working Power consumption: less than 1.5W
4. Output: DMX512 signal (address 1-512)
5. Communication protocol: Art-net, DMX512
6. Net weight: 333g
7. Gross weight: 625g
8. External dimension: L146*W73*H38 mm
9. Packing dimension: L252*W180*H60 mm
