1. Summarization

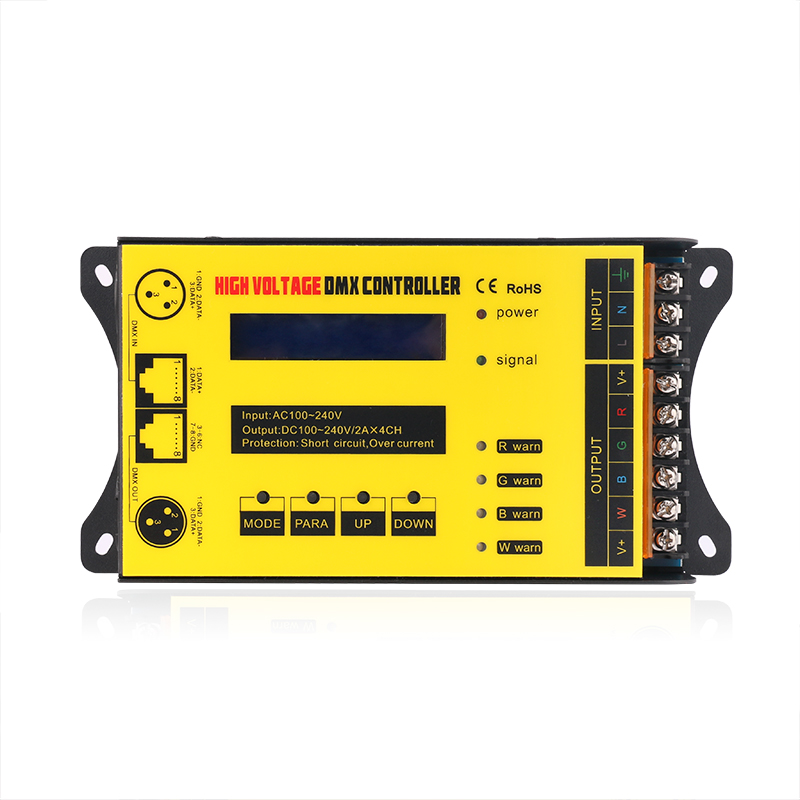

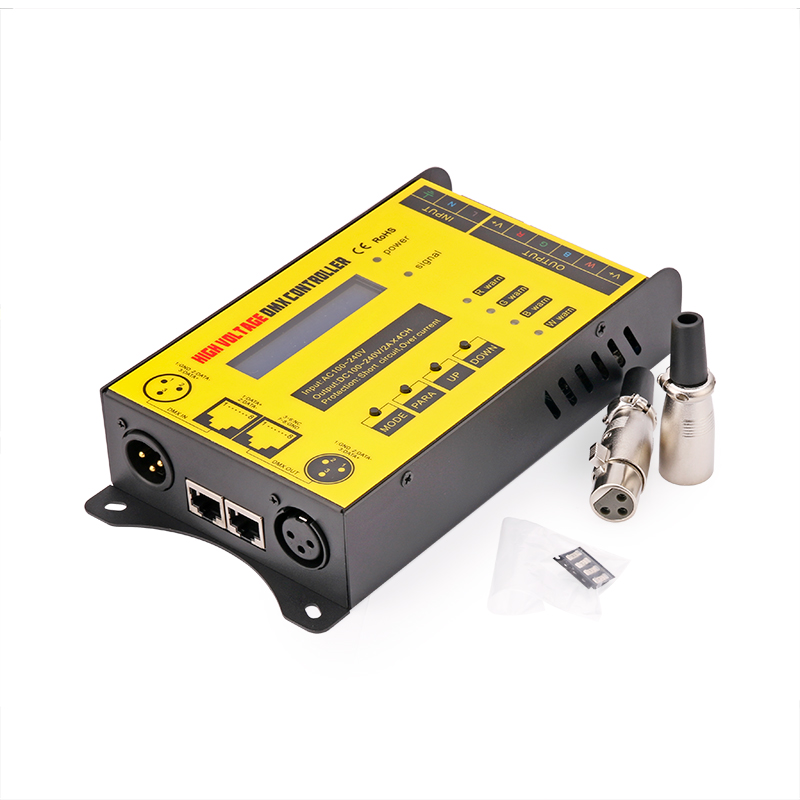

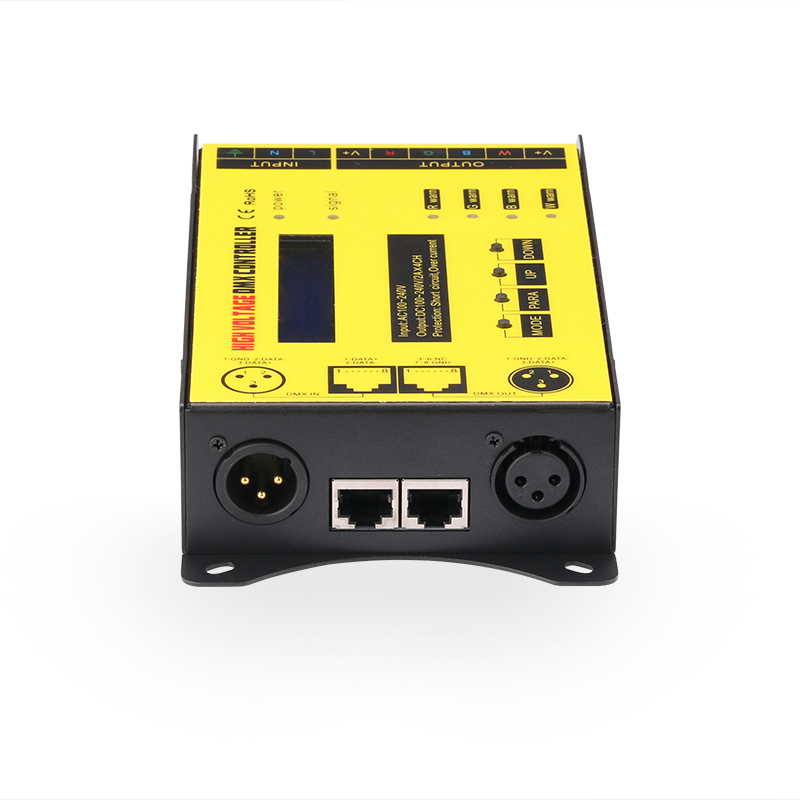

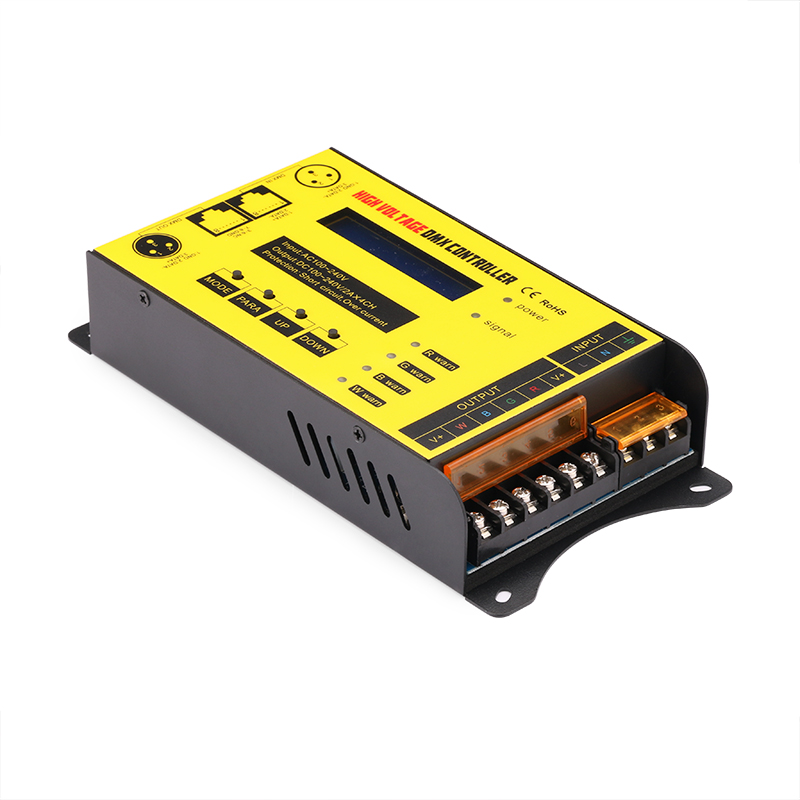

High-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface, used for control the RGB color change of 5 line 4 channels(common anode) LED lamps, up to 34kinds of change programs to choose, at the same time can accept DMX-512 international standard digital control. Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc. method to work. According to the customer's actual demand, can achieve jumpy changing, gradual changing, stroboscopic such change effect.
2. Technical Parameters
Working temperature: -20-60℃
Power supply voltage: AC 100～240V 50/60HZ
Output voltage: DC 100～240V
Output connect way: common anode 5 line 4 channels

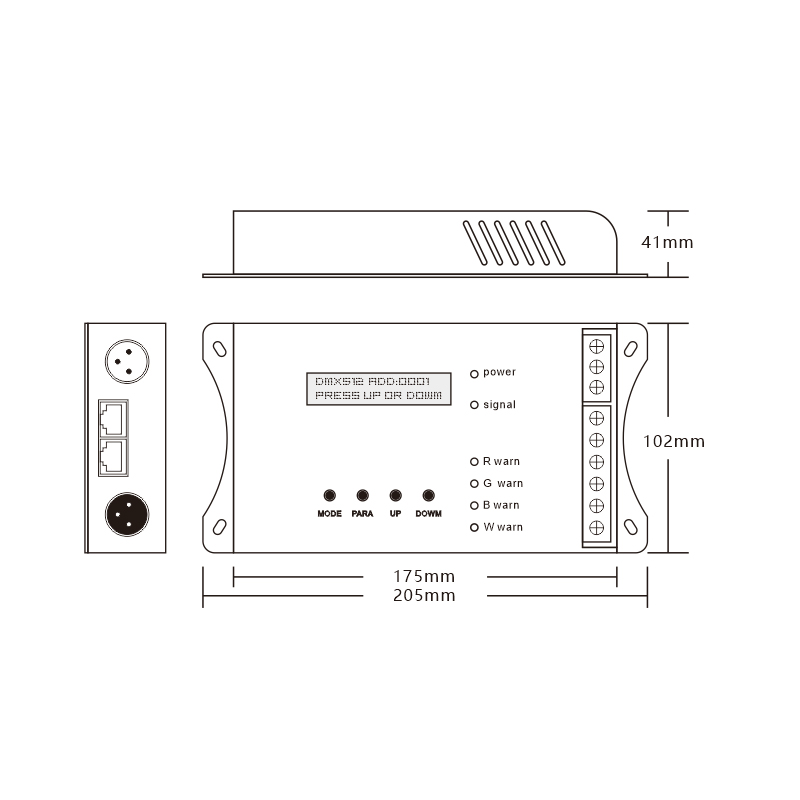

External dimension: L205*W103*H40 mm
Packing size: L225*W120*H55 mm
Net weight: 698.5g
Gross weight: 900g
Static power consumption: <2W
Maximum output current: 4*2A, each circuit has short-circuit protection function and 20% fuse protection for overload.
Dimming frequency: 980Hz
Maximum output power: 880W（input voltage: 110V），1760W（input voltage: 220V）
