• WS2813 a new version addressable LED based on WS2812B.

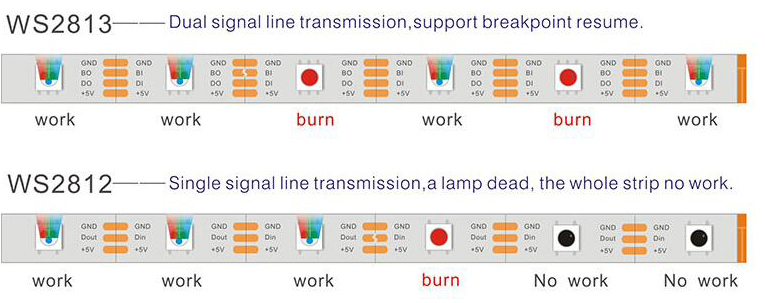

• The advantage is when 1pcs LED burn, the other LED will keep working.

• DC5V input, suggest inject Power from start and end of the reel.

• 3M adhesive attached on strip,waterproof version IP65,silicon tube coating.

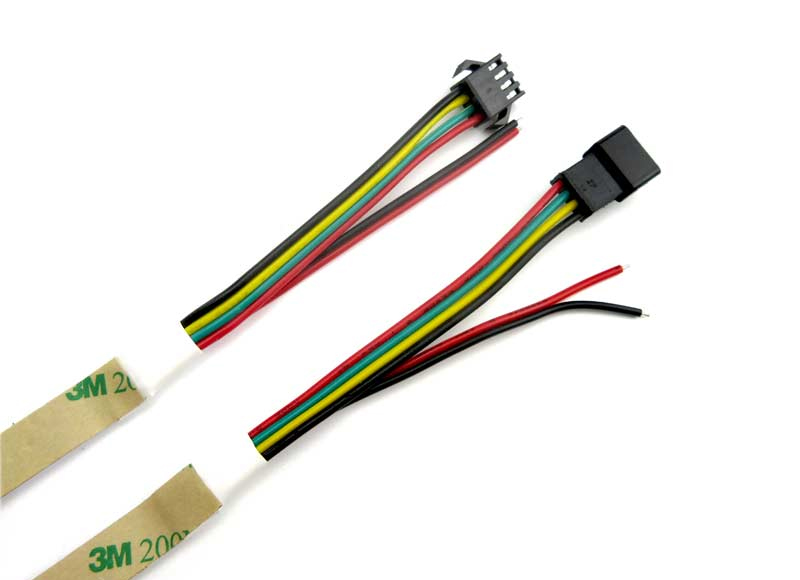

• With a pair of JST SM connector (IP20)

ws2813 led strip,breakpoint continue,one led broken,no affect other the behind led work.

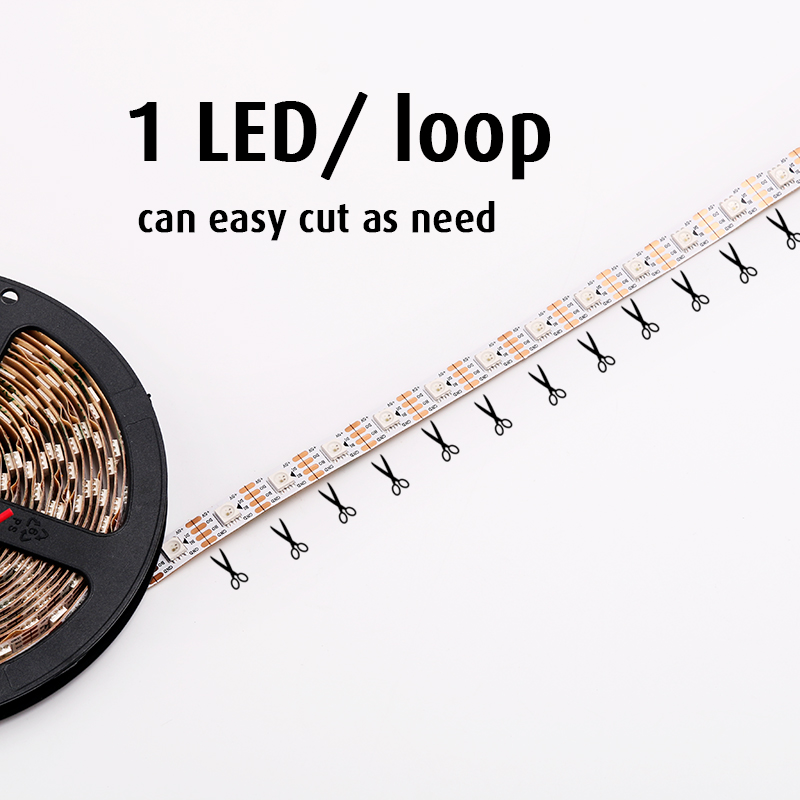

2. One WS2813 IC control ONE LED Chip; Users can cut the ribbon tape every 1 LEDs

3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;

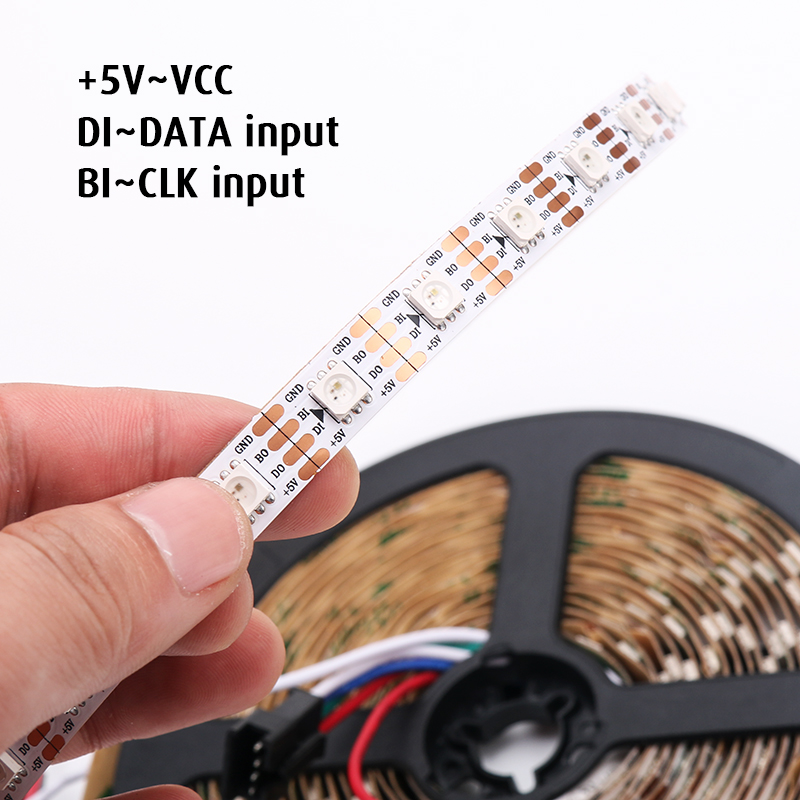

4. With 4pin LED lamps for the digital strip

5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.

This product can achieve effects and animations by controller , for example RGB seven colors gradual                         change,jumping change, Fading , flashing, strobing , color chasing, color sliding, Fading, Dimming mode etc.

6. This is the highest resolution for the moment

7. Controller, Power supply are available

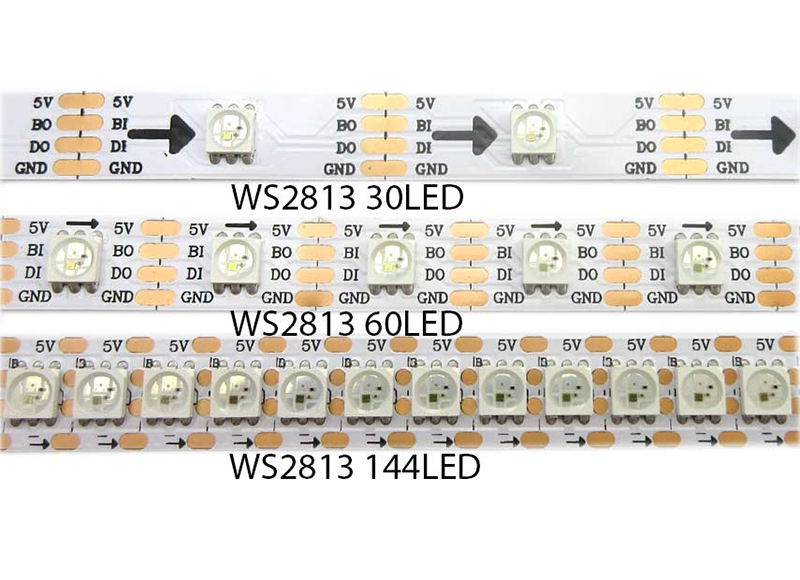

8. For WS2813b IC, we have DC5V; 30/60/96/144 leds per meter. Great choice.

9. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement   decorative lighting and so on.

10. Low voltage DC power supply safety, Convenience.

LED Chip:SMD5050 RGB LED chip

IC Chip:SMD 5050 RGB

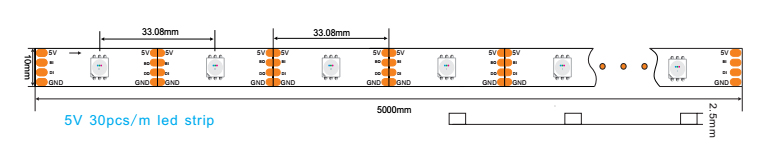

LED Quantity:30LEDs/m

Input Voltage:DC5V

Watts:9 W/M

IC Chip:WS2813 IC built-in

IP Rate:IP20(non-waterproof), IP65(Silicon-tube waterproof)

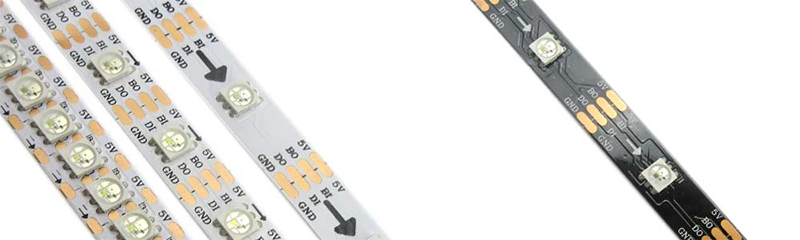

PCB Color:White PCB, Black PCB

View Angle:120°

Standard Reel Length:5meter/roll, also can be customized

PCB Width:10mm

Operating Temperature:-20 ~ +40°C

Storage Temperature:-40 ~ +80°C

Color:Addressable full color
