> Breakpoint continuous, In case of single pixel damage, the next pixels will keep working
> All electronic components are integrated in a 5050 lamp
> Achieve 256 level brightness display, and 16777216 color true color display port scanning frequency at 2 KHz/s.
> Transmission distance between any two points no more than 5 meters without any additional signal amplifying circuit.
> If the refresh rate is 30 frames / sec, the number of cascades is more than 1024 points.
> The speed of data transmission is up to 800Kbps. The color of the light is very consistent and the price ratio is high.

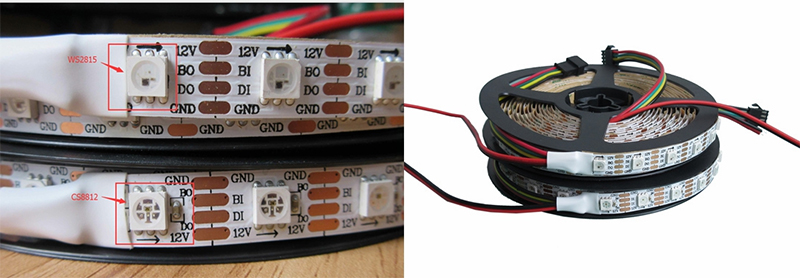

Different from CS8812,WS2815 is built in electric capacity

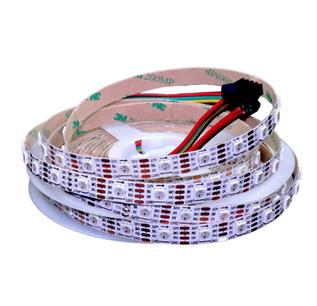

• DC12V individual addressable RGB led strip

• One led broken,other pixels still work normal

• Never worry one pixel broken will affect whole project

• 5 meters no voltage drop,can connect 10 meters.

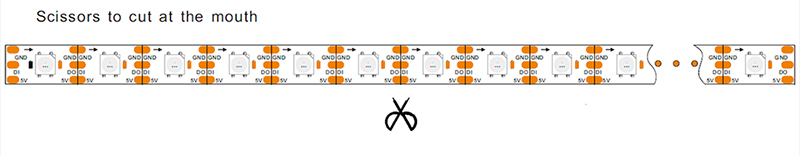

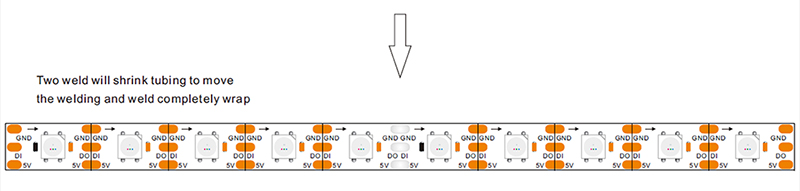

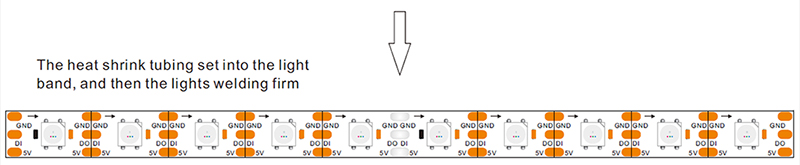

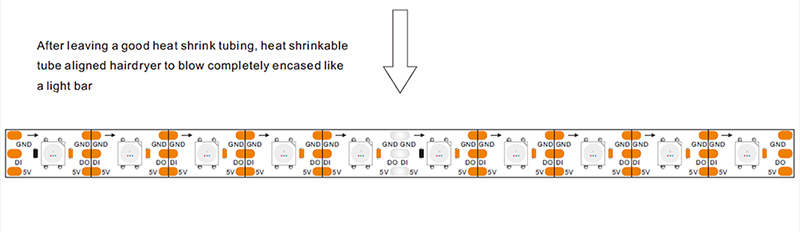

Strip cut schematic

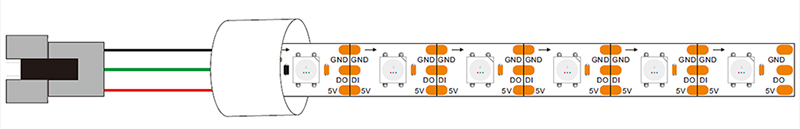

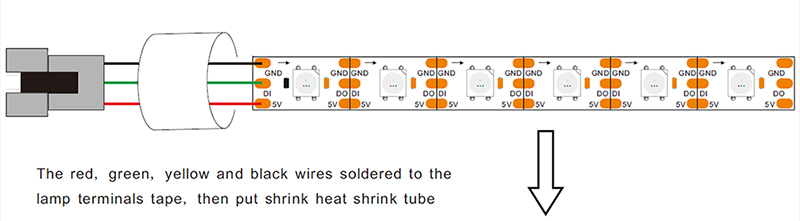

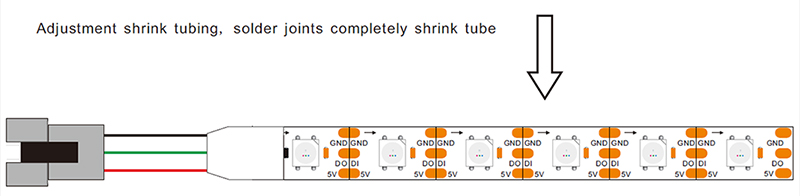

LED strip wiring diagram

LED strip wiring diagram

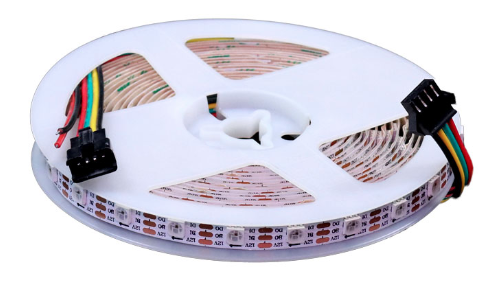

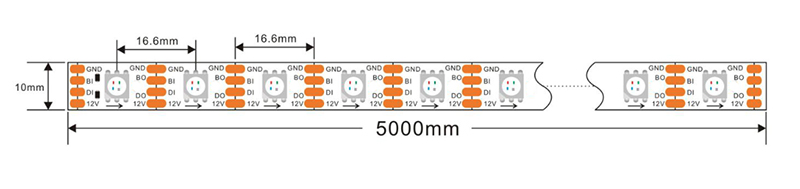

Model：WS2815-60leds/M

LED QTY：60LEDs/M

LED Type：SMD5050

Voltage: DC12V

Power:14.4W/M

Feature:12V Individually Control,IC built in

PCB Color:White

PCB Width:10mm

Other size:Can be customized

Waterproof:IP20(No waterproof),IP65(Silicone Glue waterproof),IP67(Tube waterproof),IP68(Silicone Glue+Tube waterproof)
