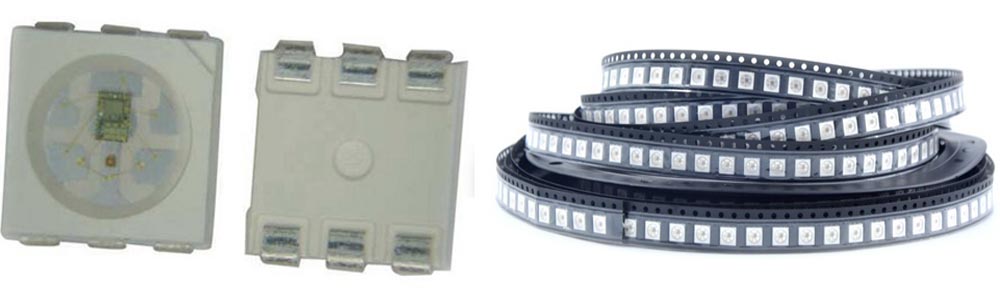

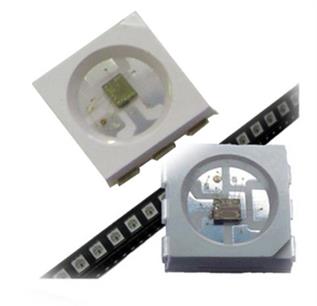

APA102C is a two-wire transmission channel three (RGB) driving intelligent control circuit and the light
emitting circuit in one of the LED light source control.
Products containing a signal decoding module,data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low power
consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment;

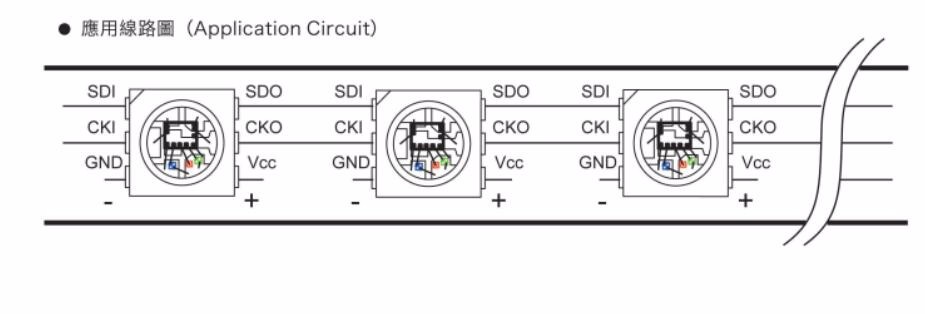

Use the doubleoutput, Data and synchronization of the CLK signal, connected in series each wafer output actionsynchronization.

Feature

   CMOS process,low voltage ,low consumption

    Synchronization of two-lane

    Choose positive output or negative RGB three-color LED output

    8 bit(256 level) color set ,5bit(32 level) brightness adjustment

    Build-20ma constant current output

    With self-detection signal build in support for continuous oscillation PWM

    output ,can be maintained static screen
