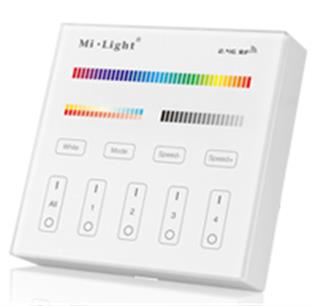

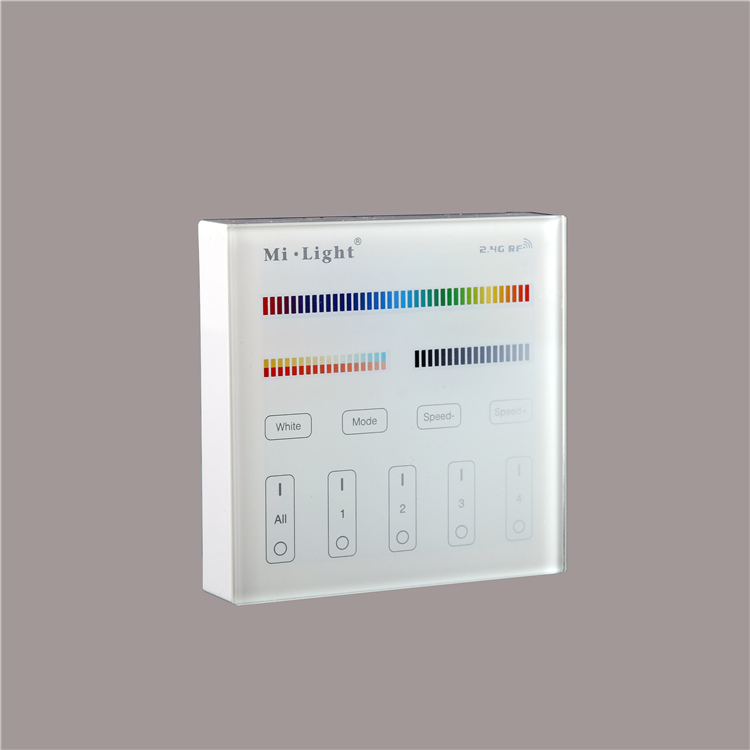

Wall Mounted 2.4G 4-Zone RF Wireless RGB + CCT Smart Touch Panel Remote

This product is brand new and high quality. It can provide a secure, facilitate and low-cost solution for LED lighting projects. It has superior materials and exquisite workmanship, easy and convenient to use and install.

Model：B4

Wall Mounted 2.4G 4-Zone RF Wireless RGB + CCT Smart Touch Panel Remote

Summary:

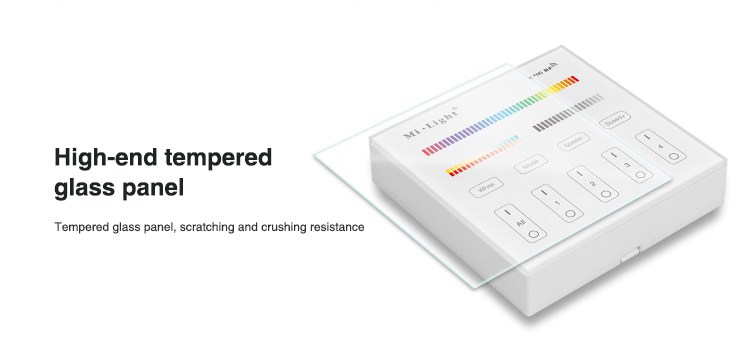

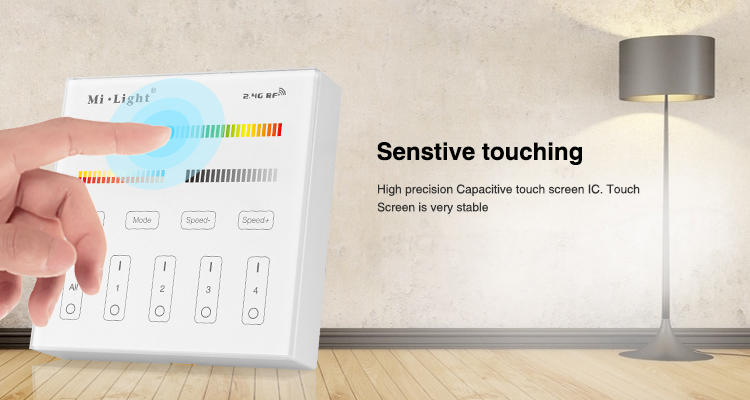

Smart Panel Remote Controller is a newly developed remote controller. This Panel remote controller is designed by a delicate and fashionable tempered glass panel; And we adopt a high precision Capacitive touch screen IC. Touch Screen is very stable; 2.4GHz high RF wireless control with long distance controlling, low power consumption and high speed transmitting rate.

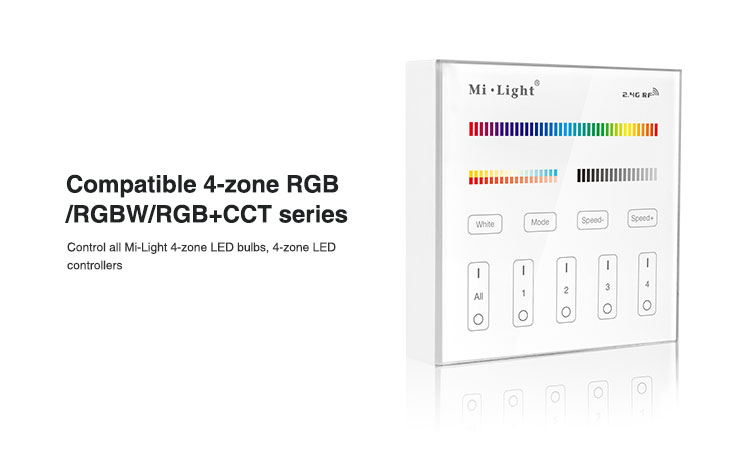

This product has T series and B series, and the difference is the method of power supplying. Both series have 4 kinds: T1/B1 4-zone dimmable panel remote controller; T2/B2 CCT 4-zone panel remote controller; T3/B3 4-zone RGB/RGBW panel remote controller; T4/B4 4-zone RGB+CCT panel remote controller. This product widely work on our smart LED Lighting, LED Controller and Smart panel controller, etc.

Specifications:

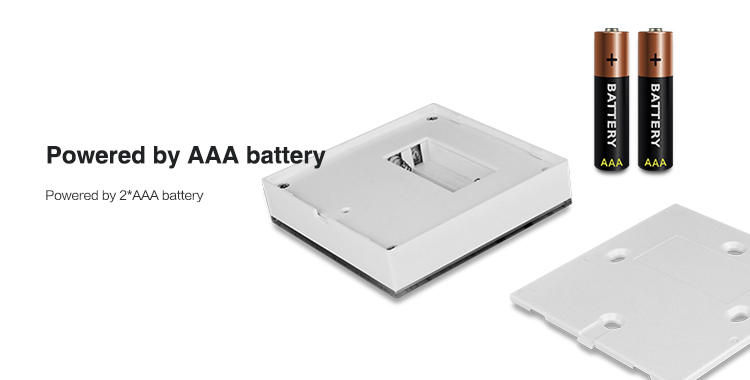

Working Voltage	AAA*2
Working Temperature	-20 -60℃

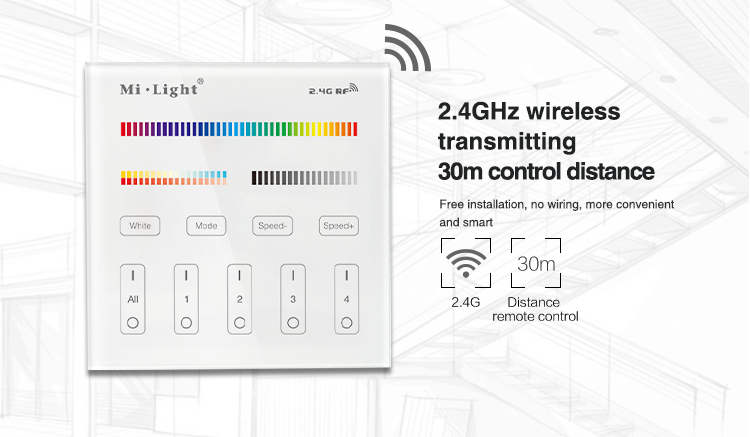

Transmission Frequency	2400-2483.5MHz
Modulation Method	GFSK
Transmitting Power	6dBm
Control Distance	30m
Standby Power	20uA
Product size	86x86mm

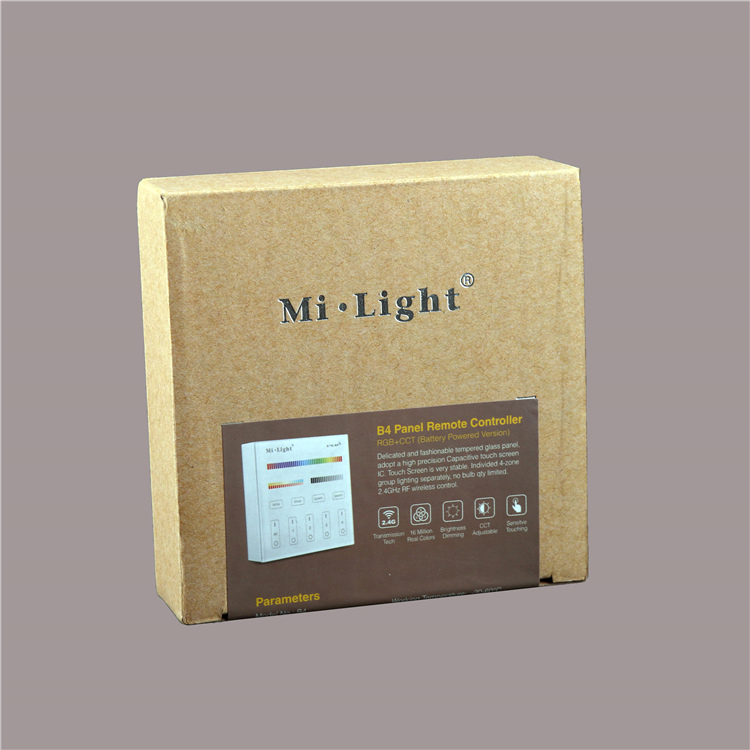

Package size& net weight	1PC/box, 111x111x32mm, 0.185kg
Carton size & gross weight	100pcs/carton, 572x456x167mm, 19.5kg
Function	Remote control of FUT037/FUT038/FUT039
Warranty	2 years
